Alternative Energy Micro Hydroelectric Generator , Dam Turbine Generator Yellow Color
Alternative Energy Micro Hydroelectric Generator , Dam Turbine Generator Yellow Color
Alternative Energy Micro Hydroelectric Generator , Dam Turbine Generator Yellow Color
Alternative Energy Micro Hydroelectric Generator , Dam Turbine Generator Yellow Color
Specifications
Brand Name :
Forster
Model Number :
HL240C-WJ
Certification :
CE/TUV/ISO9001/From-E
Place of Origin :
Sichuan, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
120days
Packaging Details :
wood box
Frequency :
50Hz/60Hz
Insulation class :
F/F
Governor: :
High Hydraulic Microcomputer Governor
Control system :
Automation Control System
Keyword :
Francis Turbine Generator
Port :
shanghai/shenzhen
Valve :
Butterfly valve / gate valve
Voltage :
380v,400v
Design head :
16-45m
Design flow :
400kw-15mw
Description

Fully Automated Equipment Alternative Energy Micro Hydroelectric Generator For Hpp

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features :

Francis turbine is a kind of counter-attack turbine, invented by American engineer Francis in 1849, also known as Francis turbine, or radial flow turbine. Water flows radially into the runner, and then flows out approximately axially. The runner consists of a crown, a ring and a blade.

Francis turbine has wide application head (about 20-700m), simple structure, stable operation and high efficiency, and is the most widely used type of turbine in modern times. The unit with a single capacity of 700 mw is put into operation in three gorges, and xiangjiaba adopts 800 mw mixed-flow unit.

Product parameters:

HL-WJ-Francis tubine generator unit Generator Gevernor or Regulating work Valve
Turbine
Type Water head(m) Discharge (m³/s) Speed (r/min) Power(kw) Efficiency(%)
HL240C-WJ-50 15 1.43 600 183 86.9 SFW160-10/740 YT-3000 Z941H-6Dg800
17 1.53 600 219.6 86.2 SFW200-10/740
20 1.64 750 280.9 87.1 SFW250-8/740
23 1.77 750 348.3 87 SFW320-8/850
27 1.92 750 438.4 86.1 SFW400-8/850
30 2.03 750 509.9 85.5 SFW500-8/850
36 2.21 1000 680.6 87.2 SFW630-8/990
40 2.34 1000 799.8 87.1 SFW800-6/1180
HL240C-WJ-60 13 1.91 500 213.4 87.7 SFW200-12/850 YT-3000 PDF6-WDDg1000
15 2.06 500 265.7 87.5 SFW250-12/850
18 2.25 600 349 87.5 SFW320-10/990
21 2.43 600 438.6 87.8 SFW400-10/990
24 2.61 600 534 86.9 SFW500-10/990
28 2.8 750 673 87.5 SFW630-8/990 YT-6000
32 2.99 750 816.6 86.9 SFW800-8/990
37 3.24 750 1023.4 87 SFW1000-8/990
40 3.37 750 1143.8 86.5 SFW1000-8/990
HL240C-WJ-71 18 3.14 500 489.6 88.2 SFW500-12/990 YT-3000 PDF6-WDDg1200
22 3.5 500 658.6 87.2 SFW630-12/1180
26 3.78 600 850 88.2 SFW800-10/1180
30 4.06 600 1051.1 88 SFW1000-10/1430
34 4.35 600 1268.1 87.3 SFW1250-10/1430
38 4.6 600 1498.4 87.4 SFW1600-10/1430
HL240C-WJ-84 17 4.3 375 634 88.3 SFW630-16/1430 YT-6000 PDF6-WDDg1250
20 4.67 375 799.9 87.3 SFW800-16/1430
24 5.12 428.6 1058.8 87.9 SFW1000-14/143 YT-10000
28 5.49 500 1338.7 88.8 SFW1250-12/1430
32 5.91 500 1631.9 88 SFW1600-12/1730 YT-18000
37 6.35 500 2005.9 87 SFW2000-12/1730
HL240C-L(W)J-100 20 6.48 300 1106.9 87 SF1000-20/2150 YT-10000 Or YWT-10000 YWT18000 PDF6-WYDg1250
25 7.4 375 1608 88.6 SF1600-16/2600
30 8.1 375 2070.7 86.8 SF2000-16/2600
34 8.63 428.6 2544 88.4 SF2500-14/2600
38 9.06 500 3016.6 89.3 SF3200-12/2600
HL240C-LJ-120 18 9.04 250 1389 87 SF1250-24/2600 YT18000 YWT18000 PDF60-WYDg175
22 9.93 300 1907.1 89 SF2000-20/2600
25.5 10.76 300 2369.1 88 SF2000-20/2600
29.5 11.58 333.3 2961.3 88.4 SF2500-18/2600 YT30000 YWT-30000
33.5 12.34 375 3607.9 89 SF3200-16/2600

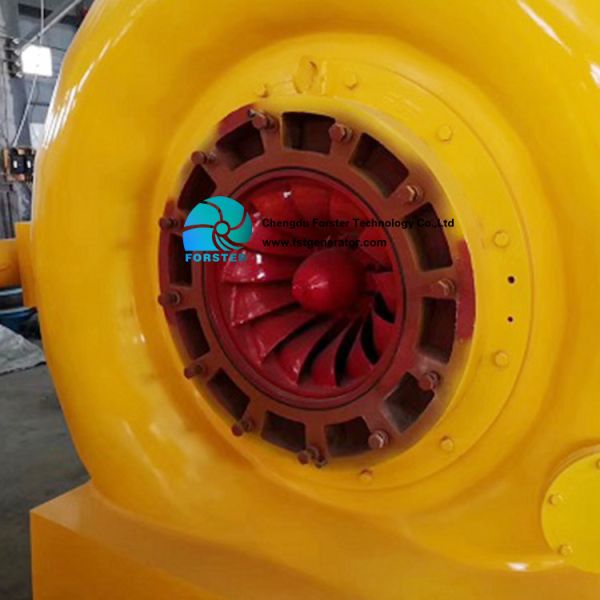

Product pictuers:

Alternative Energy Micro Hydroelectric Generator , Dam Turbine Generator Yellow ColorAlternative Energy Micro Hydroelectric Generator , Dam Turbine Generator Yellow Color

Installation design drawings:

Alternative Energy Micro Hydroelectric Generator , Dam Turbine Generator Yellow Color

Company Information

Our Workshop:

Advantages:

Packaging & Shipping

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website:www.fstgenerator.com
