High Efficiency Customized Pelton Turbine Generator With Stainless Steel Runner
High Efficiency Customized Pelton Turbine Generator With Stainless Steel Runner
High Efficiency Customized Pelton Turbine Generator With Stainless Steel Runner
High Efficiency Customized Pelton Turbine Generator With Stainless Steel Runner
High Efficiency Customized Pelton Turbine Generator With Stainless Steel Runner
High Efficiency Customized Pelton Turbine Generator With Stainless Steel Runner
Specifications
Place of Origin :
Sichuan, China (Mainland)
Brand Name :
forster
Model Number :
CJA237/475-W-70/1*7
Supply Ability :
25 Piece/Pieces per Month
Packaging Details :
wooden box
MOQ :
1 Unit/Units
Price :
Negotiable
Certification :
CE/TUV/ISO9001/From-E
Payment Terms :
L/C, T/T
Delivery Time :
120days
water head :
220m
flow rate :
0.243m3/s
output :
440
Design speed(r/min) :
750
Certificate :
ISO9001/CE/TUV
Efficiency :
85%-93%
Material :
Stainless Steel Runner
Warranty :
18 Months
Diameter(mm) :
630
keyword :
hydro generator pelton turbine
Port :
shanghai/shenzhen
Description

High Efficiency Customized Hydro Generator Pelton Turbine For Hpp

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features:

1. Suitable for high head,small flow and flow changes in large runoff dropower station;

2. With the power plant investment is small,compact units structure characteristics;

3. Has the efficiency changes smoothly,opersting a wide range,even in the 15%-20% load is reduced efficiency;

4. Suitable for high head,small flow station in mountainous area;

5. A unit constatraction,simple restaction without cavitation condtion,the advantages of stable operation,less investment,constucion area.

Product parameters:

Pelton tubine generator unit Generator Unit output (kw) Gevernor or Regulating work Valve
Turbine
Type Water head(m) Discharge (m³/s) Output(kw) Speed (r/min) Type Capacity (kw)
CJA237/475-115/1 x 9 400 0.54 1821 750 SFW1600-12/1430 1600 CJW-I BWT-6000 DN400
420 0.56 1973 SFW1600-10/1430 1600
440 0.57 2121 SFW2000-10/1430 2000
460 0.58 2267 SFW2000-10/1430 2000
480 0.59 2415 SFW2000-10/1430 2000
500 0.61 2564 SFW2500-10/1430 2500
CJA237/475- W-115/1 x 12.5 100 0.53 435 375 SFW400-16/1180 400 162.9 CJWT- I BWT-6000 DN400
120 0.58 578 SFW500-16/1180 500 185.8
140 0.62 728 428.6 SFW630-14/1430 630 209.3
160 0.66 888 SFW800-14/1430 800 235.1
180 0.7 1047 SFW1000-14/1430 1000 260.2
200 0.74 1242 500 SFW1250-12/1730 1250 287.4
220 0.78 1430 SFW1250-12/1730 1250 320.1
240 0.81 1619 SFW1600-12/1730 1600 345.5
260 0.85 1828 600 SFW1600-10/1730 1600 456
280 0.88 2057 SFW2500-10/1730 2500 610
300 0.91 2283 SFW2500-10/1730 2500 770
CJA237/475-W-125/1 x 9 310 0.481 1250 600 SFW1250-10/1430 1250 1186.3 CJWT- I BWT-6000 DN400
340 0.504 1449 SFW1250-10/1430 1250 1366.4
370 0.526 1644 SFW1600-10/1430 1600 1561.8
400 0.547 1835 SFW1600-10/1430 1600 1743.3
430 0.567 2033 SFW1600-10/1730 1600 1933.4
460 0.586 2269 750 SFW2000-8/1730 2000 2178.2
490 0.605 2501 SFW2500-8/1730 2500 2401
520 0.625 2748 SFW2500-8/1730 2500 2638.1
550 0.641 2981 SFW2500-8/1730 2500 2861.8
580 0.658 3219 SFW3200-8/1730 3200 3090.2
610 0.675 3413 SFW3200-8/1730 3200 3276.2
640 0.693 3652 SFW3200-8/1730 3200 3505.9
670 0.708 3918 SFW4000-8/1730 4000 3769.1
700 0.723 4170 SFW4000-8/1730 4000 4017.6
CJA237/475-W-125/1 x 14 150 0.81 993 SFW1000-14/1430 1000 BWT-6000 DN500
170 0.86 1213 428.6 SFW1250-14/1430 1250
190 0.91 1434 SFW1250-14/1430 1250
210 0.95 1652 SFW1600-12/1730 1600
230 1 1909 SFW1600-12/1730 1600
250 1.04 2163 500 SFW2000-12/1730 2000
270 1.08 2417 SFW2000-12/1730 2000
290 1.12 2671 SFW2500-12/1730 2500
310 1.16 2970 SFW2500-12/1730 2500
330 1.19 3278 600 SFW3200-10/1730 3200
350 1.23 3588 SFW3200-10/1730 3200
CJA237/475- W-140/1 x12.5 207 0.75 1358 428.6 SFW1250-14/1730 1250 CJWT- I BWT-6000 DN500
244 0.82 1728 SFW1600-14/1730 1600
281 0.88 2147 500 SFW2000-12/1730 2000
327 0.94 2686 SFW2500-12/1730 2500
386 1.03 3441 600 SFW3200-10/1730 3200

Product pictures:

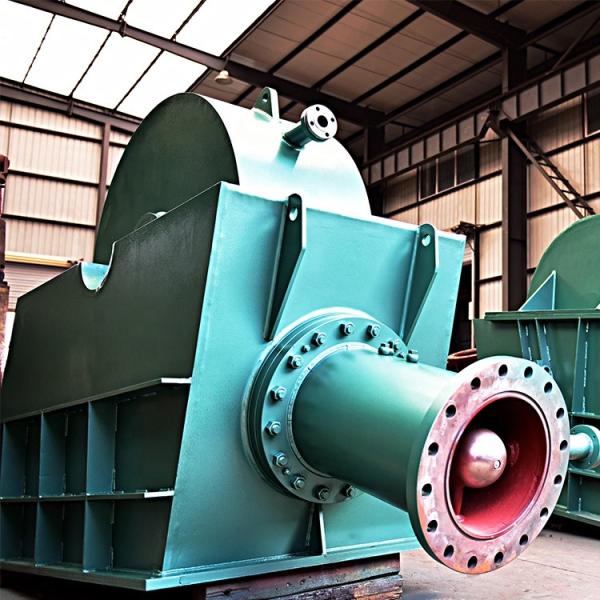

High Efficiency Customized Pelton Turbine Generator With Stainless Steel Runner

High Efficiency Customized Pelton Turbine Generator With Stainless Steel RunnerHigh Efficiency Customized Pelton Turbine Generator With Stainless Steel Runner
Company Information

Our workshop

Advantages

Packaging & Shipping

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.
