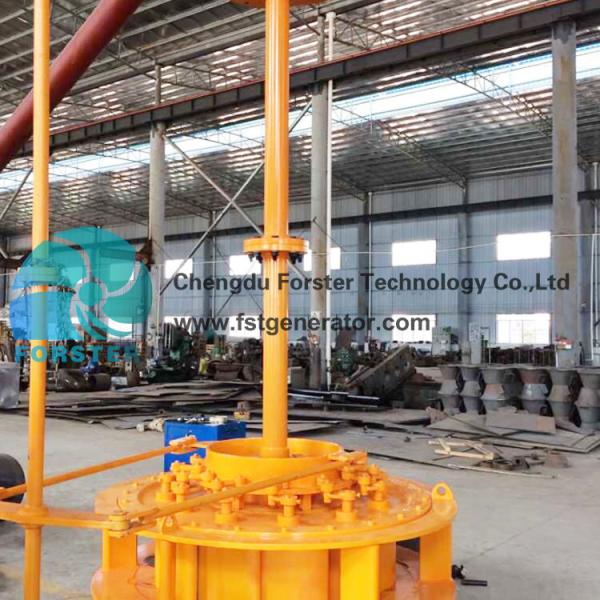

Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw
Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw
Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw
Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw
Specifications
Place of Origin :
Sichuan, China (Mainland)
Brand Name :
forster
Model Number :
ZD760-LM-40
Supply Ability :
20 Set/Sets per Month
Packaging Details :
wooden box
MOQ :
1 Set/Sets
Price :
Negotiable
Certification :
CE/TUV/ISO9001/From-E
Payment Terms :
L/C, T/T
Delivery Time :
120days
water head :
2.2m-6m
Flow Rate :
1.76-3.54m3/s
the output :
33.5-174kw
design speed(r/min) :
334-500r/min
Generator type :
SF18-6/423
power :
20-160kw
Rated speed :
400r/min
Certificate :
CE,TUV,ISO9001
Keyword :
kaplan turbine generator
Port :
shanghai/shenzhen
Description

Automatic Control Automatic Protection Stable Output Kaplan Turbine Generator For Mhpp

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features:

The axial propeller turbine was invented by the Austrian engineer caplan in 1920, so it is also known as the caplan turbine.

Its runner blade is generally installed in the runner body of the oil pressure relay operation, according to the head and load changes for the corresponding rotation, in order to maintain the optimal coordination between the rotation Angle of the guide blade and blade Angle, thereby improving the average efficiency, the highest efficiency of some of this kind of turbine has more than 94%. However, this kind of turbine needs a mechanism to operate the blade rotation, so the structure is more complex and the cost is higher, and it is generally used for large and medium-sized hydropower stations with large changes in head and output.

Kpalan turbine runner consists of three parts: runner blade, runner hub and drain cone.

1. Suitable for the development of low water head (2-30m) larger flow of water resources;

2. Appliceable to large and small head change load changes of power plant;

3. For the low head,head and power changed greatly power station,can stably under various working conditions;

4. This machine is a vertical shaft device,has the advantages of simple structure,convenient repair,equipment,low price,easy to realize the direct drive etc.

Product features:

Turbine parameters Generator parameters Other detailed parameters
Model Design head(m) Under the design head Design speed(r/min)

power

(kw)

rated speed

(r/min)

runaway

speed(r/min)

For other detailed parameters and requirements, please consult the business personnel

traffic

(m/s)

 the output(kw)

ZD760-LM-40

Turbine performance data

 3 0.51 12.6 779 10 750 1500
3.5 0.56 16.2 840 12 750 1500
4.5 0.65 24.1 1000 18 1000 2000
5.5 0.67 3.6 1000 26 1000 2000
2.9 0.57 13.2 724 10 750 1500
3.4 0.62 16.8 784 12 750 1500
4.3 0.69 23.9 880 18 1000 2000
5 0.77 30.7 1000 26 1000 2000
5.5 0.78 34.6 997 26 1000 2000
6 0.82 39 1041 40 1000 2000
2.8 0.62 12.6 711 10 750 1500
3.2 0.66 16.4 760 12 750 1500
4.2 0.76 24.7 870 20 750 1500
4.9 0.87 32 1000 26 1000 2000
5.8 0.93 39.6 1023 40 1000 2000

Product pictures

Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kwAutomatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw

Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw

Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw

Company Information

Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw

Advantages

Our workshop

Automatic Control Stable Output Kaplan Turbine Generator For Mhpp 20-160kw

Packaging & Shipping

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.
