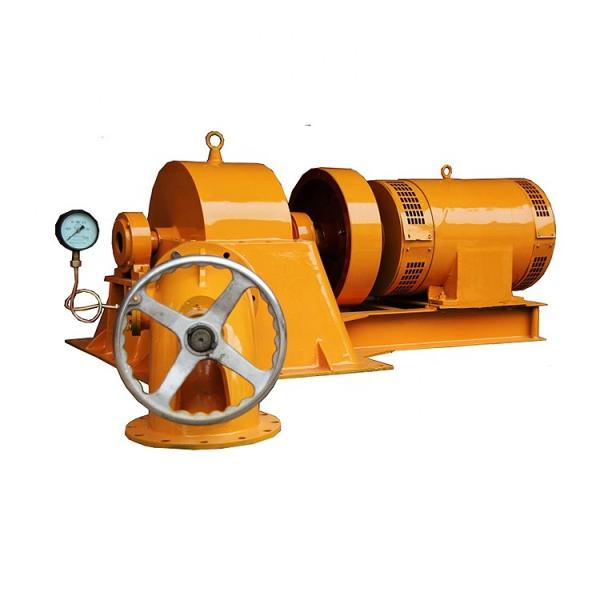

Metal Volute Inclined High Head Water Turbine Generator Easy To Install
Metal Volute Inclined High Head Water Turbine Generator Easy To Install
Metal Volute Inclined High Head Water Turbine Generator Easy To Install
Metal Volute Inclined High Head Water Turbine Generator Easy To Install
Specifications
Place of Origin :
Sichuan, China (Mainland)
Brand Name :
forster
Model Number :
XJ02-W-50/1*11
Supply Ability :
20 Set/Sets per Month
Packaging Details :
wooden box
MOQ :
1 Set/Sets
Price :
Negotiable
Certification :
CE/TUV/ISO9001/From-E
Payment Terms :
L/C, T/T
Delivery Time :
120days
Water head(m) :
45
Flow Rate(m3/s) :
0.271
the output(kw) :
96.7
design speed(r/min) :
537
power(kw) :
75
rated speed(r/min) :
600
runaway speed9r/min) :
1080
model :
XJ02-W-50/1*11
certificate :
CE,TUV,ISO9001
Keyword :
turgo turbine generator
Port :
shanghai/shenzhen
Description

Easy To Install And Easy To Install Stainless Steel Runner Metal Volute Inclined Hydro Turbine Generator For Sale

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features:

When the slanting turbine is working, the water flows from the pressure water pipe through the nozzle to form a high-speed jet, and the jet and the runner plane impact the rotor blade in a 22.5° direction. After the work is done, the Water flows out from the water outlet of the vanes and drains along the tail water channel to the downstream.


In order to ensure free flow of the jet, the turbine runner must be installed above the water level of the tailrace, and the runner should be no less than 0.5m from the water level of the tailrace.


Water energy is converted into mechanical energy
The operating parameters describing the turbine are head (H meters), the operating parameters describing the turbine are head (H meters), the parameters describing the water energy are head (H meters) and flow rate (Q meters 3 / sec). Flow rate (Q meters 3 / sec), power (N kW), speed (n rev / min) and efficiency (η%).


The water flow hits the vane, and the vane changes the direction of the water flow, that is, the force of the vane feed water. According to the law of action reaction, the water flow gives a reaction force to the vane. The vanes to rotate around the axis, which drives the generator or other processing machinery. This is the process by which water can be converted into mechanical energy.

1. Horizontal unit has the advantages of simple structure,convenient repair,reduce the plant height,advantages in reducing excavation depth.

2. The vertical unit with plant plane size small,a runner can be provided with a plurality of nozzles,(at most can be installed six nozzles),high specific speed,the same size as units of capacity is relatively small,light weight and so on.

Product features:

XJ02-W-50/1 x 11 turbine performance data and supporting table
Model Turbine Parameters Generator Parameters Driving mode Speed Way Water Intake
Design head(m) Under the design head Design speed (r/min) The power of generator The runaway speed Rated speed(r/min) manually automatic Model dianeter
Flow rate (m3/s) The output(kw)
XJ02-W-50/1 x 11 45 0.271 96.7 537 75 600 1080 direct connection manually YTT-35 Z4.H-1.6C 350
50 0.286 113.2 566 100 600 1080 // // " 〆/ "
55 0.296 130.6 593 125 600 1080 // // // // //
60 0.313 148.9 620 125 600 1080 // // // // //
65 0.326 167.9 645 160 600 1080 // // // // //
70 0.338 187.6 669 160 600 1080 // // // // //
75 0.35 208.1 693 200 600 1080 // // // // //
80 0.361 229.2 716 200 600 1080 // // // // //
85 0.372 251.1 738 250 750 1350 // // // // //
90 0.383 273.5 759 250 750 1350 // // // // //
95 0.394 296.6 780 250 750 1350 // // // // //
100 0.404 320.4 800 320 750 1350 // // // // //
110 0.424 269.6 839 320 750 1350 // // // // //
120 0.443 421.2 876 400 750 1350 // // // // //

Product pictuers:

Metal Volute Inclined High Head Water Turbine Generator Easy To InstallMetal Volute Inclined High Head Water Turbine Generator Easy To InstallMetal Volute Inclined High Head Water Turbine Generator Easy To Install

Company Information

Our workshop

Advantages

Packaging & Shipping

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website address: www.fstgenerator.com
