Specifications
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
WS-601SS2
Product name :
Automatic steel stainless precipitation sensor rain gauge
Inner Diameter :
200mm(8 inch) ±0.3%
Resolution :
0.2mm
Measuring range :
4mm/min
Accuracy :
±≤ 4%
Operating Temperature :
-10℃~50℃
Material :
Stainless steel 304
Weight :
3.8kg
Packaging Details :
Box
Port :
Tianjin
Supply Ability :
2000 Piece/Pieces per Week
Price :
$128.00/pieces 1-9 pieces
MOQ :
1 piece
Description
Please Attension
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.

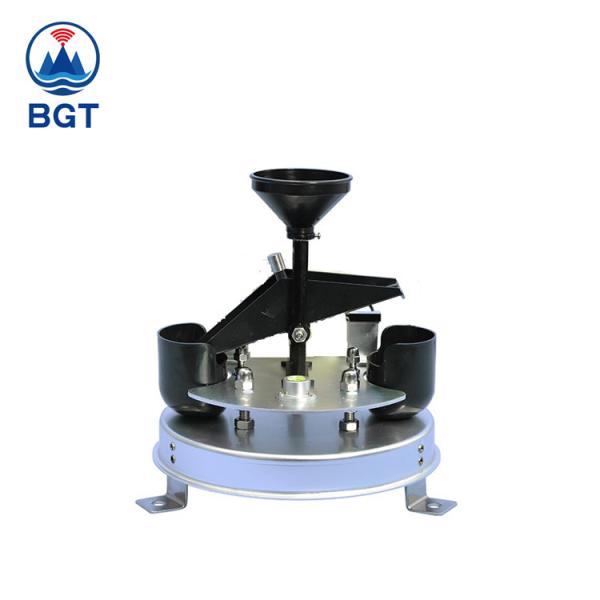

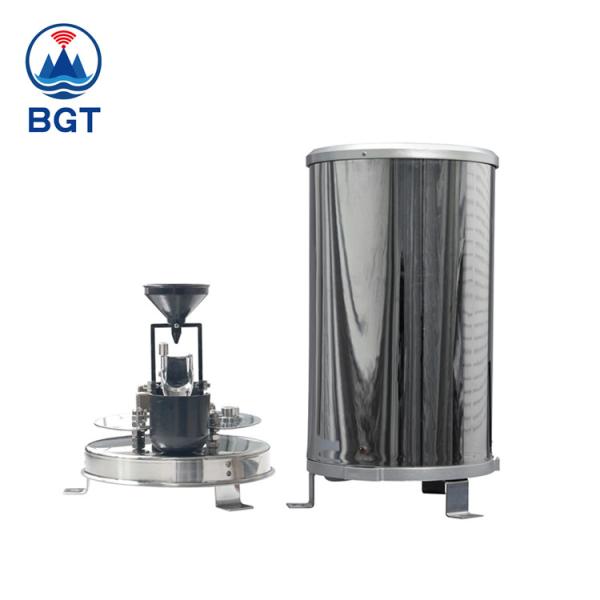

WS-601SS2 Automatic steel stainless precipitation sensor rain gauge

The Model WS-601SS2 Tipping Bucket Rain Gauge was designed for the National Weather Service to provide a reliabl, low-cost tipping bucket rain sensor. It has been update and improved with the additionof an inner funnel to even the flow of the railfall into the gauge, providing better accuracy at higher rainfall rates. It simplicity of esign assures trouble-free opertaion , yet provide accurate rainfall measurement . And this kind of rain gauge also can provide you the data logger feature and temperature.

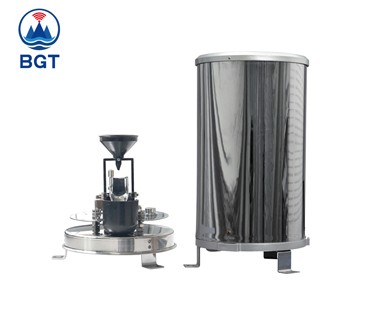

10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel

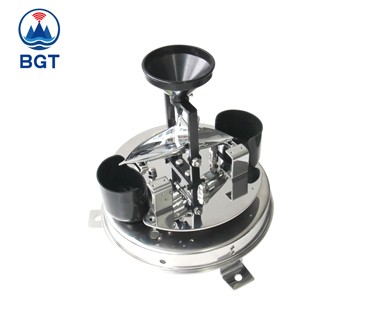

10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
Products Parameters
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
Type
WS-601SS2
Acute angle of cutting edge
40°~45°
Inner diameter
200mm/8 inch ±0.3%
Resolution
0.2mm
Measuring range
4mm/min
Accuracy
≤±4%
Material
304 Stainless steel
Working humidity
0%~95%RH
Operating Temperature
-10℃~50℃
Insect protection
Steel stainless Mesh
Output
Reed witch, 5 pulse/mm (MaxDC 24V, 100mA)
Discharge Control
Straight through flow mechanism
Level Control
Bull-eye level fitted on base
Base
Polished steel stainless 304
Mounting holes
Three mountings
Weight
3.8kg
Packing size
300*300*500(mm)
Appliction
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
Company Profile
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
EXS&CES
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
Produce &Package
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
10C-50C Precipitation Sensor Rain Gauge with Inner Diameter 200mm 8 inch Stainless Steel
Advantages& FAQ

Why Choose Us

◆8 years in hydrology and meteorology wireless communication industryAutomatic steel stainless precipitation sensor rain gauge
◆Apply in more than 50 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation

FAQAutomatic steel stainless precipitation sensor rain gauge


Q1. Can I have a sample order ?Automatic steel stainless precipitation sensor rain gauge

A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q2. What about the lead time?Automatic steel stainless precipitation sensor rain gauge

A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3. Do you have any MOQ limit?Automatic steel stainless precipitation sensor rain gauge

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Automatic steel stainless precipitation sensor rain gauge

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.Automatic steel stainless precipitation sensor rain gauge

Q6. Is it OK to print my logo on the products?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?Automatic steel stainless precipitation sensor rain gauge

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
