WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
Specifications
Warranty :
1year
Customized support :
OEM, ODM
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
WS-601SS5
Product name :
Tipping bucket rain gauge
Inner Diameter :
200mm(8 inch)
Resolution :
0.5mm; Optional:0.1mm/0.2mm
Measuring range :
≤4mm/min
Accuracy :
±≤ 4%
Output :
Pulse; RS485 (Optional)
Operating Temperature :
-10℃~50℃
Material :
Steel stainless
Weight :
3.5kg
Packaging Details :
CARTON
Price :
$92.70/sets 1-49 sets
MOQ :
1 piece
Description
Please Attention
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
Product Description


WS-601SS5 Tipping Bucket Rain Gauge ( rain sensor )

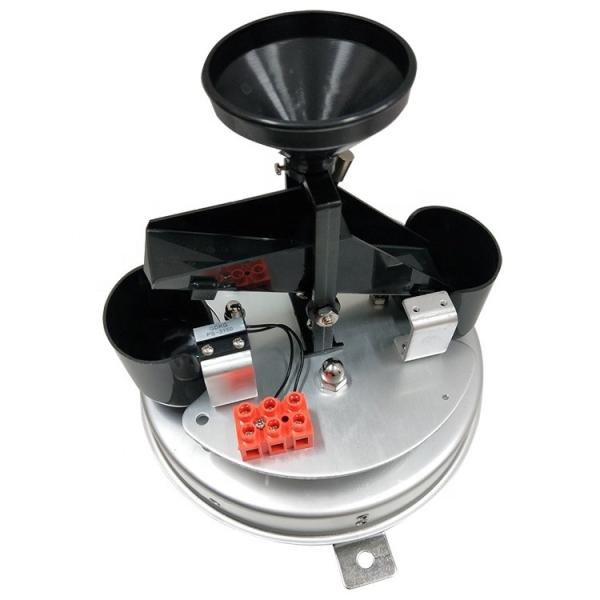

Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.

WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Features

WMO standard bucket's top diameter (200mm/8")

High Accuracy

Good stability

Low resistance

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom


Application

Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

Smart Agriculture

WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Calibration Certification

WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

CE


WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

ISO9001


WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

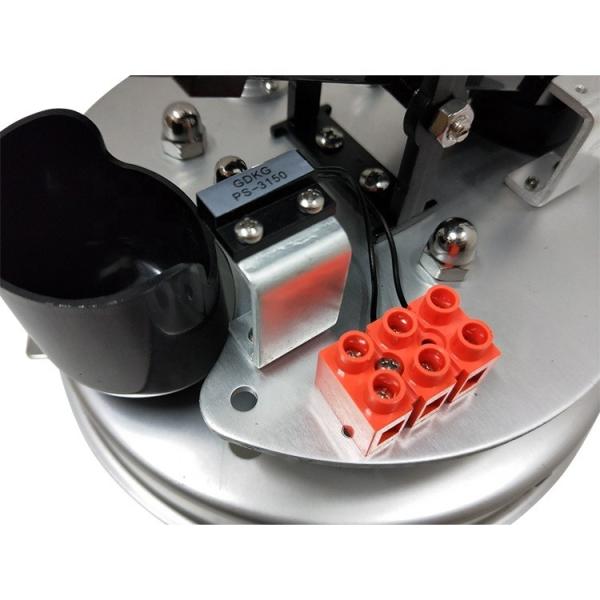

1.Enclosure assembly (Body)

2.Funnel

3.Bracket

4.Tips

5.Reed switch

6. Discharge holder


7. Mounting foot


8. Bull-eye Level

WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
Type
WS-601SS5
Material
Steel stainless(Boday)
Tipping Bucket
Black ABS (plastic)
Measuring range
0~8mm/min
Accuracy
±≤ 3%(≤ 250mm/hr); ±≤ 4% (≤300mm/hr);
Resolution
0.5mm (15.7cc)
Inner diameter
200mm/8inch ±0.3%
Acute angle of cutting edge
40~45°
Insect protection
Steel stainless Mesh
Output
Standard Pulse(Reed switch, 2pulse/mm);
RS485 optional (RS485 Price will be higher)
Power supply
Pulse : MaxDC24V,100mA ;
RS485: DC5V or DC 7-24V
Level control
Bulls eye level adhered
Base
Diecast aluminium
Mounting holes
Three mountings
Discharge control
Straight through flow mechanism
Working temperature
-20～80℃
Working humidity
0%~95%RH
Weight
3.3Kg
Packing Size
31*31*46cm

Note:

The price is for standard pulse output, if you need RS 485 output , please ask us.

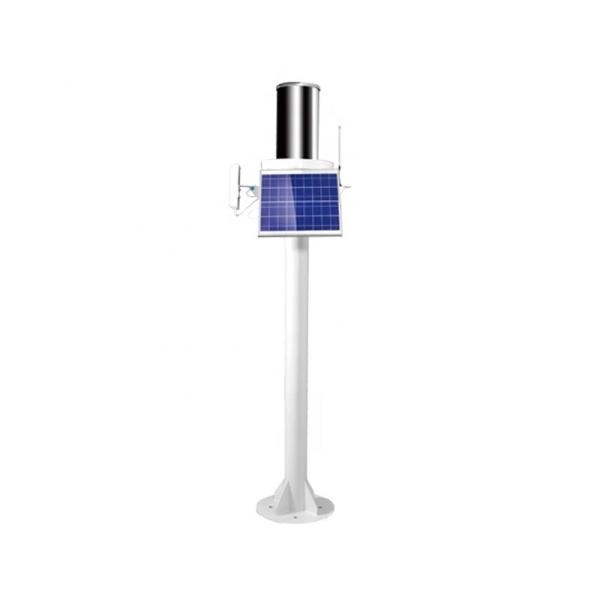

Appliction
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
Related Products
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Wind sensor

WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Atomospheric sensor

WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Solar radiation sensor

WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station

Weather Station Soil Moisture Sensor

Our Factory
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
WS-601SS5 0.5mm Stainless Steel Tipping Bucket Rain Gauge for Outdoor Weather Station
Advantages& FAQ

Why Choose Us

◆10 years in hydrology and meteorology wireless communication industry
◆Apply in more than 70 countries & areas
◆Certificated completed
◆Millions of terminals on-line
◆Strong R&D team, senior staff more than 60
◆Support OEM/ODM cooperation

FAQ


Q1: Are you factory or trading company?

A: Yes, We are factory. We design, develop and produce products all by ourselves.

Q2: Can I have a sample order?

A: Yes, sample order for testing is acceptable before bulk order.

Q3. Do you have any MOQ limit?

A: Low MOQ, any order quantity is welcome.

Q4: What about the lead time?

A:Sample order: 3-5working days; bulk order:15-20 working days

Q5: How do you ship the goods?

A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.

Q6: Is it OK to print my logo on the products?

A: Yes, we support OEM/ODM service.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: Can I visit your company before placing orders to you?

A: Yes, warmly welcome to visit our company.

Q9: How is the quality of your goods?

A: We make a commitment to sell excellent quality goods to our customers. Should there be any problems with our products, we can send free replacement in the next order upon picture and video confirmation.
