Specifications
Warranty :
1YEAR
Customized support :
OEM, ODM
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
WS-601ABS5
Product name :
Tipping bucket rain gauge
Inner Diameter :
200mm(8 inch)
Resolution :
0.5mm(15.7cc) ; optional 0.2mm
Measuring range :
≤4mm/min
Accuracy :
±≤ 4%
Operating Temperature :
-10℃~50℃
Material :
PC and ABS mixed
Output :
Pulse; RS485 optional
Packaging Details :
box
Price :
$56.80/pieces 1-9 pieces
MOQ :
1 piece
Description
Please Attention
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
Product Description

WS-601SS2 Tipping Bucket Rain Gauge ( rain sensor )

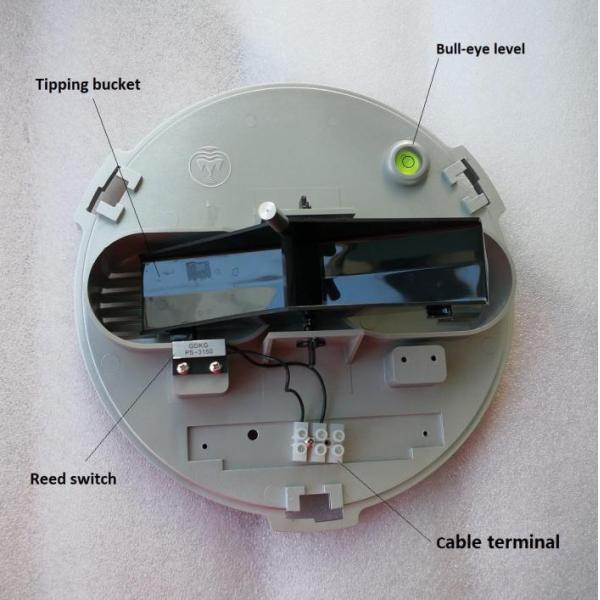

Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.

Features

WMO standard bucket's top diameter (200mm/8")

High Accuracy

Good stability

Low resistance

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom


Application

Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

Smart Agriculture

0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring

Calibration Certification

0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring

CE


0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring

ISO9001


0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring
0.5mm Plastic Tipping Bucket Rain Gauge for Weather Station and Agriculture Monitoring

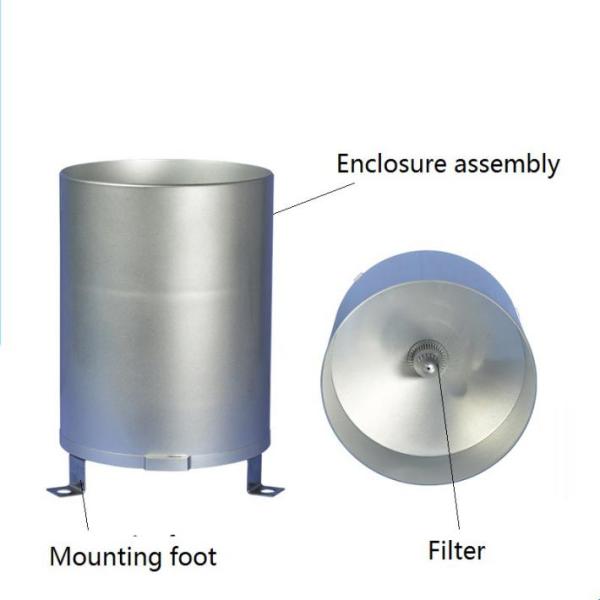

1.Rainfall collector

2.Filter

3.Enclosure assembly

4.Tipping bucket (ABS material)

5.Bull-eye level

6.Mounting foot

7.Base
Item no.
WS-601ABS5
Acute angle of cutting edge
40°~45°
Name
Tipping bucket rain gauge ( rain sensor )
inner diameter
Φ200+0.6mm
Single -tip
0.5mm
Measuring range
4mm/min
Accuracy
±≤ 4% (≤4mm/min);
Output
Pulse; RS485(optional)
Material
ABS + PC
Humidity
95%
Operating Temperature
-10℃~50℃
Level Control
Bull-eye level fitted on base
Mounting holes
Three mountings
Weight
2.1kgs
Height
283mm + 38mm(mounting foot height)
