Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Specifications
Warranty :
1year
Customized support :
OEM
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
WS-601SS2
Name :
tipping bucket rain gauge
Power supply :
Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V
Output :
Standard Pulse(Reed switch, 5pulse/mm); RS485 optional
Accuracy :
±≤ 2%(≤ 1mm/min); ±≤ 4% (≤4mm/min)
Resolution :
0.2mm
Material :
Stainless Steel ( Body, Base)
Working temperature :
temperature -20~80℃
Collector diameter :
200mm ±0.3%
Rainfall capacity :
≤ 4mm/min
Height :
402.2mm
Packaging Details :
cheap rs485 tipping bucket rain sensor Cartons
Port :
tianjin
MOQ :
1 piece
Price :
$128.80 - $149.80/pieces
Description
Please attention
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Product Description
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research

WS-601SS2 Stainless Steel Tipping Bucket Rain Guage

Tipping Bucket Rain Gauge was designed for the National Weather Service to provide a reliable, low-cost tipping bucket rain
sensor. It has been update and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge,
providing better accuracy at higher rainfall rates. It simplicity of design assures trouble-free operation , yet provide accurate
rainfall measurement.
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research

Features

WMO standard bucket’s top diameter (200mm/8”)
High Accuracy
Good stability
Low resistance
Mesh in the funnel preventing debris
Highly polished stainless steel construction
Horizontal Bubble in bottom

Applications

Environmental monitoring
Water supply system
Hydrological monitoring
Natural disaster monitoring
Climate research
Weather monitoring stations
Smart Agriculture
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research

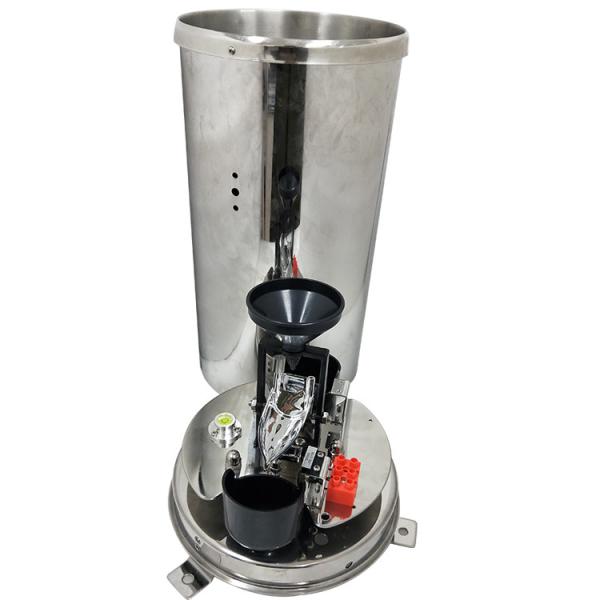

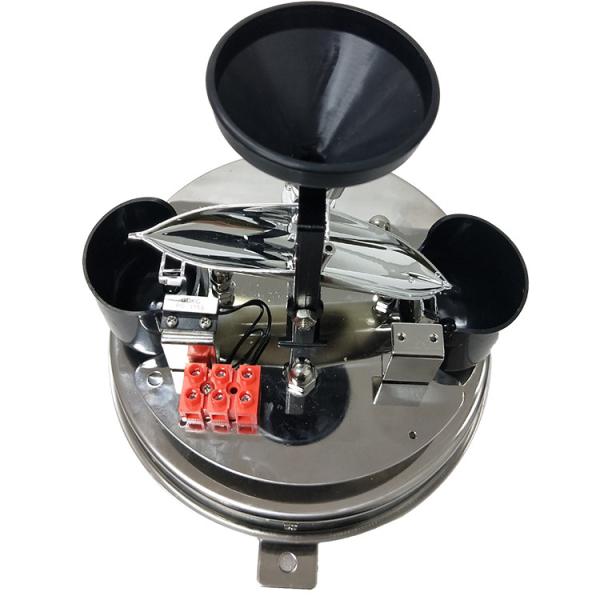

1．Enclosure assembly (Body) 6. Discharge holder
2．Funnel 7. Mounting foot
3．Bracket 8. Bull-eye Level
4．Tips
5．Reed switch
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research

Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Specification
Type
WS-601SS2
Material
Stainless Steel ( Body, Base)
Tips
ABS UV Stabilished plastic bucket
Rainfall capacity
≤ 4mm/min
Accuracy
±≤ 2%(≤ 1mm/min); ±≤ 4% (≤4mm/min);
Resolution
0.2mm
Collector diameter
200mm ±0.3%
Collector area
314cm²
Height
402.2mm
Acute angle of cutting edge
40~45°
Output
Standard Pulse(Reed switch, 5pulse/mm);
RS485 optional
Power supply
Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V
Switch
Rugged Magnetic Proximity
Leveling
Bulls eye level adhered, leveling screw adjust

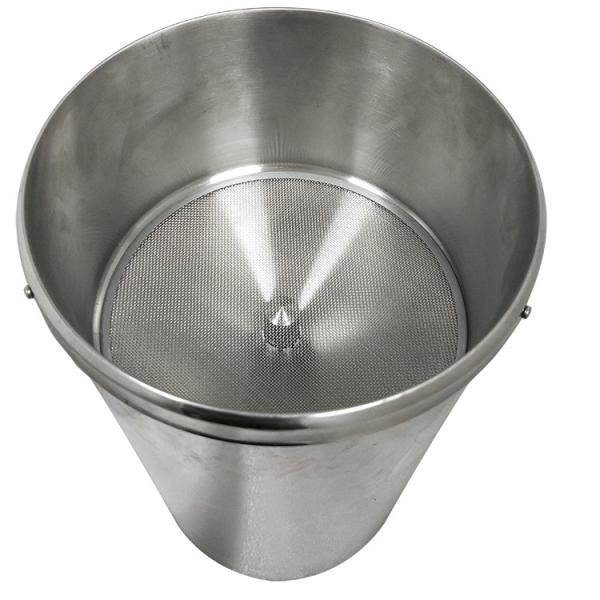

Debris protection filter
Steel stainless Mesh is provided inside the collector
Mounting holes
Three mountings
Discharge control
Straight through flow mechanism
Working temperature
-20～80℃
Installation
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research

1. Use M6 expansion screws fixed on the ground or plate;
2. Adjust leveling according bull-eye level.


Company Profile
As a wholly owned subsidiary of Beijing Guoxinhuayuan Technology Co., Ltd , BGT Technology (Beijing) Co., Ltd. specialized in the import & export business, which is a one-stop emergency solution supplier with production, research and development, sales of emergency supplies, road rescue, fire supplies, flood prevention supplies, Relief supplies, chemical accident emergency treatment, natural disaster monitoring and early warning solutions and other industrial products. Our products have been sold to more than 70 countries. Meanwhile, we have software and hardware R&D department and a team of experts to support customers' program planning and customized services, owned more than 50 patents and 60 software copy rights. We cooperate with disaster prevention experts at home and abroad to plan and implement a number of comprehensive hazards prevention monitoring and early warning projects, and set up a national demonstration base in Changping district, Beijing, China. In line with the professional, innovative, integrity, persistent concept, committed to customers’ demands, to provide customers with a full set of solutions, as well as efficient, timely after-sales service! We would like to become an IoT enterprise serving the field of global disaster prevention and reduction.
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
Temperature Resistant Rain Gauge WS-601SS2 Tipping Bucket Sensor for Climate Research
FAQ
1. who are we?
We are based in Beijing, China, start from 2010,sell to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(10.00%),Oceania(5.00%),Western Europe(3.00%),Eastern Europe(3.00%),Southern Europe(3.00%),Northern Europe(3.00%),South America(2.00%),North America(2.00%),Mid East(1.00%),Africa(1.00%),Eastern Asia(1.00%),Central America(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Rain Gauge,Wind Speed And Direction Sensor,Soil Sensor,Weather Station,Liquid Level Transmitter

4. why should you buy from us not from other suppliers?
BGT is a Hi-tech company with RD, production, marketing, project implementation and after sales more than 10 years. We are focus on providing professional hydrology and meteorology products and solutions which have been sold more than 70 countries .

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
