Specifications
Warranty :
1year
Customized support :
OEM
Place of Origin :
Beijing, China
Brand Name :
BGT, BGT
Model Number :
WS-601SS5
Product name :
Tipping Bucket Rain Gauge
Resolution :
0.5mm
Output :
Standard Pulse(Reed switch, 2pulse/mm); RS485 optional
Measuring range :
0~8mm/min
Accuracy :
±≤ 3%(≤ 250mm/hr); ±≤ 4% (≤300mm/hr)
Material :
Steel stainless
Inner diameter :
200mm/8inch ±0.3%
Working temperature :
-20~80℃
Working humidity :
0%~95%RH
Packaging Details :
Hot Sell Precipitation Sensor Tipping Bucket Rain Gauge for Smart Agriculture Cartons
Port :
tianjin
MOQ :
1 piece
Price :
$92.88/pieces 5-9 pieces
Description
Please attention
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Product Description

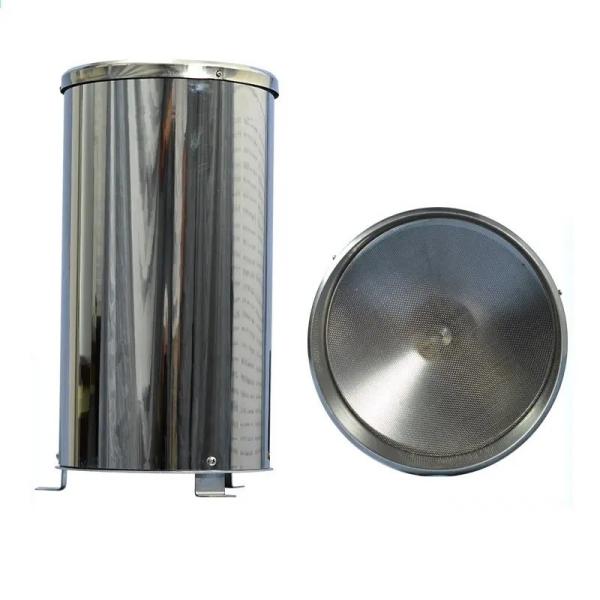

WS-601SS5 Stainless Steel Tipping Bucket Rain Guage

Tipping Bucket Rain Gauge is a durable weather instrument for monitoring rain rate and total rainfall. It has been updated and improved with the addition of an inner funnel to even the flow of the rainfall into the gauge, providing better accuracy at higher rainfall rates. With minimal care it will provide many years of service. The rain gauge is constructed of high impact UV-protected plastic/ stainless steel to provide reliable, low-cost tipping bucket rainfall monitoring. The tipping bucket sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.1mm, 0.2 mm or 0.5mm of rainfall. The rain gauge sensor can be pole mounted or bolted to a level plate.
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C

Features

WMO standard bucket’s top diameter (200mm/8”)

High Accuracy

Good stability

Low resistance

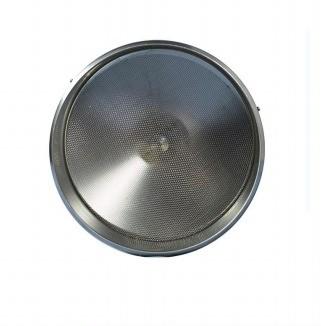

Mesh in the funnel preventing debris

Highly polished stainless steel construction

Horizontal Bubble in bottom



Application

Environmental monitoring

Water supply system

Hydrological monitoring

Natural disaster monitoring

Climate research

Weather monitoring stations

Smart Agriculture




Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C

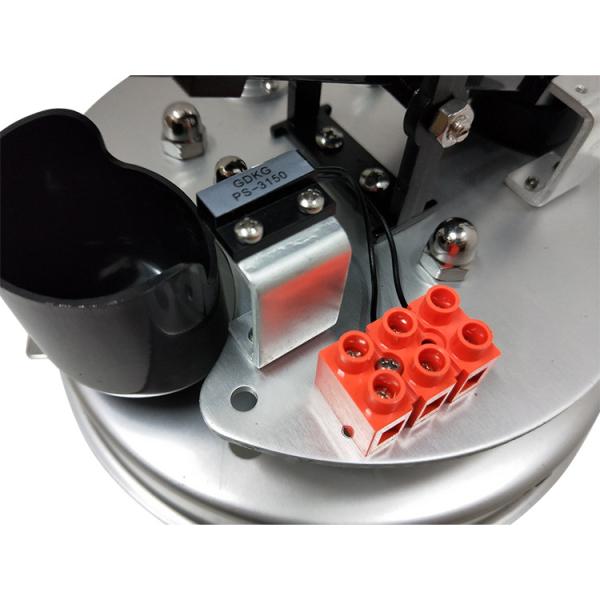

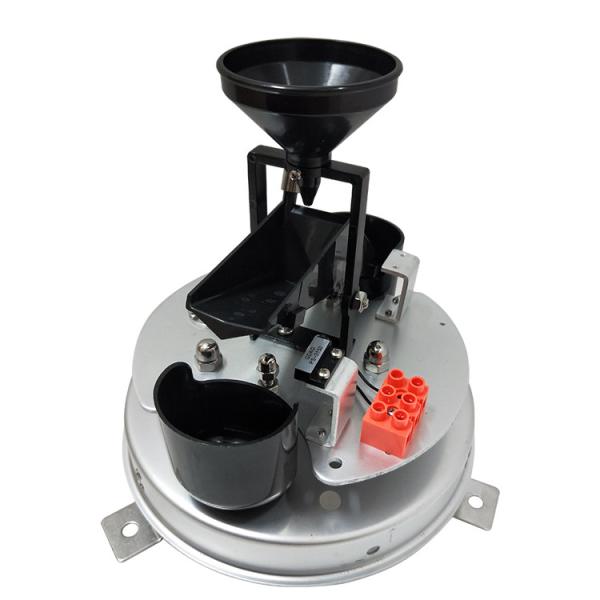

1．Enclosure assembly (Body) 6. Discharge holder

2．Funnel 7. Mounting foot

3．Bracket 8. Bull-eye Level

4．Tips

5．Reed switch
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Specification
Type
WS-601SS5
Material
Steel stainless
Measuring range
0~8mm/min
Accuracy
±≤ 3%(≤ 250mm/hr); ±≤ 4% (≤300mm/hr);
Resolution
0.5mm
Inner diameter
200mm/8inch ±0.3%
Acute angle of cutting edge
40~45°
Insect protection
Steel stainless Mesh
Output
Standard Pulse(Reed switch, 2pulse/mm);
RS485 optional
Power supply
Pulse : MaxDC24V,100mA ;
RS485: DC5V or DC 7-24V
Level control
Bulls eye level adhered
Base
Diecast aluminium
Mounting holes

Three mountings
Discharge control
Straight through flow mechanism
Working temperature
-20～80℃
Working humidity
0%~95%RH
Weight
3.3Kg
Packing Size
31*31*46cm

Note:

The price is for standard pulse output. If you need RS485 output, please ask us for upate price.
Installation

1. Use M6 expansion screws fixed on the ground or plate;
2. Adjust leveling according bull-eye level.
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Applications
Smart Agriculture Rain Gauge with 0.5mm Resolution and Temperature Range -20-80C
Order process

--In order to send you the specific quotation, please feel free to tell us the following information:

1. The power supply you required -- We have Pulse : MaxDC24V,100mA ; RS485: DC5V or DC 7-24V for your choices.2. The output method
you required -- We have pulse or RS485 for your choices.
3. The cable length you required -- The standard doesn't include cable. If you need cable, please ask us
4. The quantity you want to order--Sample is also welcome.
5. Price--EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
