Specifications
Mounting Type :
Insert into soil
Description :
soil sensor
Model Number :
BGT-SEC
Place of Origin :
Beijing, China
Brand Name :
BGT
Application :
soil test
Product name :

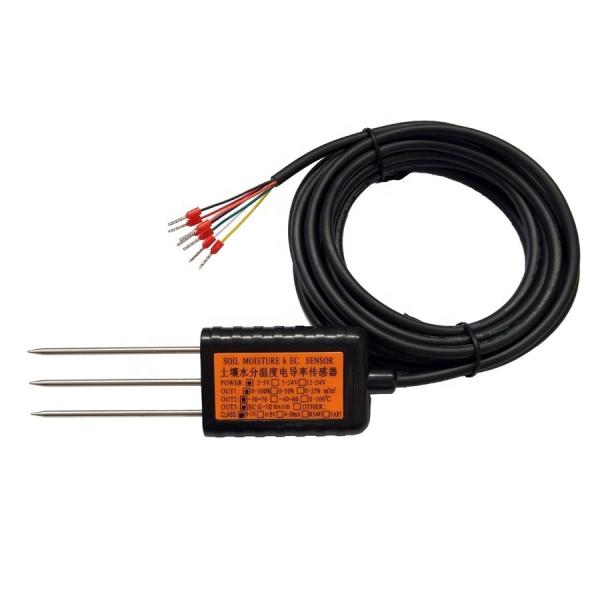

UART 2-5V 3 in 1 Soil Moisture & Temperature & EC Sensor
Key Word :
Soil ec sensor
Working voltage :
2-5V, 3.3V
Response Time :
<1 s
Protection level :
IP68
Working temperature range :
-40℃~85℃
Measuring range mositure :
0-100.00%
Accuracy mositure :
±3%(0-53%);±5%(>53%)
EC (Conductivity) :
0-20000uS/cm (25℃) (0-20.0EC)
Resolution moisture :
0.01%
Packaging Details :
Box
Port :
Tianjin
Supply Ability :
100000 Set/Sets per Month
Price :
$78.96/pieces 1-9 pieces
MOQ :
1 piece
Description
Please Attention
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
Product Description

Industrial volumetric water content MODBUS-RTU RS485 UART 2-5V 3 in 1 Soil Moisture & Temperature & EC Sensor for farm

The new developed soil moisture temperature EC three-in-one sensor is a soil sensor developed with a new technical scheme, whichcan measure soil moisture, temperature and conductivity at the same time, and carry out compensation calculation among parameters,eliminating the influence of conductivity on water, temperature on water and temperature on conductivity, can perform compensation operation and accurate evaluation.

This product can be used to measure the moisture content of saline-alkali land, which is not affected by the salt content of soil and can accurately measure the moisture content of soil.

It adopts imported epoxy resin, high quality stainless steel, more resistance to acid and alkali corrosion, steel needle
isolation, never electrolysis, with more than 3 years of service life.
With the multi-directional function of power line, ground line and signal line, can prevent the damage caused by reverse
connection, wrong connection and so on.


CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC

Features

▶ Three 316L Needle Probe
▶High Stability High Accuracy
▶ Fast Response
▶ Easy Installation
▶ Directly Buried in Soil
▶ Widly Application

Application

● Agriculture irrigation
● Green house
● Grass farm
● Environment monitoring
● Water conservation
● Soil testing

Technical parameter
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
Parameters of the category
Moisture
EC
(Conductivity)
Temperature
Measuring range
0-100.00%
0-20000uS/cm (25℃) (0-20.0EC)
-40.00℃~85.00℃
Unit
V/V %,Volumetric moisture content of soil
uS/cm, Micro Siemens/cm
℃ centigrade degree
Resolution
0.01%
1 uS/cm
0.01℃
Accuracy
±3%(0-53%);±5%(>53%)
2%FS, 2% of the value
Error < 0.3℃(-10℃~50℃)others <0.6℃
Swap precision
< 3%
< 2%FS
< 0.3℃
Repetition measurement error
< 2%
< 2%FS
< 0.2℃
Response time when powered
1 s
1 s
1 s
Measured stability time
< 2 s
< 2 s
< 2 s
Measurement principle
Frequency domain (FDR) add temperature and conductivity correction
Conductivity measurement, plus temperature compensation
RTD Thermal sensor, plus nonlinear correction

System Frame Diagram
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
Application
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
CE Certified Waterproof Soil Sensor for Irrigation Measuring VWC Temp Moisture and EC
Company Profile

Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company with R&D, production, marketing, project implementation and after sales. We are focus on providing professional hydrology and meteorology monitoring device and technical service, and developed a series of flood early warning system products by ourselves, which owning more than 50 patents and 60 software copyrights. Then our product line is including monitoring products, communication products, early warning products and cloud platform. However, our products have been sold to more than 30 countries, such as Australia, Japan, Sri Lanka and so on. Especially our tipping bucket rain gauge is doing well in foreign countries. Meanwhile, our products are covered all provinces in China and we have Guangxi/Guangdong/Hunan/Hubei/Qinhai branches.

We are devoted to solving the flood disaster problems for human beings and becoming one of the famous brands in the flood early-warning industry. Welcome to contact us.
