Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Specifications
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
BGT-10RFG
Product name :
Ultrasonic Level Transmitter with Indicator
Measuring Range :
5M (10M, 15M optional)
Accuracy :
±0.5% F.S
Power supply :
AC220V /300mA,orDC24V/300mA(optional)
Output signal :
4~20mA(three, four-wire), RS485
Protection level :
IP66
Probe blind area :
500~800mm
Packaging Details :
Carton
Price :
$169.60/pieces 1-9 pieces
MOQ :
1 piece
Description
Please Attention
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Product Description
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm

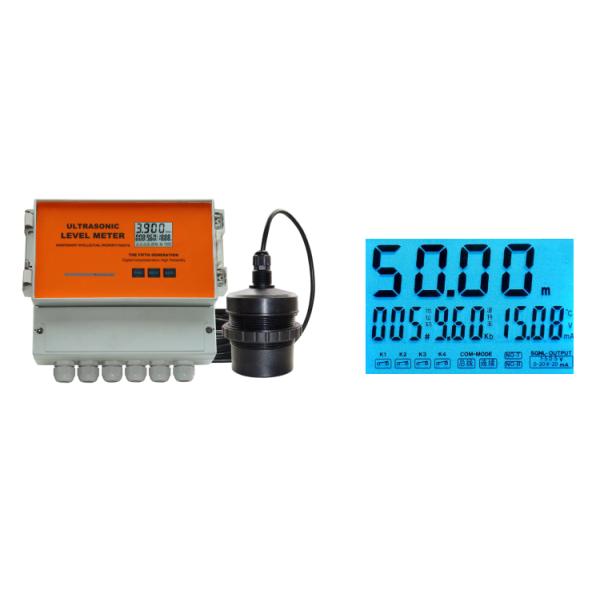

BGT-10RFG Ultrasonic Level Transmitter with Indicator 5m,10m,15m
Ultrasonic level sensors are used for non-contact level sensing of highly viscous liquids, as well asbulk solids. They are also widely used in water treatment applications for pump control and open channel flow measurement.

This type sensor is used for non-contact level sensing of highly viscous liquids, as well as bulk solids. They are also widely used in water treatment applications for pump control and openchannel flow measurement. The sensors emit high frequency (20 kHz to 200 kHz) acoustic waves that are reflected back to and detected by the emitting transducer.
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Technical Parameters
Liquid level measurement range
5m,10m,15m optional
Accuracy of detection
 ±0.5% F.S
Probe blind area
500~800mm
Working power
AC220V /300mA,or DC24V/300mA（optional）
Output signal
4～20mA(three, four-wire), RS485
Display way
LCD display+backlight
Working temperature
-10 ~ 60℃（wider temperature range can be customized）
Protection level
 IP66
Mounting model
 screw,or sifter clamping
Application environment
constant pressure, NOT explosion-proof, Non erosive environment

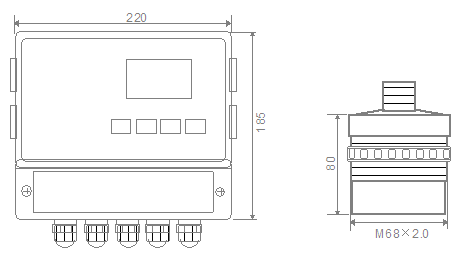

Structure Size
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Wiring Definition
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer.
     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.

BGT-SR ABS RS485/Relay Rainfall and snow sensor with optional heating function
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Our Factory
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
How to Order

1. Tell us what resistance, color, quantity you want to purchase.


2. PI will made for you to confirm.

3. After confirmation, products will arranged when we received your payment.

4. Delivery the goods once tested approved.

5. Any questions will be responded within 24 hours.
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Related Products
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm

Wind sensor

Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm

Tipping bucket rain gauge

Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm

Solar radiation sensor

Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm
Water Tank Level Indicator BGT-10RFG with Display 4-20mA RS485 Probe Blind Area 500-800mm

                                   Weather Station                                                                Soil Moisture Sensor

FAQ


Q1: Are you trading company or manufacturer?

A: Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for hydrological and meteorological products and solutions. Q2. Can I have a free sample for testing ? A: Sample order is acceptable, but need you to pay for the product cost and freight . Q3. What about the lead time? A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days. Q4: Is it OK to print my logo on the products? A: Yes, we support OEM/ODM service. Q5: Do you offer guarantee for the products? A:Yes, we offer 1 year warranty to our products. Q6: Can I visit your company? A: Yes, warmly welcome to visit our company. Q7. Do you have certifications? A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc. Q8: How is the quality of your goods? A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the product, we have after-sale team to serve you. And we offer 1 year warranty.
