Specifications
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
BPHT
Type :
Water PH Sensor
Product name :
water PH sensor
Test objects :
water
Working temperature :
0-100℃
Working humidity :
0-100%RH
Detection substance :
PH
Detection range :
0-14
Output signal :
4-20mA (optional RS485 modbus)
Packaging Details :
Cartons
MOQ :
1 piece
Price :
$73.80/sets 2-99 sets
Description
Please Attention

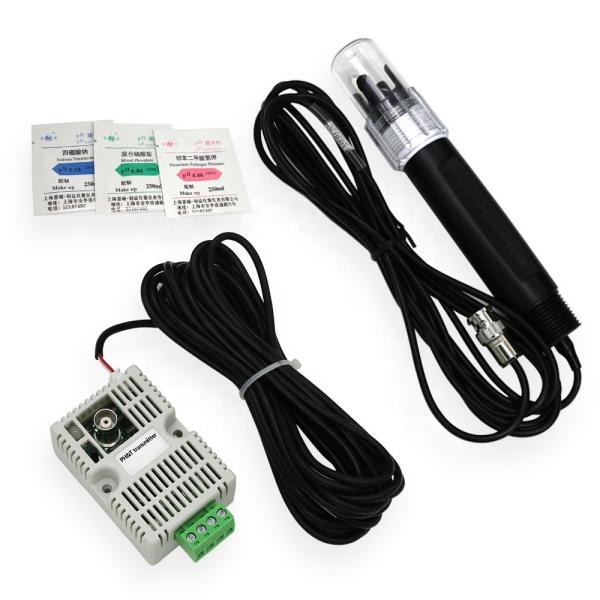

4-20mA RS485 Modbus Water PH Sensor for Fish Pool and Agriculture Irrigation 12V/24V

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
4-20mA RS485 Modbus Water PH Sensor for Fish Pool and Agriculture Irrigation 12V/24V
Product Description

China manufacturer Water EC sensor

The pH value and temperature transmitter adopts a dual high resistance three electrode system, which has the characteristics of on-line one key calibration, real-time temperature compensation, electrode breaking alarm, correcting the good and bad alarm of the punctual electrode, power off protection (which can make the calibration results and the preset data not lost because of shutdown or blackout), overcurrent protection, overvoltage protection, high measurement precision, quick response and long service life.
The humanized on-line one key calibration function is convenient for users to calibrate and correct the electrode regularly. It can effectively complete the process of conversion, processing, and so on with the function of temperature compensation and power loss protection. The product is small in size, light in weight, easy to install and maintain. The standard industrial signal output (0-5V, 0-10V, 4-20MA, ModbusRTU485) can satisfy all kinds of real-time monitoring equipment on the spot.
The product is convenient to connect with all kinds of control devices and display instrume achieve on-line monitoring of pH and temperature status. This product is widely applied to all kinds occasions that need to measure and control pH and temperature. Application
This product is suitable for applications such as electroplating, fermentation, food processing, sewage treatment, metallurgy, environmental protection and so on.


4-20mA RS485 Modbus Water PH Sensor for Fish Pool and Agriculture Irrigation 12V/24V

Specification

Technical parameter
parameter values
measuring range
PH
0.0~14.0PH
Temperature
-20℃~+80℃
measurement accuracy
PH
±0.1PH
Temperature
±0.5℃
working voltage
DC:12V ~ 24V (ripple< 50mV)
Signal output
DC0-5V DC0-10V
4-20mA ModbusRTU485
Load resistance
Vout: RLoad≥10KΩ Iout: RLoad≤(Uvcc-3)/0.02Ω
Power Consumption
<1W
Storage environment
Temperature
10℃-50℃ (-20℃~+80℃ peak)
Humidity
20-60%RH
work environment
Temperature
-20℃~+80℃
Humidity
5-95%RH (non-condensing)
Shape size
65mm*46mm*28.5mm
4-20mA RS485 Modbus Water PH Sensor for Fish Pool and Agriculture Irrigation 12V/24V
4-20mA RS485 Modbus Water PH Sensor for Fish Pool and Agriculture Irrigation 12V/24V
4-20mA RS485 Modbus Water PH Sensor for Fish Pool and Agriculture Irrigation 12V/24V

           ISO14001

4-20mA RS485 Modbus Water PH Sensor for Fish Pool and Agriculture Irrigation 12V/24V

                        CE


4-20mA RS485 Modbus Water PH Sensor for Fish Pool and Agriculture Irrigation 12V/24V

             ISO9001
