Specifications
Warranty :
1 year
Customized support :
OEM
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
BGT-GL801
Product name :
Submersible water pressure tank level sensor
Output signal :
4-20mA/0-20mA/RS485/1-5V/0-5V
Accuracy :
0.5% FS (can customize 0.2% FS)
Power supply :
24VDC/12VDC/5VDC
Diaphragm, shell material :
316L Stainless steel
Cable length :
5m (optional)
Measuring range :
0-1m/0-50m/0-500m
Protection level :
IP68
Operating temperature :
-20℃-70℃
Packaging Details :
Box
MOQ :
1 piece
Price :
$39.80/pieces 2-49 pieces
Description
Please Attention
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal

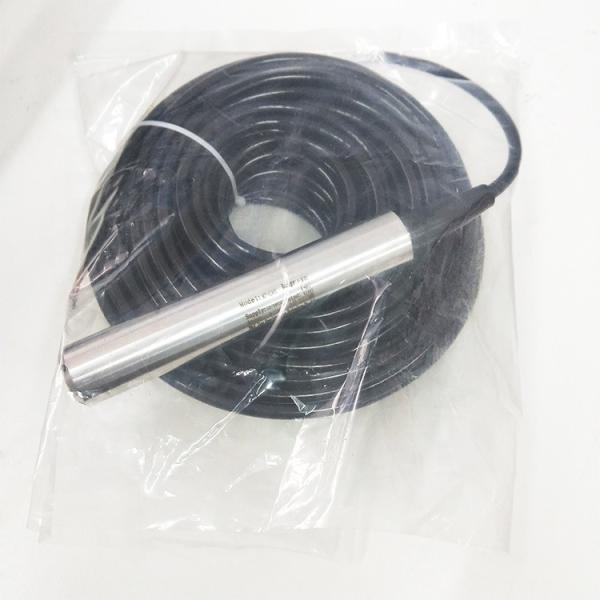

Submersible water pressure tank level sensor

 BGT-GL801 pressure water level transmitter uses high performance inductive chip, with advanced circuit processing and temperature compensation technology, to convert the pressure change into linear current or voltage signal. The product is compact in size and easy to install. The stainless steel shell is used for isolation and anticorrosion. It is suitable for measuring gas, liquid and other media compatible with the contact materials.

    The product is widely used in water plant, oil refinery, sewage treatment plant, building materials, light industry, machinery and other industrial fields, to achieve the measurement of liquid pressure.

5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
Product Parameters
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
 Product Name
Submersible water pressure tank level sensor
Type
BGT-GL801
Output signal
 4-20mA/0-20mA/RS485/1-5V/0-5V
Measuring range
0-1m/0-50m/0-500m
Accuracy
0.25% FS
Power supply
12-36VDC
Diaphragm, shell material
316L Stainless steel
Cable length
5m (optional)
Protection level
IP68
Operating temperature
-20℃-70℃
Products Details
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal

Wiring method

For example:

5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company with R&D, production, marketing, project implementation and after sales. We are focus on providing professional hydrology and meteorology monitoring device and technical service, and developed a series of flood early warning system products by ourselves, which owning more than 50 patents and 60 software copyrights. Then our product line is including monitoring products, communication products, early warning products and cloud platform. However, our products have been sold to more than 30 countries, such as Australia, Japan, Sri Lanka and so on. Especially our tipping bucket rain gauge is doing well in foreign countries. Meanwhile, our products are covered all provinces in China and we have Guangxi/Guangdong/Hunan/Hubei/Qinhai branches.

     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous brands in the flood early-warning industry. Welcome to contact us.
Submersible water pressure tank level sensor
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
Our Factory
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
5m Cable Length Submersible Water Pressure Tank Level Sensor with Optional Output Signal
Advantages& FAQ

Why Choose Us


    ◆8 years in hydrology and meteorology wireless communication industry
  ◆Apply in more than 50 countries & areas
  ◆Certificated completed
  ◆Millions of terminals on-line
  ◆Strong R&D team, senior staff more than 60
  ◆Support OEM/ODM cooperation


FAQ


Q1. Can I have a sample order ?
Hot sale industrial universal water tank level pressure sensor
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Hot sale industrial universal water tank level pressure sensor
Q2. What about the lead time?
Hot sale industrial universal water tank level pressure sensor
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3. Do you have any MOQ limit?
Hot sale industrial universal water tank level pressure sensor
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Hot sale industrial universal water tank level pressure sensor
Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on the products?
Hot sale industrial universal water tank level pressure sensor
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
Hot sale industrial universal water tank level pressure sensor
Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Hot sale industrial universal water tank level pressure sensor
