Ultrasonic level sensors are used for non-contact level sensing of highly viscous liquids, as well asbulk solids. They are also widely used in water treatment applications for pump control and open channel flow measurement.
Ultrasonic level sensors are used for non-contact level sensing of highly viscous liquids, as well asbulk solids. They are also widely used in water treatment applications for pump control and open channel flow measurement.

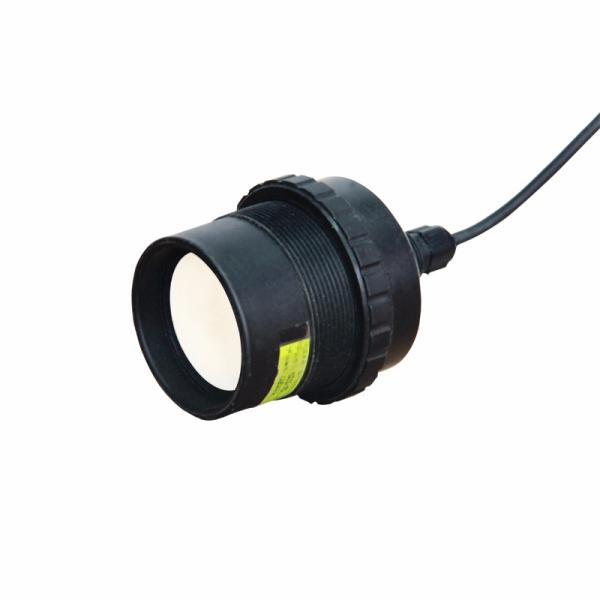

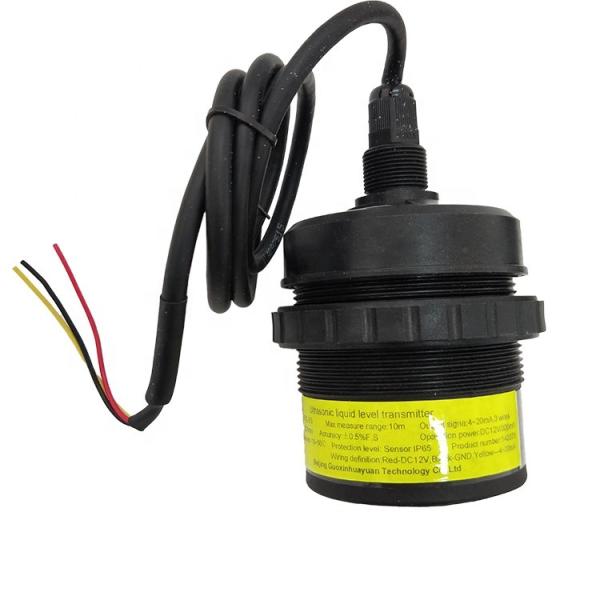

This type sensor is used for non-contact level sensing of highly viscous liquids, as well as bulk solids. They are also widely used in water treatment applications for pump control and openchannel flow measurement. The sensors emit high frequency (20 kHz to 200 kHz) acoustic waves that are reflected back to and detected by the emitting transducer.
* Range of up to 60 meters
* Level or material measurement
* Good stability
* Response speed is adjustable
* Easy Installation

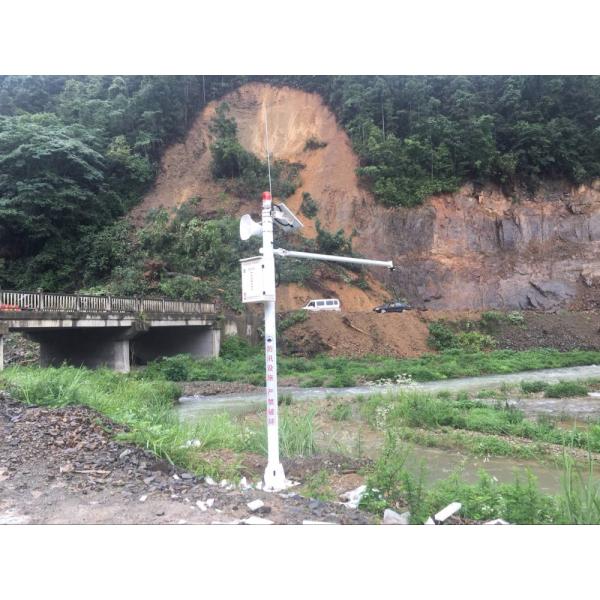

* River water level measurement
* Lake water level measurement
* Shallow water level measurement
* Hydrological monitoring
* Environmental protection
Range | 0 ~ 10m(0-500m optional) | ||
Detect blind area | ≤500mm(max measure range including blind area) | ||
Detect accuracy | ±0.5%F.S (at 25 ℃, two times outside the blind area, with smooth object surface) | ||
Current output | 1) Current: 0-20mA or 4-20mA; 2)Voltage: 0-5V or 1-5V 3)Digital: RS485/RS232 | ||
Output Resolution | 0.03% of the actual range | ||
Operation power | DC24V/300mA,or DC12V/300mA | ||
IP grade | IP 65 | ||
Installation | Flange or bracket | ||
Cable length | 0.5M |
