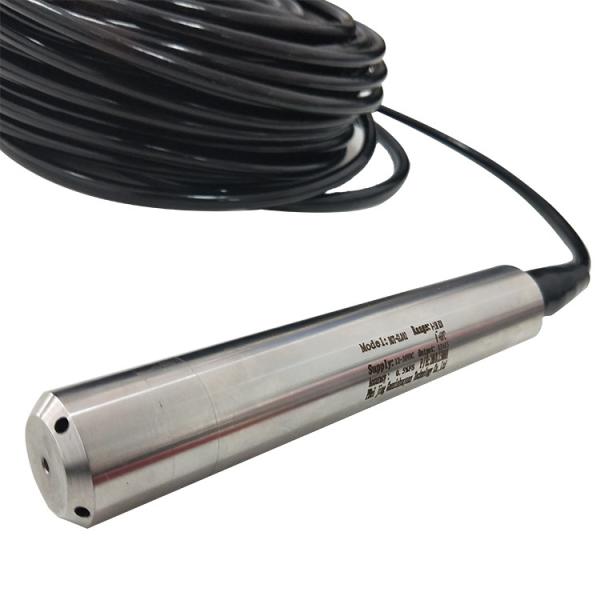

4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
Specifications
Place of Origin :
Beijing, China
Brand Name :
BGT
Model Number :
BGT-GL801
Certification :
CE
Packaging Details :
Box
MOQ :
1 piece
Price :
$39.80/pieces 2-49 pieces
Customized support :
OEM, ODM
Product name :
Submersible water pressure tank level sensor
Output signal :
4-20mA
Accuracy :
0.5% FS (can customize 0.2% FS)
Power supply :
24VDC/12VDC/5VDC
Diaphragm, shell material :
316L Stainless steel
Cable length :
5m (optional)
Measuring range :
0-5m
Protection level :
IP68
Operating temperature :
-20℃-70℃
Description
Please Attention
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.

Submersible water pressure tank level sensor

BGT-GL801 pressure water level transmitter uses high performance inductive chip, with advanced circuit processing and temperature compensation technology, to convert the pressure change into linear current or voltage signal. The product is compact in size and easy to install. The stainless steel shell is used for isolation and anticorrosion. It is suitable for measuring gas, liquid and other media compatible with the contact materials.

The product is widely used in water plant, oil refinery, sewage treatment plant, building materials, light industry, machinery and other industrial fields, to achieve the measurement of liquid pressure.

4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
Product Parameters
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
Product Name
Submersible water pressure tank level sensor
Type
BGT-GL801
Output signal
4-20mA;(Optional: RS485)
Measuring range
0-5m;
Accuracy
0.5% FS (can customize 0.2% FS)
Power supply
24VDC(Default, 12VDC/5VDC for optional)
Diaphragm, shell material
316L Stainless steel
Cable length
5m (optional)
Protection level
IP68
Operating temperature
-20℃-70℃

For other measuring range ( max0-200M), please ask us for price.

The price is 4-20mA, 24VDC power , measuring range 0-5M, cable lenth 5M. For other requirement, price will be different

Products Details
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank

Wiring method

For example:

Output 4-20mA (Two-wire): Red: VCC Black: GND Calculation formula: H=(Measured current value - 4)/16*Range H-water level,”m”; Range: if measuring range is 10m, then range=10 )

Our Factory
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
Related Products
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank

Wind sensor

4-20mA Submersible Water Pressure Level Transmitter for Underground Tank

Tipping bucket rain gauge

4-20mA Submersible Water Pressure Level Transmitter for Underground Tank

Solar radiation sensor

4-20mA Submersible Water Pressure Level Transmitter for Underground Tank
4-20mA Submersible Water Pressure Level Transmitter for Underground Tank

Weather Station Soil Moisture Sensor

Advantages& FAQ

Why Choose Us

◆ 8 years in hydrology and meteorology wireless communication industry
◆ Apply in more than 50 countries & areas
◆ Certificated completed
◆ Millions of terminals on-line
◆ Strong R&D team, senior staff more than 60
◆ Support OEM/ODM cooperation

FAQ


Q1. Can I have a sample order ?
Hot sale industrial universal water tank level pressure sensor
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Hot sale industrial universal water tank level pressure sensor
Q2. What about the lead time?
Hot sale industrial universal water tank level pressure sensor
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3. Do you have any MOQ limit?
Hot sale industrial universal water tank level pressure sensor
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Hot sale industrial universal water tank level pressure sensor
Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on the products?
Hot sale industrial universal water tank level pressure sensor
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.
Hot sale industrial universal water tank level pressure sensor
Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Hot sale industrial universal water tank level pressure sensor
