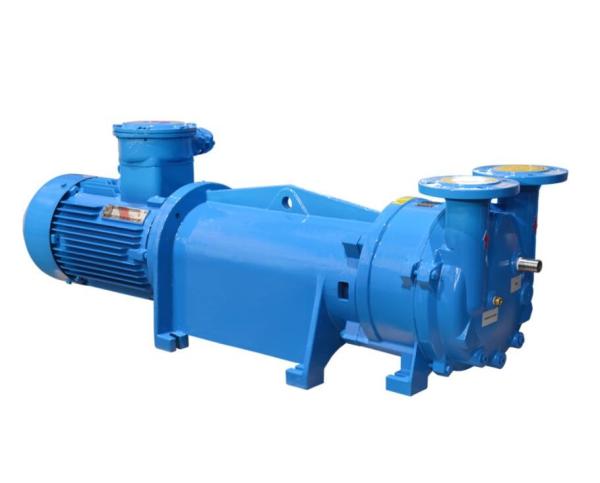

2BV Series Water-Ringing Vacuum Pump

Detailed introduction

2BV water-ring vacuum pumps are new economic products developed jointly by our company and other scientific research institution and, with its excellent performances and numerous merits, could replace equivalent SK and 2SK water-ring vacuum pumps as well as W, WY and WL reciprocating vacuum pumps.
2BV water-ring vacuum pumps are widely used in petroleum, chemical, pharmaceutical, food, sugar industry etc. In respect of its isothermal air compression, there are fewer explosive risks when compressing and pumping flammable and explosive gases, so it is more preferred.

Structure and Characteristics

1.Direct-link of machine and pump, less space, easy installation.
2.Standard configuration of mechanical seal avoiding leak, easy maintenance.
3.Stable running, low noise = 62dB.
4.Unique flexible vent hole avoiding over-compression and ensuring optimum efficiency within working range.
5.All 2BV products are equipped with cavitation protection pipe joint which can be opened under ultimate pressure to ensure air suction, eliminate cavitation noise and protect the pump to the most extent.
6.All parts and components are precisely machined by CNC lathes and equipped with nationwide high-quality mechanical seals.

Application

Single stage or two stage liquid ring vacuum pumps are the ideal for specific, humid, dirty or high capacity applications in heavy industries,a selection of which can be found below.

The 2BV, SK and 2SK series are the workhorses: proven, strong and reliable machines that deliver utility or process vacuum.

2BV SK and 2SK series pumps are therefore suitable for use in the following industry:

· General manufacturing · Metalwork industry

· Food processing · Petroleum industry

· Paint industry· Mining

· Chemical industry· Oil and gas

· Paper and allied products · Plastics

· Brick extrusion· Textile industry

· Automotive industry· Power and utilities

· Cement and allied products

2BV Series Water-Ringing Vacuum Pump Model Ordering Code:

2BV - 5/6 - 11 - 0

2BV-----Water Ringing Vacuum Pump
5/6-----Type code
11-----Impeller name radius(cm)
0----- Impeller wide than code name diameter

2BV Series Water-Ringing Vacuum Pump Models performance parameters
