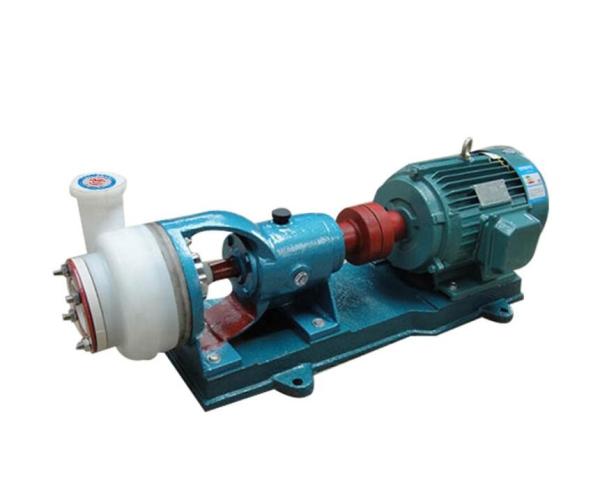

Hydromatic Industrial Centrifugal Pump 200FSB-20L 200FSB-20L Self Priming Oil Pump
Hydromatic Industrial Centrifugal Pump 200FSB-20L 200FSB-20L Self Priming Oil Pump
Hydromatic Industrial Centrifugal Pump 200FSB-20L 200FSB-20L Self Priming Oil Pump
Hydromatic Industrial Centrifugal Pump 200FSB-20L 200FSB-20L Self Priming Oil Pump
Specifications
Brand Name :
Hydromatic
Model Number :
200FSB-20L 200FSB-20L
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
On Request
Payment Terms :
T/T, Western Union
Supply Ability :
1000/Month
Delivery Time :
7-10 working days
Packaging Details :
Paper
Description

FSB Centrifugal Pump

Application:

The pickling and painting in automobile manufacturing; the conveying of elecrolyte in the melting of nonferrous metals ; the process flow for the treatment of chlorine water and effluent and acid feeding in the ion-exchange membrane item.Operating temperature: -20oc- +95oc.


Design peculiarity:

With fluid-contact parts made totally with fluoroplastic-alloy,model FSB, FSB-D centrifugal pumps have compact construction,and are simple in operation,while their price is low.Their pump case,impeller,mechanical seal are interchangable.They are popular in industries such as pesticides,electronics, and papermaking...

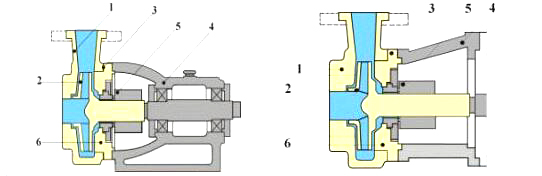

FSB Centrifugal Pumps Structures & Material:

Hydromatic Industrial Centrifugal Pump 200FSB-20L 200FSB-20L Self Priming Oil Pump

No Part name Material
1 Pump body Fluoroplastics alloy
2 Impeller Fluoroplastics alloy,45#Steel
3 Adjusting ring Fluororubber
4 Support HT200
5 Mechanical Seal Polytetrofluoroethylene,aluminum oxide
6 Rear cover Fluoroplastics alloy

FSB Centrifugal Pumps Model Ordering Code:

40 FSB - 30 L
40-----Suction Diameter
FSB----- FSB Series pump
30----- Head

L---- Design No.

FSB Centrifugal Pumps Models and Parameters:

Model Capacity(M3/h) Head caliber Motor power Speed Vacuum High(m) Efficiency(%)
(m) Suck(mm) out(mm) (kw) (r/min)
25FSB-10L 1.5 10 25 20 1.5 2900 6 29
25FSM-18L 3.6 18 25 20 2.2-3 2900 6 27
40FSB-15L 5 15 40 32 3 2900 6 40
40FSB-20L 10 20 40 32 3 2900 6 42
40FSB-30L 10 30 40 32 3-4 2900 6 38
40FSB-40L 10 40 40 32 4-5.5 2900 5.5 35
40FSB-50L 10 50 40 32 5.5-7.5 2900 5 33
50FSB-20L 15 20 50 40 3-4 2900 6 51
50FSB-25L 15 25 50 40 4 2900 6 49
50FSB-30L 15 30 50 40 4 2900 6 44.5
50FSB-40L 15 40 50 32 4.5-5.5 2900 5.5 35
50FSB-50L 15 50 50 32 5.5-7.5 2900 5.5 33
50FSB-63L 15 63 50 32 11 2900 5.5 30
65FSB-32L 29 32 65 50 5.5 2900 6 57
65FSB-40L 29 40 65 40 11 2900 5.5 53
65FSB-50L 29 50 65 40 15 2900 5.5 46
65FSB-64L 29 64 65 50 15-18.5 2900 5.5 44
80FSB-20L 50 20 80 65 5.5 2900 6 69
80FSB-30L 50 30 80 65 7.5 2900 5.5 64
80FSB-34L 50 34 80 65 11 2900 5.5 64
80FSB-40L 50 40 80 50 11-15 2900 55 60
80FSB-50L 50 50 80 50 15-18.5 2900 6 53
80FSB-55L 50 55 80 50 15-18.5 2900 5.5 47
80FSB-80L 50 80 80 50 30-37 2900 5.5 36
100FSB-32L 100 32 100 80 18.5-22 2900 5.5 70
100FSB-40L 100 40 100 80 18.5-22 2900 5.5 70
100FSB-50L 100 50 100 65 22-30 2900 5.5 62
125FSB-32L 125 32 125 80 22 2900 5.5 72
125FSB-40L 125 40 125 80 30 2900 5.5 70.9
125FSB-50L 125 50 125 100 37 2900 5.5 64
150FSB-22L 190 22 150 100 18.5 1450 6 77
150FSB-35L 190 35 150 100 30 1450 5 75
150FSB-42L 190 42 150 100 55 1450 4.5 70
200FSB-20L 200 20 200 150 37 1450 3 81
