KCB-1600 KCB-1600 Circular Centrifugal Oil Pump 5400L/Min High Temperature Gear Pump
KCB-1600 KCB-1600 Circular Centrifugal Oil Pump 5400L/Min High Temperature Gear Pump
KCB-1600 KCB-1600 Circular Centrifugal Oil Pump 5400L/Min High Temperature Gear Pump
KCB-1600 KCB-1600 Circular Centrifugal Oil Pump 5400L/Min High Temperature Gear Pump
Specifications
Brand Name :
Hydromatic
Model Number :
KCB-1600 KCB-1600
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
On Request
Payment Terms :
T/T, Western Union
Supply Ability :
1000/Month
Delivery Time :
7-10 working days
Packaging Details :
Paper
Model :
KCB-1600 KCB-1600
Description

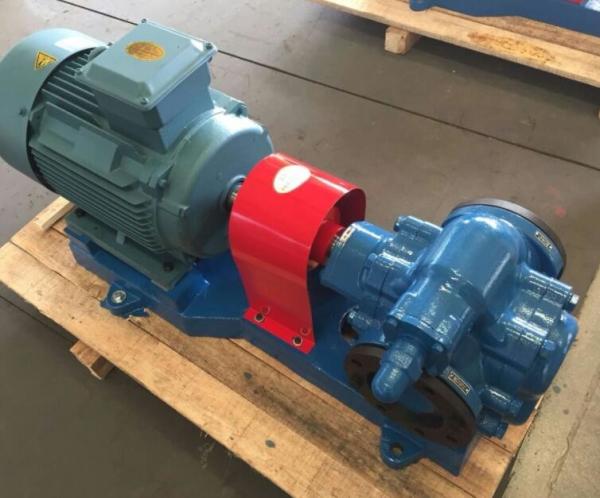

The KCB gear oil Pump is a higher flow, Low pressure external gear pump. Designed for the transfer of fuel oils,lubricating oil transfer,diesel,vegetable oil,solvent,coating,Palm Oil,kerosene,biodiesel.F.O., M.O., L.O.,petrol, benzene fluids with varying viscosities up to 1500cSt, the KCB is therefore designed for handling larger volumes of fuels and oils.

The self-priming nature of the gear pump design makes it ideal for applications with difficult suction conditions, for example where the fluid needs to be pumped over a long distance or when the pump is situated above the fluid.

Technical Data of KCB gear oil pumps
MODEL NUMBER:
KCB-18.3
KCB-33.3
KCB-55
KCB-83.3
KCB-200
KCB-300
KCB-483.3
KCB-633
KCB-960
KCB-1200
KCB-1600
KCB-1800
KCB-2500
KCB-3800
KCB-5400
KCB-7600
KCB-9600

Caliber:3/4 "-14 "
Capacity: 18.3-9600 lpm
Flow rate: 1.1 m³/h-570 m³/h
Rotational speed: 740 r/min-1440 r/min
Discharge pressure: 0.28 Mpa-1.45 Mpa
Suction head: 3-4 m
Motor power: 1.5KW-250KW.
Pump material can be cast iron, carbon steel, stainless steel

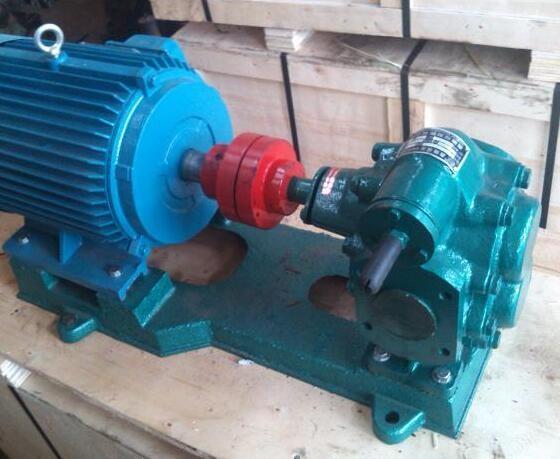

Being long coupled, these KCB helical gear pumps are easier to maintain as you can get to the pump head without removing the motor first, and are also more durable for continuous use as it has additional bearings in the pump head to share the strain of operation.

Features of the KCB Gear Pump:
Long coupled, self-priming helical gear pump
Smooth, pulseless flow
Additional bearings in pump head to share the strain of operation
Inline ports, supplied flanged as standard
Pressure differential safety valve - 1.5 times the rated pressure
Gland packing or mechanical seal
Suitable for lube and fuel oils between 5-1500cSt
230v, 380V,440V three phase 50Hz/60Hz motors available. IP55 as standard
Product details:
Model
Flow rate
Pressure
Motor power
Inlet&Outlet
L/min
Mpa
kw
mm
KCB-18.3
(2CY1.1/1.45)
18.3
1.45
1.5-4
20
KCB-33.3
(2CY2/1.45)
33.3
1.45
2.2-4
20
KCB-55
(2CY3.3/0.33)
55
0.33
1.5-4
25
KCB-83.3
(2CY5/0.33)
83.3
0.33
2.2-4
40
KCB-200
(2CY12/0.33)
200
0.33
4-4
50
KCB-300
(2CY18/0.36)
300
0.36
5.5-6
70
KCB-483.3
(2CY29/0.36)
483.3
0.36
11-4
70
KCB-633
(2CY38/0.28)
633
0.28
11-6
100
KCB-960
(2CY58/0.28)
960
0.28
22-4
100
KCB-1200
1200
0.6
37-8
150
KCB-1600
1600
0.6
45-6
150
KCB1800
1800
0.6
55-8
200
KCB-2500
2500
0.6
75-6
200
KCB-3800
3800
0.6
110-6
250
KCB-5400
5400
0.6
160-6
250
KCB-7600
7600
0.6
200-6
350
KCB-9600
9600
0.6
250-6
350
