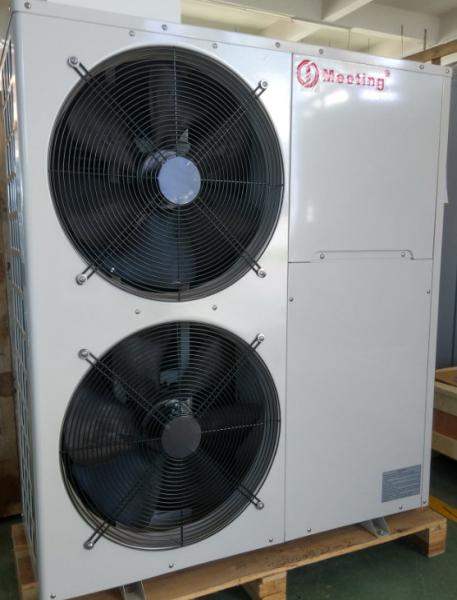

High efficiency Air Source Heat Pump , Mono Block House Heating and cooling Residential Heat Pump

Quick Details

• Rated heating capacity		KW	18
  Rated Cooling capacity			12
  Hot water supply		L/h	400
  Average heating input power		KW	4.4
  Rated heating input current		A	9
  Max outlet water temp		C	60
  Power		V/Hz	380V/50
  Noise		Db(a)	55
  Dimension	W*D*H	mm	1120*490*1270
  Packing size	W*D*H	mm	1200*520*1425
  Unit weight		KG	160
  Refrigerant			R417A/R407C/R404A
  Working air temp range			(-20℃)—45℃
  compressor	Type		Copeland
  Air source heat exchanger	Type		Finned heat exchange
  	Fan Type		axial flow fan
  Hot water side heat exchange	Type		Coil heat exchanger
  	Water flow	L/H	5000L/h
  	Water pressure down	Kpa	45
  	Pipe size	DN	25
  	Max flat spuare meter	M2	150

QC:

1. Complying with ISO standard. Quality Ensured.

2. Complete Inspection for each unit before out of factory, covering water system and electricity detection and testing, ensuring 100% right product before shipment

.

3. Strict quality control during production. We have liquid soap detection, halogen detection, electrical

detection and water-soaking detection during production to avoid gas leakage and electrical problems.

4. Full inspection on bigger parts such as compressors, condensers, evaporators, expansion valves, flow switches, controllers etc. Selection inspection for small parts such as sensors, pressure switches etc.

5. Well noise control by using mute cotton for casing plates and soft rubber feet for floating compressors, some of the models use compressor isolation shields.

6. Well insulated with insulated cotton for every pipe and parts, include compressor, dryer filter and each pipes.

7. We have passed TUV and SGS inspections. We have CE, Ro HS, IEC, CCC, CB certificates for most of our products. Some of our products have en14511 test, en14825 test.

A. Payment service

1. T/T

2. L/C (for container order only)

B. Technical service

1. We calculate the capacity and recommend the best models.

2. We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.

3. We supply the spare parts and technical support in and after the warranty time.

4. We supply the training course to your workers at our factory if you need.

5. We can offer site training to your workers in your place which is negotiable.

C. After-sales service

1. Technical support for your installation, operation and maintenance.

2. Standard warranty time: One years’warranty for heat pumps

You can also pay for extended warranty or we can renegotiate the longer warranty period.

1. Spare parts and technical support at most economic prices after the warranty.

Certificate we have got :

1> ISO 9001, ISO 14000

2> Our company has been inspected and certificate by EMC

3> CE And EN14511, EN 14825-ERP for heat pump exported to Europe

4> Energy label for all heat pump models sold to over sea market

5> Testing laboratory calibrated by CNAS

Our leading products

Air to water heat pump, DC inverter heat pump, High water temperature heat pump.

Mono block house heating heat pump, Split heat pump, Super low noise heat pump

Heat pump dryer, Ground source heat pump, water to water heat pump, swimming pool heat pump

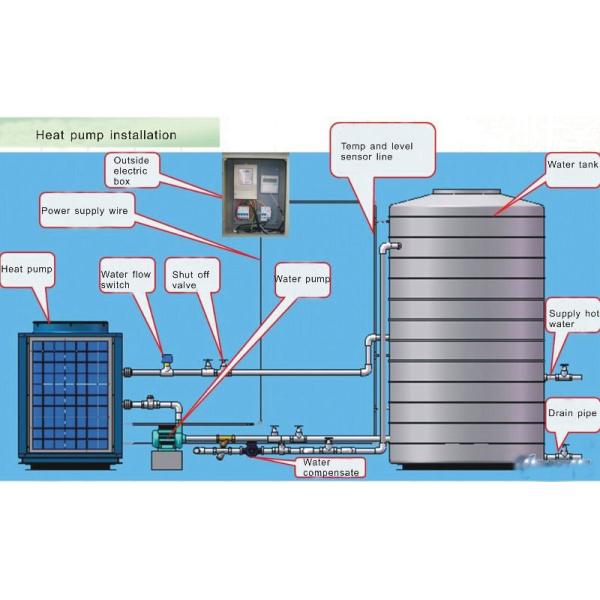

Air source heat pump working diagarm
