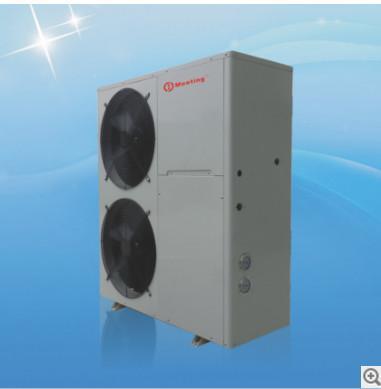

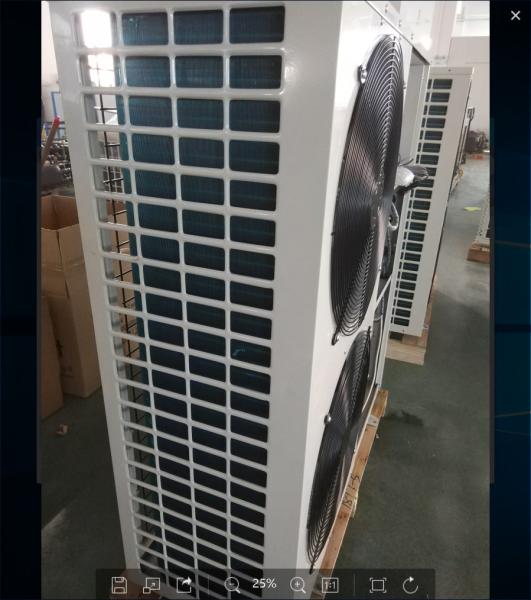

Meeting Blue Swimming Pool Heat Pump , Safe & Comfort Water To Air Heat Pump
Meeting Blue Swimming Pool Heat Pump , Safe & Comfort Water To Air Heat Pump
Meeting Blue Swimming Pool Heat Pump , Safe & Comfort Water To Air Heat Pump
Meeting Blue Swimming Pool Heat Pump , Safe & Comfort Water To Air Heat Pump
Specifications
Brand Name :
Meeting
Model Number :
MD60D
Certification :
CE ISO CCC UKAS,ROHS
Place of Origin :
Guangzhou China
MOQ :
5 PCS
Price :
Negotiation
Payment Terms :
T/T, L/C WESTERN UNION
Supply Ability :
800/MONTH
Delivery Time :
15 days
Packaging Details :
Plywooden case
Materail :
Galvanized steel sheet
Contactor :
Fuji Brand
Copper Pipe thick :
1 mm
Compressor :
ZW Series ,With Crank heating
Working Temperature :
-20--45 degree
Insulation :
Foam pack Pipe and Stick on the machine innner
Defrosting :
Automaticlly
Temperature :
80 degree
Description

Meeting Blue And White Color 6P380V Air Source Heat Pump_Heat Pump Water Heater_Air Heat Pump

Technology Specification

Important Air to Water heat pump information :

Certification:CE ISO CCC UKAS,ROHS

Place of Origin:Guangdong, China (Mainland)

Brand Name:Meeting

Model Number:MD60D

Condenser:Double thread copper tube heat exchanger

Evaporator:High efficiency inner thread tube connected with

Throttling Device:Electric expansiona valve

Refrigerant:R417A ,R407A,R410A

Net Weight (kg):210

Compressor:Copeland

Power supply:380V/50HZ

Working air temp range:-25—(45)

Main part accessories

Meeting Blue Swimming Pool Heat Pump , Safe & Comfort Water To Air Heat Pump

Meeting Blue Swimming Pool Heat Pump , Safe & Comfort Water To Air Heat Pump

Meeting Blue Swimming Pool Heat Pump , Safe & Comfort Water To Air Heat Pump

Air source heat pump working principle

According to the principle of reverse Carnot cycle, the low-temperature and low-pressure liquid

refrigerant exchanges heat with the surrounding air in the evaporator, absorbs the heat Q1 in the air and

evaporates into a low-temperature and low-pressure gas state, the temperature of the refrigerant does

not change during evaporation, and the low-temperature and low-pressure gas refrigerant After entering

the compressor, the compressor is used to do work W. It is compressed into high-temperature and high-

pressure gas. Then it enters the condenser. In the condenser, it exchanges heat with indoor water. Part

of the heat Q2 of the high-temperature and high-pressure gaseous refrigerant is absorbed by the water.

As the temperature rises, the refrigerant radiates heat and condenses and turns into a high-temperature,

high-pressure liquid. During the condensation, the temperature of the refrigerant is constant and then

enters the expansion valve for throttling. Throttling is a process of rapid cooling, and the refrigerant turns

into a low-temperature and low-pressure liquid. This process is just like Contrary to the situation in the

compressor, the refrigerant after throttling enters into the evaporator for heat exchange, thereby

realizing the entire process of reverse Carnot. This cycle is continuous, and the air source heat pump

can work continuously and keep the water temperature constant. Increased
So Q2=Q1+W in this process

FAQ

Q1. Can I have a sample order for Heat pump or Water tank?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-10days, mass production time depend on the products'quantity.

Q3.Do you offer guarantee for the products?

A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).

Certificsate we have got :

  • ISO 9001, ISO 14000
  • Our company has been inspected and certificate by EMC
  • CE And EN14511, EN 14825-ERP for heat pump exported to europe
  • Energy label for all heat pump models sold to oversea market
  • Testing laboratory calibrated by CNAS

After selling
1. We promise to offer free consulting call in 7~24 hours mode to solve the problems found in practice.

2. Products guarantee is 18~24 months from ex-factory date. Within 18months,if any components of your products damaged because of quality, we supply new replacement for free.

3. After the expiration of the quality assurance, we will continue to provide lifelong maintenance services, with just charging some cost price.

Packaging Details

Carton and Wooden Package,

OEM is available

Delivery Time:15 working days after arrival of down payment
