Technology Specification

Porduct Details

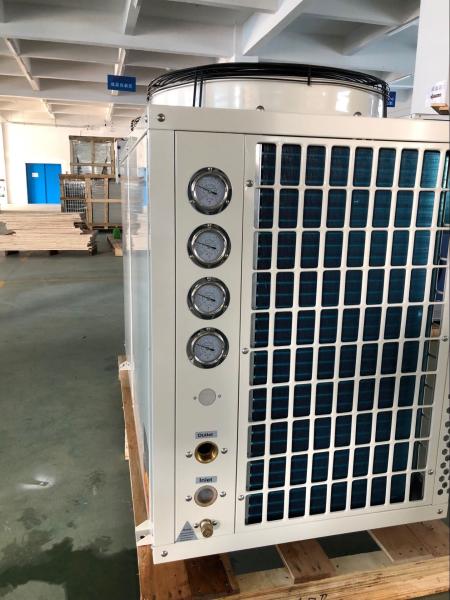

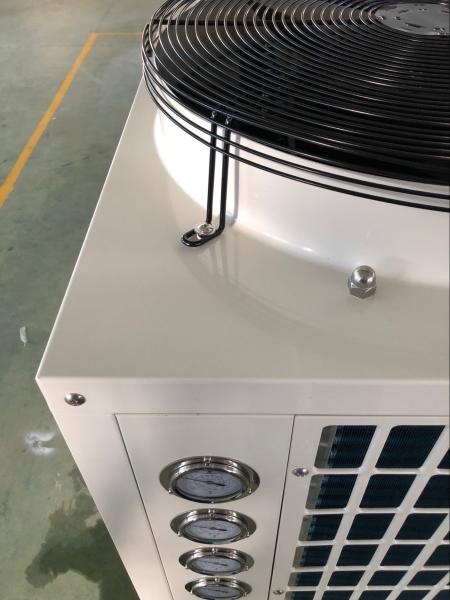

Electric Air heat pump

Certification:CE ISO CCC UKAS,ROHS

Place of Origin:Guangdong, China (Mainland)

Brand Name:Meeting

Model Number:MD150D

Condenser:Double thread copper tube heat exchanger

Evaporator:High efficiency inner thread tube connected with

Throttling Device:Electric expansiona valve

Refrigerant:R417A ,R407A,R410A

Net Weight (kg):320

Compressor:Copeland

Power supply:380V/50HZ

Working air temp range:-25—(45)

Feature:

»Indoor unit mainly includes condenser, 4-way valve and expansion valve.

• Avoid the condenser to be burst in the cold weather, better anti-freezing proctection
• High efficient, lower heat dissipate

» Outdoor unit comprises evaporator, fan and compressor.

• Thermostatic heating element for evaporator anti-frosting protection
• The water connections and the drain pipelines must be protected against frost on site
• compressor outside ,to reduce noise mostly inside the house.

»Auxiliary electronic heater or solar coiler is on your option

» Fashionable design, compact structure, saving the place.

»Quiet, lower the noise when the unit is running

»Advance control panel. Timer function , automatic defrosting function, optional electrical heating, error messages showed for warning.

»It can be work in -25°C low ambient temperature.

Hot water output temperature up to 60°C, for domestic hot water or heating.

auto-defrosting function included. And cooling is optional

Air source heat pump working principle

Packaging Details:

Carton and Wooden Package,

OEM is available

Delivery Time

15 working days after arrival of down payment

Use

Business Organizations

Supermarket, shopping malls, shops, department store, star-rated

hotels, restaurants, school, office;

Public Places

subway, airports, stations, bookstores, exhibition halls, stadiums, museums, commercial buildings, hospital;

Entertainments Movie theaters, clubs, bars, cafes, Internet bars, beauty shops

FAQ

Why us?

1.Timely Delivery, considerate sales after service

2.Many Years quality warranty,OEM service.

3.Top Craftmanship, All products 100% tested

4.Preferential freight by Famous shipping company

5.New Design,Very popular style products recommendation for your local market

Electric Air source heat pump dimension

Main part diagarm
