Specifications
Brand Name :
Meeting
Model Number :
MD30D-EVI-SS
Certification :
CE ISO CCC UKAS,ROHS
Place of Origin :
Guangzhou China
MOQ :
5 PCS
Price :
Negotiation
Payment Terms :
T/T, WESTERN UNION
Supply Ability :
800/MONTH
Delivery Time :
15 working days
Packaging Details :
Plywooden case
Material :
Galvanized Sheet
Copper thick :
0.8-1 mm
Compressor :
With Oil Heater
Working Temperature :
-25-45 degree
Insulation :
Foam pack Pipe and Stick on the machine innner
Display :
LCD figer Touch
Use :
Residential house
Rated heating capacity :
12KW
Housing Material :
Stainless Steel
Description

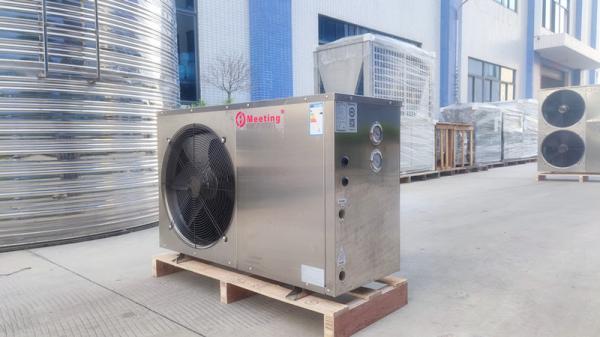

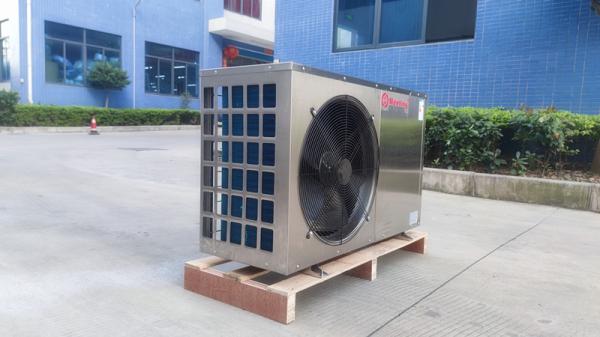

Meeting MD30D Efficient and energy-saving stainless steel heat pump adapted to low temperature environment


Technology Specification


»Auxiliary electronic heater or solar coiler is on your option

» Fashionable design, compact structure, saving the place.

»Quiet, lower the noise when the unit is running

»Advance control panel. Timer function , automatic defrosting function, optional electrical heating, error messages showed for warning.

»It can be work in -25°C -45℃ ambient temperature.

Hot water output temperature up to 60°C, for domestic hot water or heating.

auto-defrosting function included. And cooling is optional


A. Payment service
1. T/T


B. Technical service
1. We calculate the capacity and recommend the best models.
2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in and after the warranty time.
4. We supply the training course to your workers at our factory or site training if you need.
5. We welcome you to be our agent in your country.


FAQ

Why us?

1. Timely Delivery, considerate sales after service.

2. 1 Year heat pump warranty, unlimited period for online support.
--You can also pay for extended warranty or we can renegotiate the longer warranty period.

3. Top Craftmanship, All products 100% tested.

4. Preferential freight by Famous shipping company.

5. New Design,Very popular style products recommendation for your local market.


Packaging & Shipment

1> Delivery Time : Usually 15 working days after payment

2> Packaging Details :Standard export packing - plywood case with dusty-proof film inside,OEM is acceptable for Factory price.

3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.

4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order.

5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)

MODEL Unit MD30D-EVI-SS
Rated heating capacity KW 12
Rated Cooling capacity   7
Hot water supply L/h 260
Average heating input power KW 3
Rated heating input current A 13/6
Max outlet water temp 60
COP   4
Power V/Hz 220V/380V/50HZ
Noise Db(a) 54
Dimension W*D*H mm 1120*490*710mm
Packing size W*D*H mm 1190*520*865mm
Unit weight KG 108
Refrigerant   R417A/R407C/R404A/R410A
Working air temp range   (-25℃)—45℃
compressor Type   Copeland
Air source heat exchanger Type   Finned heat exchange
Fan Type   axial flow fan
Hot water side heat exchange Type   Coil heat exchanger
Water flow L/H 3000L/h
Water pressure down Kpa 40
Pipe size DN 25
Max flat square meter M2 100



Meeting MD30D Efficient and energy-saving stainless steel heat pump adapted to low temperature environment
