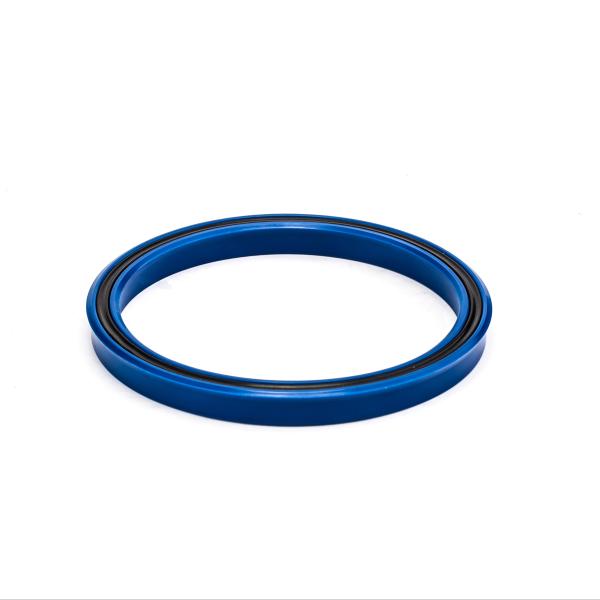

Hydraulic PU Rod Seal Main Seals MPI Rod Seals IDI 55 * 65 * 7 Excavator Hydraulic Seal Ring
Hydraulic PU Rod Seal Main Seals MPI Rod Seals IDI 55 * 65 * 7 Excavator Hydraulic Seal Ring
Hydraulic PU Rod Seal Main Seals MPI Rod Seals IDI 55 * 65 * 7 Excavator Hydraulic Seal Ring
Hydraulic PU Rod Seal Main Seals MPI Rod Seals IDI 55 * 65 * 7 Excavator Hydraulic Seal Ring
Specifications
Place of Origin :
GUANGDONG ,CHINA
Brand Name :
YOUCHANG/ZHIPAN
MOQ :
10 pcs
Price :
Negotiable price
Model Number :
MPI
Certification :
UDEM
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pcs per week
Delivery Time :
2-3 work days
Packaging Details :
PP bag ,carton, pallet
Material :
PU
Temperature(℃) :
45ºC ~ 110ºC
hardness :
95 shore
Pressure (≤MPa) :
40
Application :
Hydraulic Cylinder
Lip :
Double lip
Description
Hydraulic PU Main Seals MPI Rod Seals IDI 55*65*7 for excavator
Description
● PU Rod Seal having shorter inner sealing lip world trust hydraulic IDI seal nutrings are designed especially for rod applications.
●PU Rod Seal is the most critical seal on any type of fluid power equipment preventing leakage of fluid from within the cylinder to the outside. Besides, Leakage through the IDI Rod Seal can reduce equipment performance. And also in extreme cases can cause environmental issues and therefore it is vitally important to choose the correct rod seal type and design to suit a particular application.
● Polyurethane (PU) is a special material that offers the resilience of rubber combined with the toughness and durableness. It allows people to substitute rubber, plastic and metal with PU. Polyurethane can reduce factory maintenance and OEM product cost.Polyurethane has better abrasion and tear resistance than rubbers, and offering higher load bearing capacity.
● Retractable Hydraulic Cylinder Piston Rod U Cup Lip PU Rubber Seal Ring Rod & Piston seals are equal lip-seal which can be used for both piston seal and rod seal.
● They're also the most critical seals on any type of fluid power equipment preventing leakage of fluid from within the cylinder to the outside. Leakage through the rod or piston seal can reduce equipment performance, and also in extreme cases can cause environmental issues.
Temperature(℃): -45ºC ~ 110ºC
Speed (≤ m/s): 0.5
Pressure (≤MPa): 40
Application: Excavator ,hydraulic equipment, standard oil cylinder, machine tool, construction machinery, hydraulic press
Material: PU

Product Picture

Hydraulic PU Rod Seal Main Seals MPI Rod Seals IDI 55 * 65 * 7 Excavator Hydraulic Seal Ring

Hydraulic PU Rod Seal Main Seals MPI Rod Seals IDI 55 * 65 * 7 Excavator Hydraulic Seal Ring

Specifications
ITEM
ID
OD
H

MUS2-G

 50 60 6
MUS2-G
50
65
9
MUS2-G
55
65
6
MUS2-G
55
65
9
MUS2-G
55
68
10
MUS2-G
55
70
9
MUS2-G
60
70
6
MUS2-G
60
73
10
MUS2-G
60
75
9
MUS2-G
60
75
10
MUS2-G
65
75
6
MUS2-G
65
75
8
MUS2-G
65
78
10
MUS2-G
65
80
9
MUS2-G
65
85
12
MUS2-G
70
80
6
MUS2-G
70
83
10
MUS2-G
70
85
9
MUS2-G
70
85
10
MUS2-G
70
90
12
MUS2-G
75
85
6
MUS2-G
75
88
10
MUS2-G
75
90
9
MUS2-G
75
90
10
MUS2-G
75
95
12
MUS2-G
80
90
6
MUS2-G
80
83
10
MUS2-G
80
95
9
MUS2-G
80
95
10
MUS2-G
80
100
12
MUS2-G
85
100
9
MUS2-G
85
100
10
MUS2-G
85
100
12
MUS2-G
85
105
12
MUS2-G
90
105
9
MUS2-G
90
105
10
MUS2-G
90
105
12
MUS2-G
90
110
10
MUS2-G
90
110
12
MUS2-G
95
110
9
MUS2-G
95
110
10
MUS2-G
95
110
12
MUS2-G
95
115
12
MUS2-G
100
115
9
MUS2-G
100
115
10
MUS2-G
100
115
12
MUS2-G
100
120
10
MUS2-G
100
120
12
MUS2-G
105
120
9
MUS2-G
105
120
10
MUS2-G
105
125
12
MUS2-G
105
125
15
MUS2-G
110
125
9
MUS2-G
110
130
10
MUS2-G
110
130
10
MUS2-G
110
130
12
MUS2-G
115
130
9
MUS2-G
115
130
10
MUS2-G
115
135
12
MUS2-G
115
135
16
MUS2-G
120
135
9
MUS2-G
120
140
10
MUS2-G
120
140
12
MUS2-G
130
150
12
MUS2-G
130
150
16

Advantage
●Prevent internal pressure generation in the seal
●Pressure and oil resistance
●Suitable for demanding working conditions
●Long service life
●A wide range of temperature utilization
●Easy to install
