CFW TCV Metric Shaft Seal Double Lip Oil Seals 40mm X 62mm X 6mm For Hydraulic Sealing
CFW TCV Metric Shaft Seal Double Lip Oil Seals 40mm X 62mm X 6mm For Hydraulic Sealing
CFW TCV Metric Shaft Seal Double Lip Oil Seals 40mm X 62mm X 6mm For Hydraulic Sealing
CFW TCV Metric Shaft Seal Double Lip Oil Seals 40mm X 62mm X 6mm For Hydraulic Sealing
Specifications
Place of Origin :
GUANGDONG,CHINA
Brand Name :
YOUCHANG/ZHIPAN
MOQ :
10 pcs
Price :
Negotiable price
Model Number :
TCV 40*62*6
Certification :
UDEM
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs per week
Delivery Time :
2-3 work days
Packaging Details :
PP bag ,carton, pallet
Applicable Industries :
Sealing of rotating shafts
Style :
Mechanical Seal
Speed :
High Speed
Shape :
Round
Marketing Type :
New Product 2020
Warranty :
Unavailable
Temperature Range :
-40°C to 120°C
Material :
NBR+Iron
Color :
Blue
Description

Metric Shaft Double Lip Oil Seals CFW TCV 40*62*6 for Hydraulic Sealing
Description
1)Performance of CFW: Cfw oil seal is famous for its high temperature resistance, durability and remarkable oil sealing effect.
2)Function: The skeleton oil seal is to isolate the internal transmission position and the position to be lubricated from the output position to prevent lubricating oil from leaking. Usually used for transmission components.
3)Type of skeleton: The type of skeleton can be divided into inner skeleton oil seal, outer skeleton oil seal, and inner and outer skeleton oil seal. The skeleton oil seal is made of high-quality nitrile rubber and steel, with stable quality and long service life. Widely used in excavators, automobiles, motorcycles crankshafts, camshafts, gearboxes, shock absorbers, engines, and other parts.
Type TC TB TA SC SB SA VC VB VA KC KB KA TCV TCN DC
Temperature -40~+120ºC
Press 0~0.05MPA
Rotational Speed 0-25m/s
Medium lubricating Oil, Grease, Water
Other material of oil seal Silicone, NBR, Metal & Stainless Steel, viton, etc.
Production equipment includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines,
rubber machines, CNC machine tools, temperature-controlled ovens, and detectors
Application High-pressure hydraulic seal shaft rubber oil seal
1. Fluid system (static & dynamic)
2. Hydraulic system (dynamic)
3. Pneumatic system (dynamic)
4. Oil or grease media sealing
5. Water media sealing
6. automobile, motorcycle, industry, agricultural machinery, truck, buses, trailers,
exercise equipment.

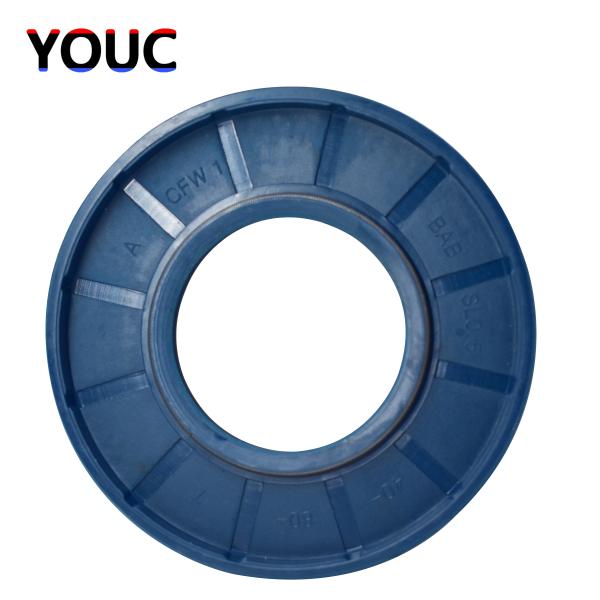

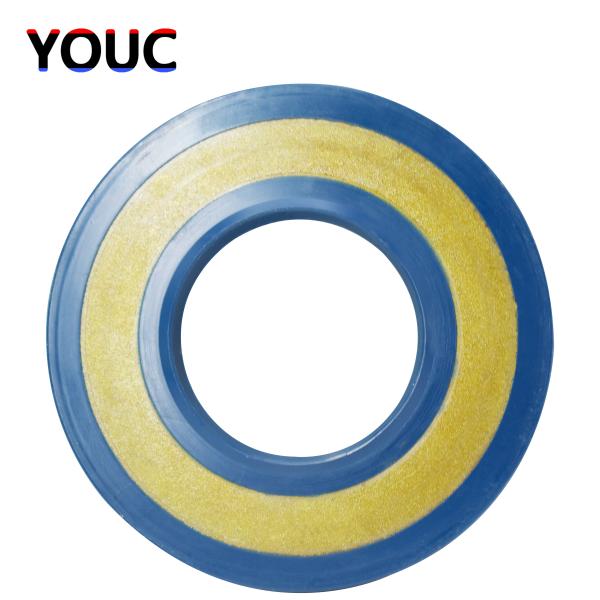

Product picture
CFW TCV Metric Shaft Seal Double Lip Oil Seals 40mm X 62mm X 6mm For Hydraulic Sealing
CFW TCV Metric Shaft Seal Double Lip Oil Seals 40mm X 62mm X 6mm For Hydraulic Sealing
Specification
ITEM
Size
Material
CFW
20*35*6
NBR
CFW
20*47*7
NBR
CFW
22*35*6
NBR
CFW
24.5872*41.2496*6.35
NBR
CFW
25*37*6
NBR
CFW
25*40*7
NBR
CFW
28*40*6
NBR
CFW
30*42*6
NBR
CFW
30*52*6
NBR
CFW
32*52*6
NBR
CFW
35*52*6
NBR
CFW
40*55*6
NBR
CFW
40*62*6
NBR
CFW
42*62*7
NBR
CFW
45*55*7
NBR
CFW
45*62*7
NBR
CFW
45*65*7
NBR
CFW
45*80*7
NBR
CFW
47.3*62*6
NBR
CFW
50*70*7
NBR
CFW
50*72*6
NBR
CFW
50*72*7
NBR
CFW
50*80*8
NBR
CFW
50*80*7
NBR
CFW
50*72*7
NBR
CFW
50*65*6
NBR
CFW
55*68*7
NBR
CFW
55*100*7
NBR
CFW
60*106*7
NBR
CFW
60*110*7
NBR
CFW
62*85*7
NBR
CFW
17*30*7
NBR
CFW
17*30*6
NBR
CFW
75*120*7
NBR
CFW
90*110*7
NBR
CFW
40*55*7
NBR
CFW
47*62*7
NBR
CFW
73*90*7
NBR
CFW
55*72*7
NBR
CFW
20*32*6
NBR
CFW
25*35*6
NBR
CFW
25*35*6
NBR
CFW
26*37*7
NBR
CFW
31.75*44.45*6.35
NBR
CFW
36.1*50.8*7.92
NBR
CFW
31.75*50.8*6.35
NBR
CFW
44.45*63.5*7.95
NBR
CFW
38.1*57.15*7.92
NBR
CFW
41.28*60.35*9.5
NBR
CFW
50*65*7
NBR
CFW
52*72*7
NBR
CFW
52*72*8
NBR
CFW
55*70*7
NBR
CFW
55*75*7
NBR
CFW
55*78*8
NBR
CFW
55*80*8
NBR
CFW
55*80*7/5
NBR
CFW
55*90*7
NBR
CFW
60*80*7
NBR
CFW
65*90*7
NBR
CFW
70*90*7
NBR
CFW
80*100*7
NBR
CFW
40*67*7/7.5
NBR
