Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744
Specifications
Place of Origin :
Guangdong, China
Brand Name :
ZHIPAN
MOQ :
10 pcs
Price :
Negotiable price
Model Number :
TCN/AP
Certification :
UDEM
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 pcs per week
Delivery Time :
5-8 work days
Packaging Details :
PP bag ,carton, pallet
Applicable Industries :
Machinery Repair Shops, Construction works
Warranty :
Unavailable
Material :
FKM/NBR(Has Metal Ring)
Type :
Skeleton Seal
Color :
Black /Brown
Size :
80*105*13mm
Packing :
neutral packing
Description

Skeleton Seal AP TCN Type NBR FKM AP3744 80*105*13 for Construction Works AP3744


Product Decriptions:

Basic introduction to oil seals TCN Oil seals TCN are a

common mechanical seal that is widely used in various mechanical equipment to prevent lubricating oil leakage and external contaminants from entering. TCN oil seals are composed of rubber and metal skeletons and have good wear resistance and sealing performance. Its main feature is the double lip design, with the inner lip used to seal the oil and the outer lip used to prevent dust.

Material : FKM/NBR(Has Metal Ring
Application: Cylinder
Type: Skeleton Seal
Performance: High Temperature,High Pressure

  • Special design for heavy dirt exclusion.
  • With a press fit on the shaft and also in the
  • housing it is easy to install and replace without damage to the shaft or the housing.
  • Variations as well as custom designs are available for different equipment and applications.

Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744

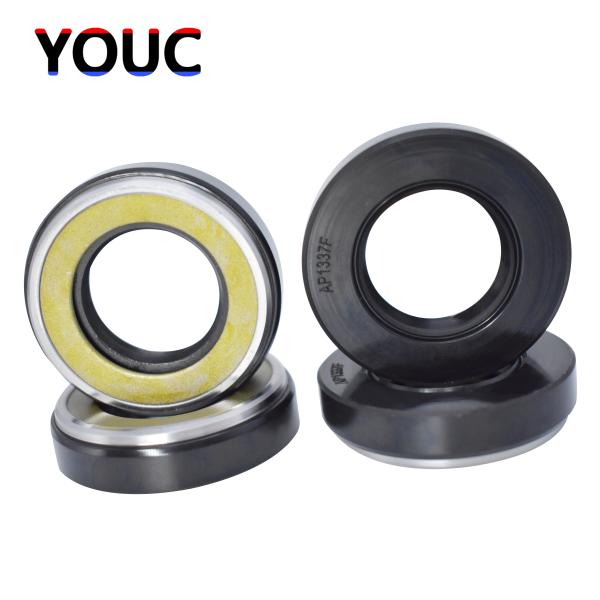

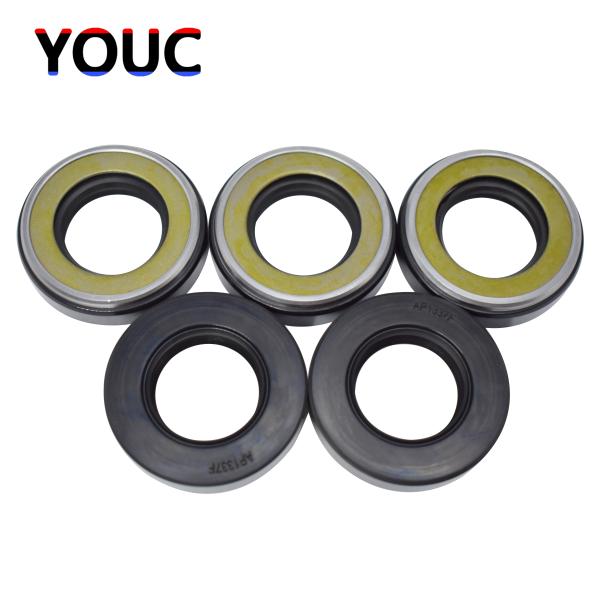

Product display:


Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744

Skeleton Seal AP TCN Type NBR FKM AP3744 80mm X 105mm X 13mm AP3744

SIZE DETAILS:

Dimensions
Part Number
Shaft diameter Outside diameter Width
d D b
28 48 11 AP 1563 J4
30 50 11 AP 1709 H4
32 52 11 AP 1904 F3
34 54 11 AP 1978 G1
35 55 11 AP 2085 G1
38 58 11 AP 2240 G4
40 62 11 AP 2388 E5
42 65 12 AP 2507 H2
45 68 12 AP 2668 G4
48 70 12 AP 2791 G0
50 68 12 AP 2850 E0
50 72 12 AP 2864 I3
55 78 12 AP 3055 F3
60 82 12 AP 3222 B6
62 85 12 AP 3297 G3
65 88 12 AP 3400 I0
65 90 13 AP 3409 F1
70 92 12 AP 3519 I0
70 95 13 AP 3527 B9
75 100 13 AP 3618 G7
80 105 13 AP 3744 K5
85 110 13 AP 3842 H3
90 115 13 AP 3932 B7
95 120 13 AP 3994 B7
100 125 13 AP 4063 B0
105 135 14 AP 4153 H0
110 140 14 AP 4212 B0
115 145 14 AP 4282 G0
120 150 14 AP 4346 B7
125 155 14 AP 4399 E0
130 160 14 AP 4451 G3
135 165 14 AP 4498 G0
140 170 14 AP 4542 F0
150 180 14 AP 4624 G0
