Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring
Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring
Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring
Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring
Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring
Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring
Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring
Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring
Specifications
Brand Name :
ZHIPAN
Model Number :
ROD SEAL
Certification :
UDEM
Place of Origin :
GUANGDONG ,CHINA
MOQ :
10 pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs per week
Delivery Time :
2-3 work days
Packaging Details :
PP bag ,carton, pallet
Seal Type :
Double lip Seal
Application :
Hydraulic Cylinder
hardness :
90 shore
Color :
Red
Temperature Range :
-40° to 120°
Structure :
Wtih NBR X ring
Description
Polyurethane PU With X Ring Rod Seals for High Pressure and High Speed
Product Description

The sealing type of our rod seals is a double lip seal, which is the most common seal type found in hydraulic systems. Double lip seals act as a barrier, preventing fluid from leaking from the hydraulic system and preventing contaminants from entering the system.

Our rod seals operate at speeds up to 3 ft/sec, making them ideal for applications requiring high speed operation. Rod seals are designed to withstand high pressures and high speeds, ensuring your hydraulic system remains efficient and reliable.

The material used to manufacture our rod seals is polyurethane, a material known for its excellent resistance to high pressures, temperatures and other chemicals

Features

  • Product Name: ROD SEAL
  • Operating Speed: Up To 3 Ft/s
  • Maximum Clearance: 0.015
  • Installation Type: Snap-in
  • Maximum Extrusion Gap: 0.020
  • Features: DOUBLE LIP

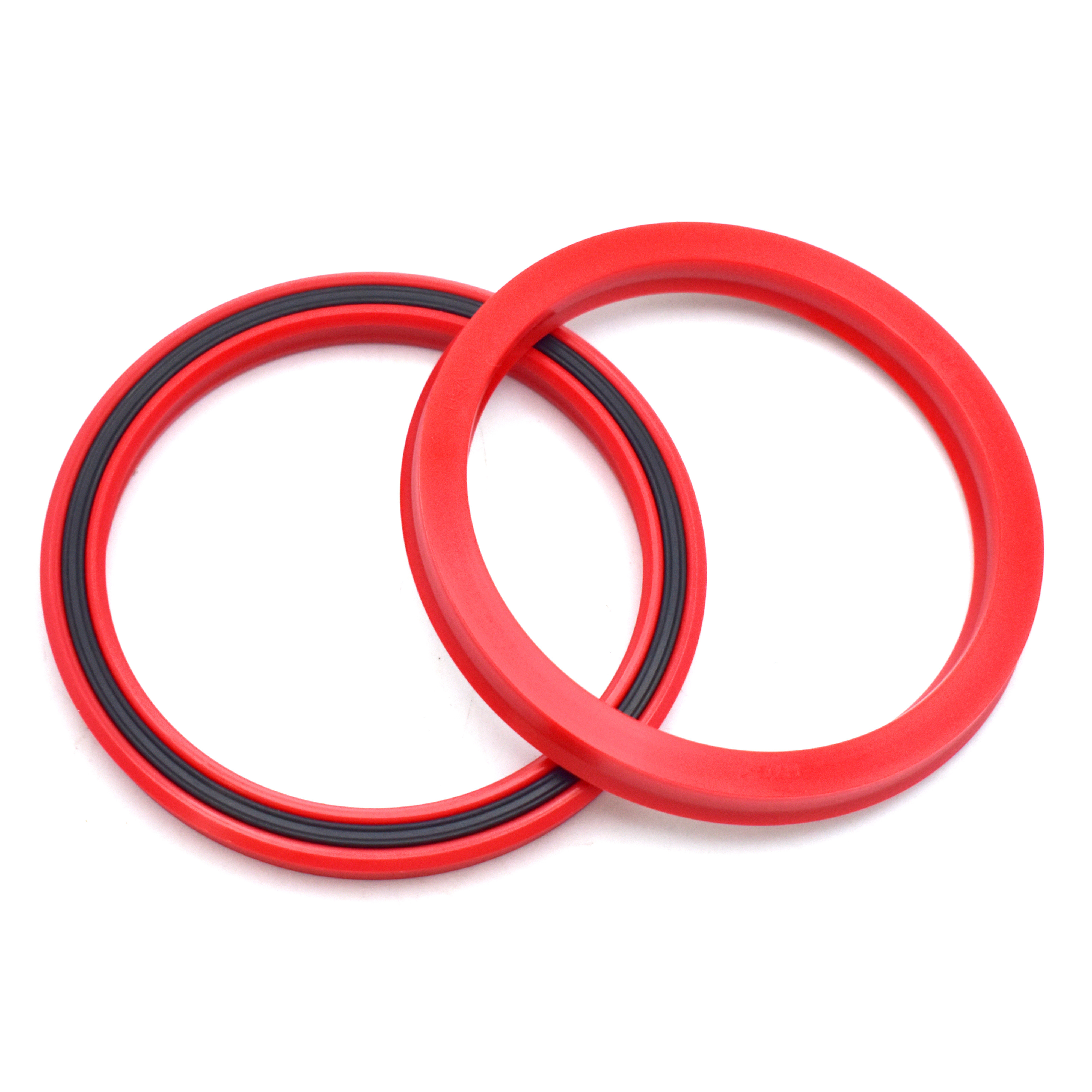

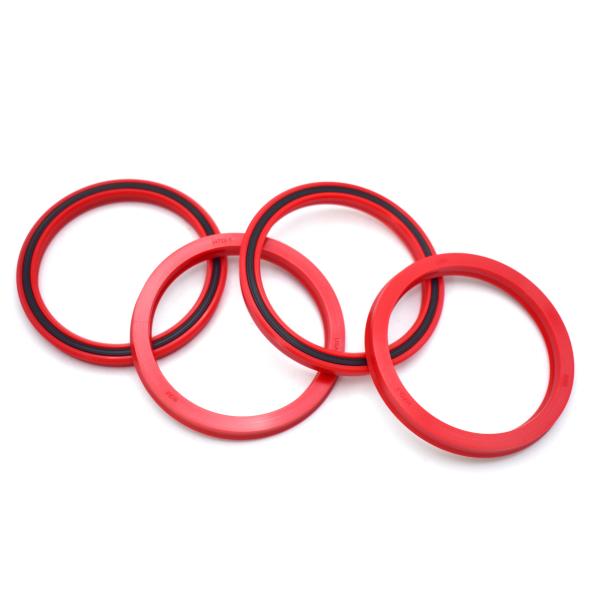

Product Display

Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring

Polyurethane PU X Ring Seals Rod Seals High Speed High Pressure O Ring

Specifications:
Part No Size
Rod seal 30*40*7
Rod seal 45*55*7
Rod seal 60*70*7
Rod seal 40*50*6
Rod seal 45*55*6
Rod seal 50*60*6
Rod seal 55*65*6
Rod seal 60*70*6
Rod seal 65*75*6
Rod seal 70*80*6
Rod seal 75*85*6
Rod seal 80*90*6
Rod seal 45*55*8
Rod seal 50*60*8
Rod seal 55*65*8
Rod seal 60*70*8
Rod seal 65*75*8
Rod seal 70*80*8
Rod seal 50*65*9
Rod seal 55*70*9
Rod seal 60*75*9
Rod seal 65*80*9
Rod seal 70*85*9
Rod seal 75*90*9
Rod seal 80*95*9
Rod seal 85*100*9
Rod seal 90*105*9
Rod seal 95*110*9
Rod seal 100*115*9
Rod seal 105*120*9
Rod seal 110*125*9
Rod seal 115*130*9
Rod seal 120*135*9
Rod seal 130*145*9
Rod seal 50*63*10
Rod seal 55*65*810
Rod seal 60*73*10
Rod seal 65*78*10
Rod seal 70*83*10
Rod seal 75*88*10
Rod seal 80*93*10
Rod seal 80*95*10
Rod seal 85*100*10
Rod seal 90*105*10
Rod seal 95*110*10
Rod seal 100*115*10
Rod seal 105*120*10
Rod seal 110*125*10
Rod seal 110*130*10
Rod seal 115*130*10
Rod seal 45*65*12
Rod seal 50*70*12
Rod seal 55*70*12
Rod seal 55*75*12
Rod seal 60*80*12
Rod seal 65*80*12
Rod seal 65*85*12
Rod seal 70*90*12
Rod seal 75*95*12
Rod seal 80*100*12
Rod seal 85*105*12
Rod seal 90*110*12
Rod seal 95*115*12
Rod seal 100*120*12
Rod seal 105*125*12
Rod seal 110*130*12
Rod seal 115*135*12
Rod seal 120*140*12
Rod seal 130*150*12
Rod seal 135*155*12
Rod seal 140*160*12
Rod seal 160*180*12
Rod seal 115*135*16
Rod seal 120*140*16
Rod seal 130*150*16
Rod seal 170*190*16
Rod seal 180*205*16
