Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy
Specifications
Brand Name :
ZHIPAN
Model Number :
ROD SEAL
Certification :
UDEM
Place of Origin :
GUANGDONG ,CHINA
MOQ :
10 pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pcs per week
Delivery Time :
2-3 work days
Packaging Details :
PP bag ,carton, pallet
Material :
PU
Temperature(℃) :
45ºC ~ 110ºC
hardness :
90 shore
Pressure (≤MPa) :
40
Application :
Hydraulic Cylinder
Feature :
High Temperature Resistance
Type :
Single
Description

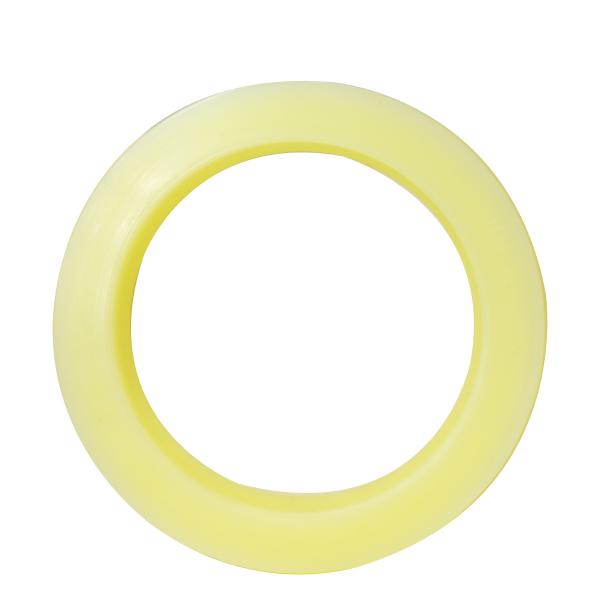

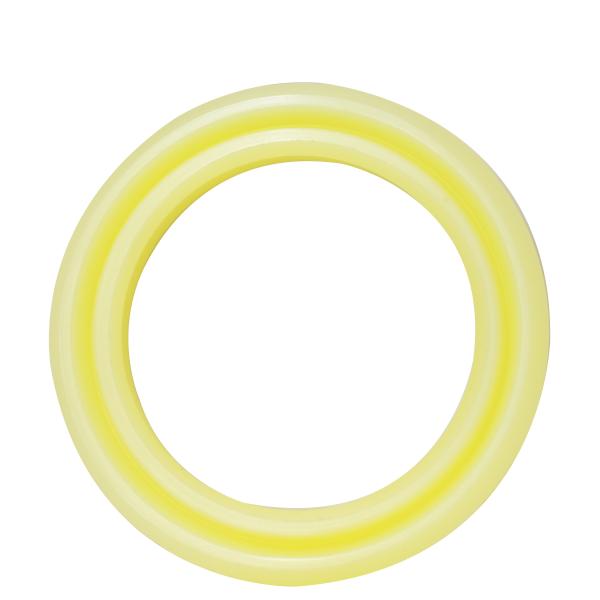

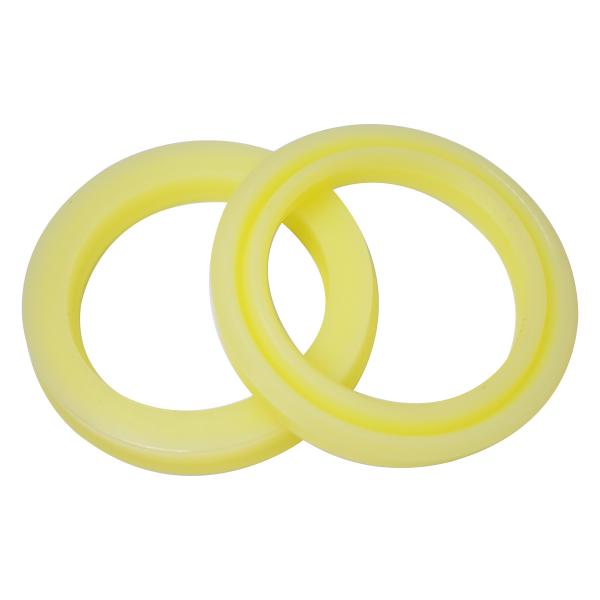

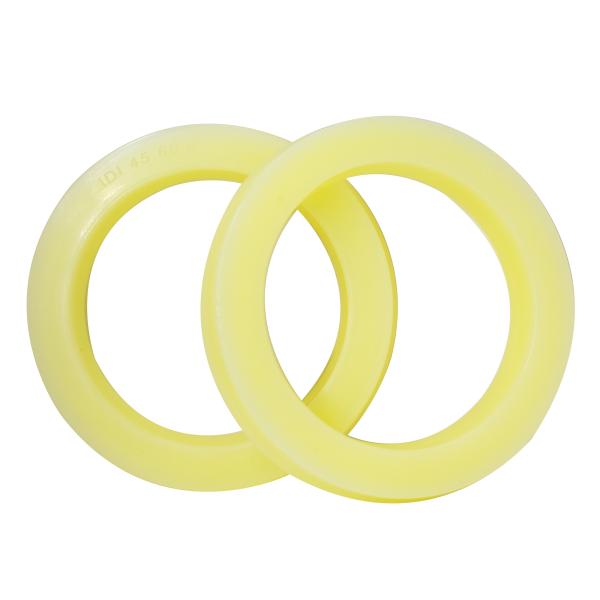

Hydraulic seal Rod Seals IDI ISI 45*65*12 for excavator cylinder seal kit Creamy
Product Description:

Design:

Single acting rod seal for earthmoving and other heavy duty

applications:
Useful in low and high pressure applications.
Optional Nylon backup ring will increase maximum sealing pressure


Material:
PU94A Polyurethane with low compression set, high modulus of
elasticity and excellent resistance to abrasion.
Optional Nylon Backup ring


Application
Used in heavy duty agricultural, earthmoving and industrial machinery.


Fluids
Hydraulic fluids, petroleum fuels and oils

Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy

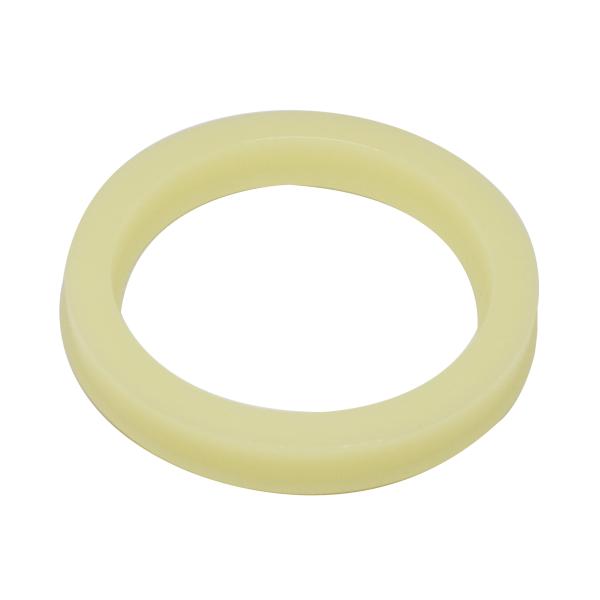

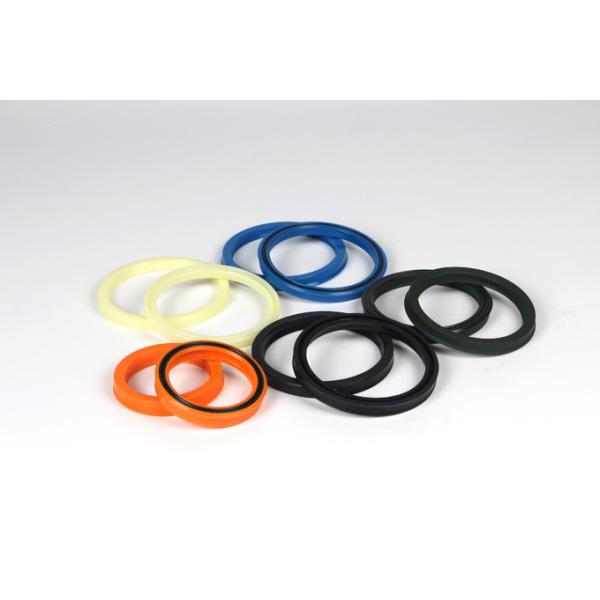

Product Display

Yellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types CreamyYellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types CreamyYellow Hydraulic Rod Seal IDI ISI 45 X 65 X 12mm Hydraulic Cylinder Piston Seal Types Creamy

Specifications:
ITEM ID OD H
ROD SEAL 50 60 6
ROD SEAL 50 65 9
ROD SEAL 55 65 6
ROD SEAL 55 65 9
ROD SEAL 55 68 10
ROD SEAL 55 70 9
ROD SEAL 60 70 6
ROD SEAL 60 73 10
ROD SEAL 60 75 9
ROD SEAL 60 75 10
ROD SEAL 65 75 6
ROD SEAL 65 75 8
ROD SEAL 65 78 10
ROD SEAL 65 80 9
ROD SEAL 65 85 12
ROD SEAL 70 80 6
ROD SEAL 70 83 10
ROD SEAL 70 85 9
ROD SEAL 70 85 10
ROD SEAL 70 90 12
ROD SEAL 75 85 6
ROD SEAL 75 88 10
ROD SEAL 75 90 9
ROD SEAL 75 90 10
ROD SEAL 75 95 12
ROD SEAL 80 90 6
ROD SEAL 80 83 10
ROD SEAL 80 95 9
ROD SEAL 80 95 10
ROD SEAL 80 100 12
ROD SEAL 85 100 9
ROD SEAL 85 100 10
ROD SEAL 85 100 12
ROD SEAL 85 105 12
ROD SEAL 90 105 9
ROD SEAL 90 105 10
ROD SEAL 90 105 12
ROD SEAL 90 110 10
ROD SEAL 90 110 12
ROD SEAL 95 110 9
ROD SEAL 95 110 10
ROD SEAL 95 110 12
ROD SEAL 95 115 12
ROD SEAL 100 115 9
ROD SEAL 100 115 10
ROD SEAL 100 115 12
ROD SEAL 100 120 10
ROD SEAL 100 120 12
ROD SEAL 105 120 9
ROD SEAL 105 120 10
ROD SEAL 105 125 12
ROD SEAL 105 125 15
ROD SEAL 110 125 9
ROD SEAL 110 130 10
ROD SEAL 110 130 10
ROD SEAL 110 130 12
ROD SEAL 115 130 9
ROD SEAL 115 130 10
ROD SEAL 115 135 12
ROD SEAL 115 135 16
ROD SEAL 120 135 9
ROD SEAL 120 140 10
ROD SEAL 120 140 12
ROD SEAL 130 150 12
ROD SEAL 130 150 16
