Specifications
Brand Name :
ZHIPAN/YOUC
Model Number :
KDAS
Certification :
UDEM
Place of Origin :
Guangdong, China
MOQ :
10pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
PP bag ,carton, pallet
Material :
NBR+POM
Temperature Range :
-30°C to 100°C
Operating Speed :
Up to 5 m/s
Hardness :
90-95 Shore A
Pressure Range :
0 to 400 bar
Elongation At Break :
400-500%
Seal Type :
Piston Seal
Color :
Blac&Blue
Description

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44

Product Descriptions
KDAS Piston Seal, the combination seal ring is a double acting piston seal ring, two retainers, and two wear-resistant rings. There is a real sealing element in the middle; There are setting a retaining ring and a wear-resistant ring on each side. Besides, the retaining ring prevents the sealing ring from being squeezed into the clearance. The sealing ring in the middle is a dentate sealing ring, which can play a good role in static and movement. In addition, the wear ring ACTS as a guide to the piston in the cylinder and bears the radial force.

Product parameters

Product of Origin

Guangzhou,China
Product of Shippment Guangzhou,China
Product Application Excavators,Loaders,Breakers ,Graders and Other Construction Works
Products name KDAS/DAS
Material POM / TPU polymer or NBR
Color Black +Blue
Sizes 20~250mm
Pressure 0~35MPa
Temperature -30℃ +120℃
Speed 0.5m/s
Dimension Oversize Dim0.030
Service Can be wholesale,Retail and Custom-made
Medium petroleum base hydraulic oil,nonflammable hydraulic oil, environmental protection hydraulic oil
Feature High Temperature Resistance,High Pressure Resistance,High Wear Resistance
Application industries Machinery RepairShops,Construction &Excavation Machinery,Industrial Hydraulic Systems&Heavy Equipment

Product Advantages
Good sealing effect, also suitable for holding cylinders Insensibility against shock loads and pressure peaks
Capable of installation in closed grooves ofr reduced machining costs Easy installation.

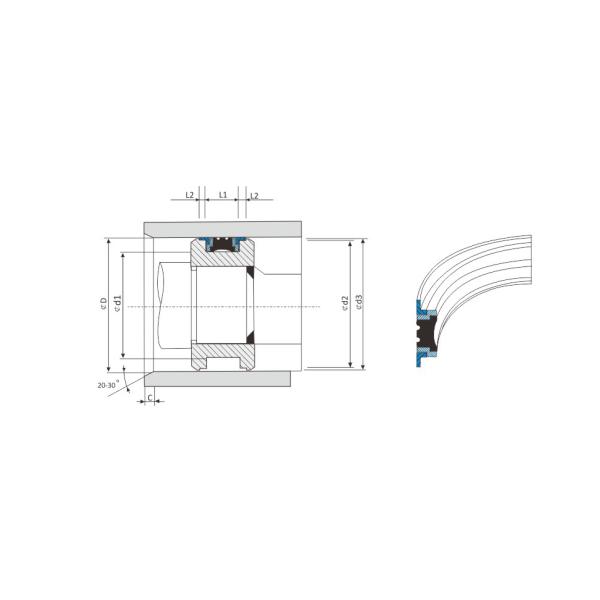

Transverse Section‌

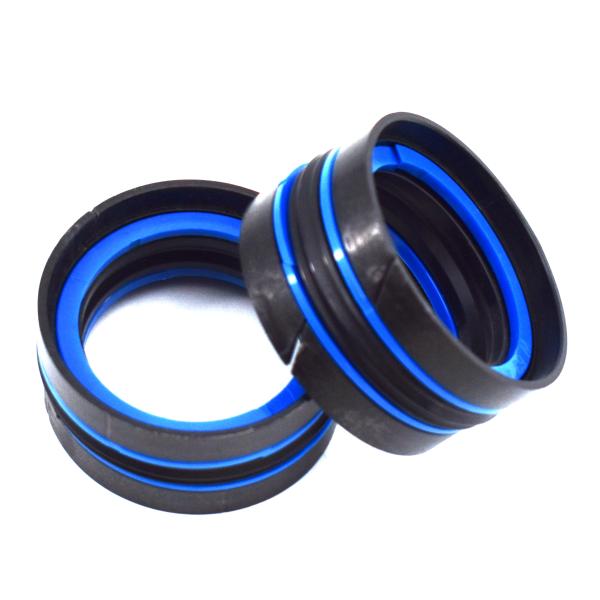

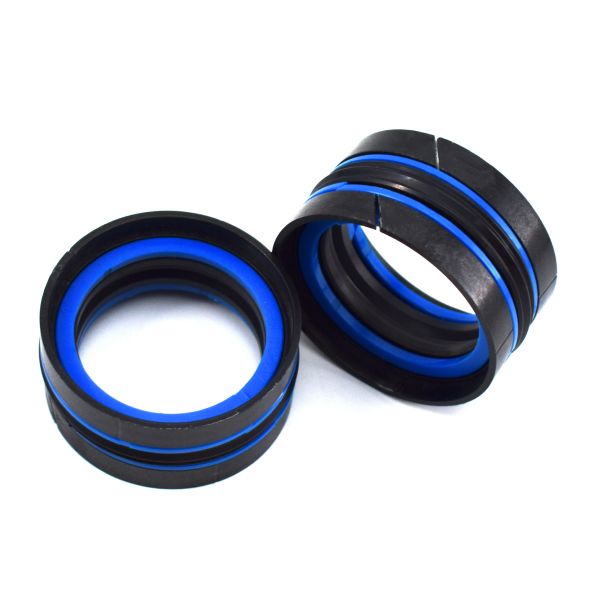

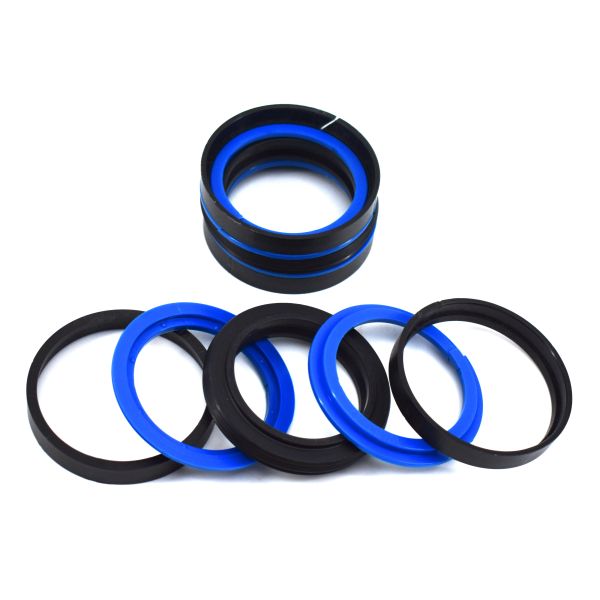

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44Product Display

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44

Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44Excavator Hydraulic Piston Seal Repair ‌Kdas For Construction Machinery Oil Seals ‌60×44

Size Details

KDAS 20*11
KDAS 22*13
KDAS 25*15
KDAS 25*16
KDAS 28*19
KDAS 30*21
KDAS 32*22
KDAS 32*22
KDAS 32*24
KDAS 35*25
KDAS 35*25
KDAS 40*24
KDAS 40*26
KDAS 40*30
KDAS 40*30/1
KDAS 40*32
KDAS 42*28
KDAS 45*29
KDAS 45*31
KDAS 45*35
KDAS 50*34
KDAS 50*34
KDAS 50*38
KDAS 55*39
KDAS 55*39
KDAS 56*40
KDAS 60*44
KDAS 60*44
KDAS 60*48
KDAS 63*47
KDAS 63*51
KDAS 65*49
KDAS 65*50
KDAS 70*50
KDAS 70*54
KDAS 70*58
KDAS 75*55
KDAS 75*59
KDAS 80*60
KDAS 80*62
KDAS 80*66
KDAS 85*65
KDAS 90*70
KDAS 90*72
KDAS 90*76
KDAS 95*75
KDAS 100*80
KDAS 100*75
KDAS 100*82
KDAS 100*86
KDAS 105*80
KDAS 110*85
KDAS 110*92
KDAS 110*96
KDAS 115*90
KDAS 115*97
KDAS 120*95
KDAS 120*106
KDAS 125*100
KDAS 125*103
KDAS 125*108
KDAS 130*105
KDAS 130*105
KDAS 135*110
KDAS 135*110
KDAS 140*115
KDAS 140*115
KDAS 140*123
KDAS 140*118
KDAS 145*120
KDAS 150*125
KDAS 150*125
KDAS 150*128
KDAS 150*133
KDAS 150*130
KDAS 160*130
KDAS 160*135
KDAS 160*143
KDAS 165*140
KDAS 170*145
KDAS 170*148
KDAS 175*150
KDAS 180*155
KDAS 180*150
KDAS 185*160
KDAS 190*165
KDAS 195*170
KDAS 200*175
KDAS 200*170
KDAS 210*185
KDAS 220*195
KDAS 220*190
KDAS 230*205
KDAS 240*215
KDAS 250*225
KDAS 250*220
