Alkaline AA Battery Bulk Pack LR6 cylindrical dry battery AA battery LR06 AA Battery Packs
Alkaline AA LR6 AA Alkaline 1.5V Batteries LR06 LR6 AA ultra alkaline batteries are of the latest generation batteries
AA/LR6 Alkaline Batteries without mercury or cadmium.
Size AA alkaline cell with Long-life with much longer lifespan than conventional batteries.
For cameras, bicycle lights, radio-controlled toys etc
Manufactured using Alkaline AA batteries to ensure high-quality cell construction.
Each battery comes with a ‘quality warranty’.
Design, safety, manufacturing, and qualification follow stringent battery standards, which incorporate parts of the ANSI and IEC battery standards.
Economically packaged in bulk and individually date-coded for effective inventory management.
Used by manufacturers around the world: Our Alkaline batteries have been designed in collaboration with manufacturers to work best in professional devices.
Alkaline 1.5V LR6 MN1500 LR6 type battery is a standard 1.5 volt double-A (AA) battery
LR6 AA 1.5v Non-Rechargeable Battery 1.5V AA alkaline battery with a high energy output that is reliable, with a long shelf life, and good low temperature performance.
Alkaline battery Lr6 Specifications
Chemical System: Alkaline (Zn/MnO2) battery
IEC Name: LR6 or R6
ANSI/NEDA: 15A (AA)
Average Weight: 22.5+-5g
Dimension(∅ x H): 14.0±0.5 x 50.0 mm
Nominal Voltage: 1.5 V
Method of sampling : ISO2859 level II single sampling normal inspection.
Voltmeter : Digital Voltmeter with the precision of 1mV
(internal resistance not less than 1 Megohm)
Test temperature : 20 ± 2°C
AA battery R6 alkaline dry cell 1.5Volt battery drwaing
Data sheet for AA LR6 batteries
Model | LR6 AA |
Diameter | 13.5-14.5 |
Height | 49.2-50.5 |
Norminal voltage | 1.5 volt |
Test condition/discharge time | 10Ω, 24h/d, 0.9V / 19.1H |
3.9Ω, 24h/d, 0.9V / 6.4H | |
Storage time | more than 5 years |
LOGO | OEM |
Package | Welcome OEM customer logo too |
Battery pack | any combinations welcome customized |
AA battery packing information LR6
Type | Blister packing | Shrink packing | ||||||||
Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
LR6/ AA/ 1.5v | 4B/card | 20 cards | 160 cards | 391*303*193mm | 16.6 kgs | 4S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs |
2S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs |
Hot sale Alkaline batteries from Hynna
Primary Alkaline cell 1.5 volt
Model | Diameter mm | Height mm | Norminal Voltage V | Test condition | Discharge |
23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
LR03/AAA/七号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
3.9Ω, 24h/d, 0.9V | 2.5h | ||||
LR6/AA/五号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
3.9Ω, 24h/d, 0.9V | 6.4h | ||||
LR14/C/二号 | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
6.8Ω, 1h/d, 0.9V | 39h | ||||
LR20/D/大号 | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
3.9Ω, 1h/d, 0.9V | 42h | ||||
6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
270Ω, 1h/d, 5.4V | 1150min |
Rechargeable battery 1.5volt Alkaline battery HR03 alkaline battery HR6
Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
HR03/AAA/7号 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
HR6/AA/5号 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Attentions:
1) Batteries should be placed in a cool place before use
2) Please install the battery according to the positive and negative (+/-) polarity instructions of the electronic product.
3) Never mix different brands, different types or old and new batteries
4) Never charge, disassemble, damage or dispose of battery in fire
5) Never connect the positive and negative (+/-) terminals of the same battery
6) Never put unpackaged batteries in your pocket
7) If you do not use electronic products for a long time, please remove the batteries
8) Never swallow batteries
9) Batteries are not toys, please do not let children touch or use them

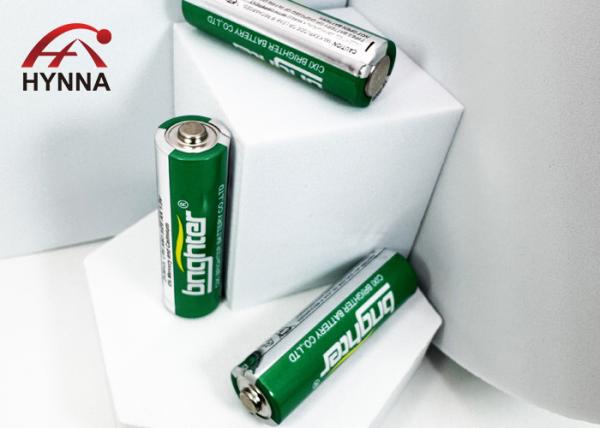

Non rechargeable AA battery LR06 alkaline battery lr6 picture:
