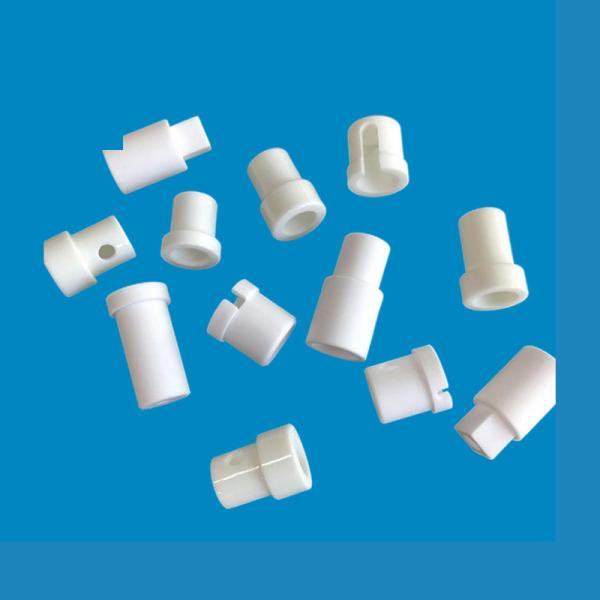

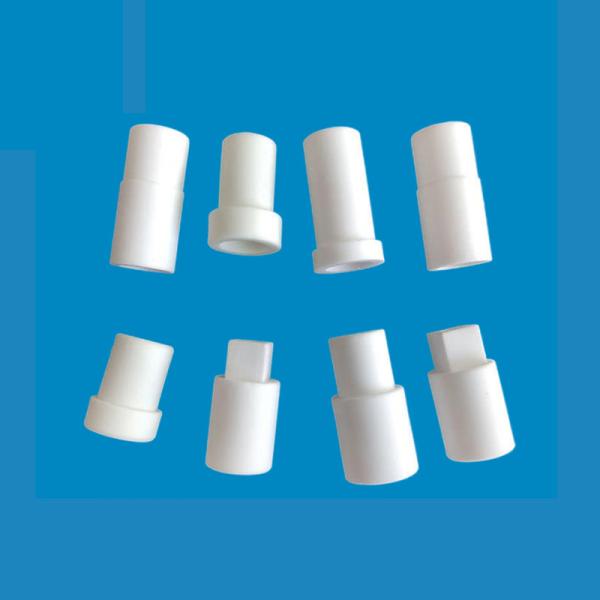

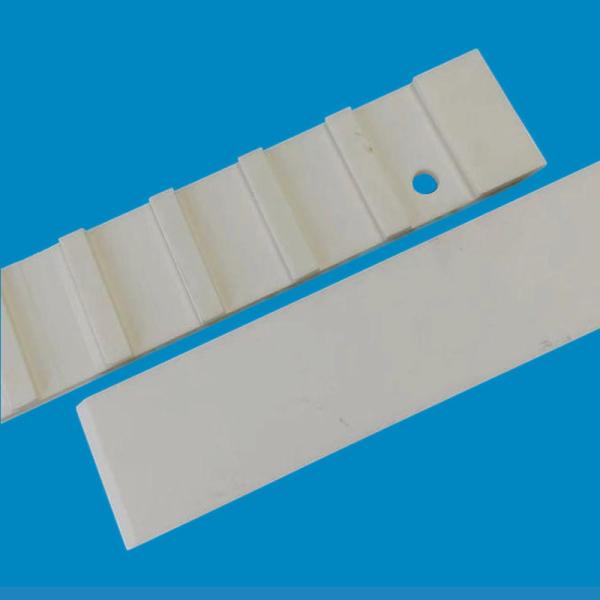

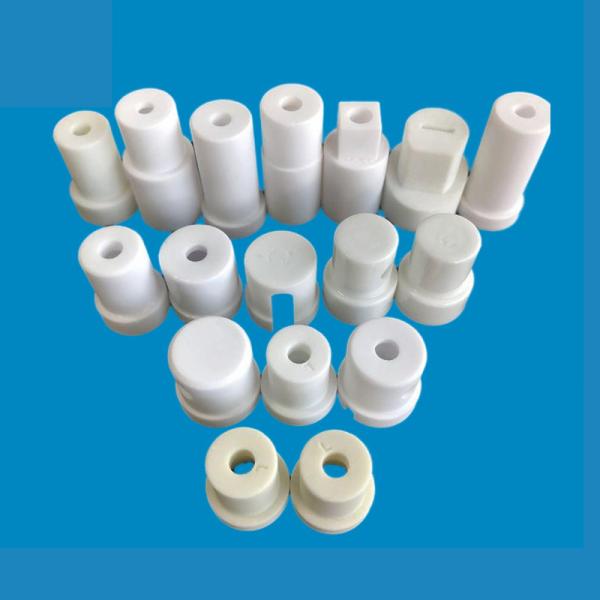

340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
Specifications
Brand Name :
HENGYUAN
Model Number :
95% Alumina Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
95% Alumina Ceramics
Color :
White
Weibull Modulus :
10M
Modulus of Elasticity :
340 Gpa
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description

Alumina Ceramic is widely used in various industries. Alumramic has good performance in electrical insulation, high corrosion resistance and wear resistance.The maximum working temperature is up to 1600 °C with excellent thermal conductivity.

Naterial Unit

A95%

Alumina Ceramics

A97%

Alumina Ceramics

A99%

Alumina Ceramics

A99.7%

Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardulus HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
*Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10
