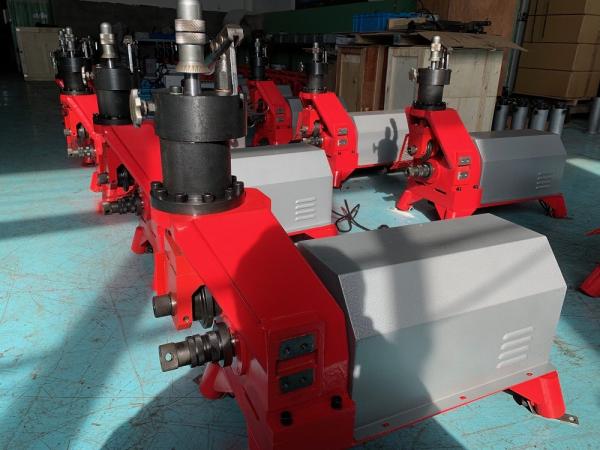

This hydraulic roll groover equips with updated hydraulic pump, with convenient depth adjusting function, powered by 1100w induction motor, is capable of grooving 2”-12” pipes. Separate knurling roller design of drive shaft for convenient replacement.

1) Popular size – capacity from 2 inch to 12 inch pipe grooving
2) Hot-sale in Egypt
3) Competitive price
4) Standard with pipe stands and all size pinch roller, knurl wheel

Model: STGS325C
Capacity: 2″-12″ (60-325mm) steel pipe
Pipe wall-thickness: : Max.6mm
Motor power: 1100w
Speed: 23rpm
G.W./N.W.: 125kgs/105kgs
Packing size: Plywood case 93×73.5×80.5cm
With 3pcs knurl wheel and 2pcs pinch roll free parts and pipe rest

1) More powerful starting torque, high efficiency.
2) Groove depth limitation device.
3) Adapt cycloidal reducer, low noise.
4) Axis and other main parts are made of high quality alloy steel with heat treatment.

OPERATION OF ROLL PIPE GROOVING MACHINE
Choose the right pinch roller and knurl wheel and install them onto the roll grooving machine.
Put the pipe on the knurl wheel and pipe stands. The pipe stands should be placed at the position of 3/4 length of pipe. Then adjust the pipe stands height to make sure the pipe are 1 degree lower than the horizantal level.
Tighten the relief valve, shake the hydraulic pump handle, let the pinch roller going downward until it touch the surface of pipe end. Rotate the limit nut down, make it contact with the oil pump top frame. Check the correct data of groove depth for different diameter pipes in the chart. For instance, if we roll groove on a 8 inch pipe, the depth will be 2.34mm. Calculate from the red start line, rotate the limit nut 2.34mm up, then turn the fastening nut down until it touch the limit nut and fix it. (One circle rotation on the limit nut is equal to 2.5mm) Rotate the side guide wheel to support the pipe. Release the relief valve.
Connect the power plug, turn on the switch to run the machine. Tighten the relief valve again and pump the handle to start grooving. Continue to swing the handle until the limit nut reach the oil pump top (Please do not swing too fast). Allow the pipe to rotate additional one or two turns to make sure the groove is completed. At last turn off the switch and release the relief valve knob. Rotate the guide wheel to make it away from the pipe. Remove the pipe and check the groove depth with a pipe groove measuring tape.

FAQ

1. WHO ARE WE?
We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.
2. HOW CAN WE GUARANTEE THE QUALITY?
We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.
3. WHAT CAN YOU BUY FROM US?
All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.
4. WHY SHOULD YOU BUY FROM US NOT FROM OTHER SUPPLIERS?
We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
5. HOW LONG IS THE LEADTIME?
Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.
6. HOW CAN YOU PLACE ORDER?
We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.
7. HOW TO SHIP?
We ship by sea to port for bulk order and we also ship to door for small shipment.
8. WHAT IS THE MOQ?
Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.
9. IS OEM ACCEPTABLE?
Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
