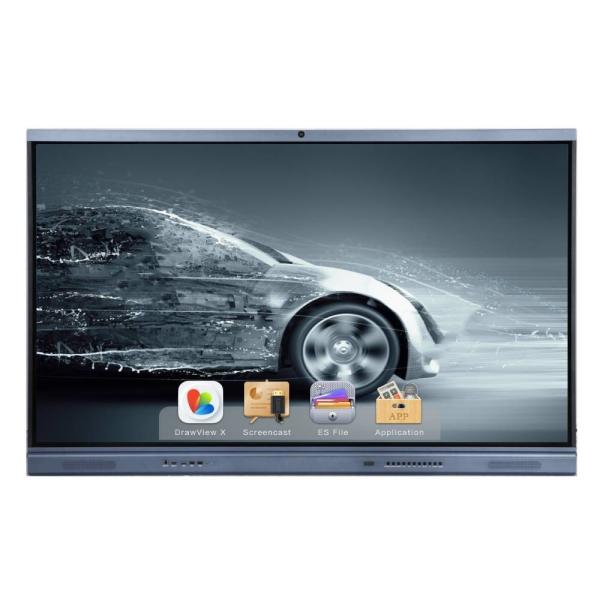

Android 3+32G Camera Mic 4K Interactive Flat Panel 75 Inch for School Education
Android 3+32G Camera Mic 4K Interactive Flat Panel 75 Inch for School Education
Specifications
Brand Name :
iBoard or OEM
Model Number :
TE-XP-86
Certification :
CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001
Place of Origin :
Shenzhen, CHINA
MOQ :
10
Price :
USD1350-1470
Payment Terms :
T/T, L/C
Supply Ability :
10000 units per month
Delivery Time :
30 days
Packaging Details :
Carton Package
Android version :
9.0
Touch points :
20 points
Operation OS :
Windows/Android/LINUX/Mac
Application :
school/office/video meeting/training/presentation
Camera :
Optional
Mic :
Optional
Package :
carton box
Wireless sharing :
available
Main frequency :
default 1.2G
Rated voltage :
AC(100-240)V～50/60HZ
Aspect Radio :
16:10, 16:9...
Interface :
USB, VGA, RS232, HDMI
Screen Size :
65",75",86", 98"
Multi-Touch :
Up to 40 points
Hotkeys :
Two sides hotkeys
Shipping Way :
Sea Shipping Air Freight Truck Freight
Warranty :
1 year
Power Supply :
AC 100-240V, 50/60Hz
Operation System :
Andriod/Windows/Linux/Mac.etc.
Accuracy :
2mm
Mobile Stand :
Optional
Colors :
Black Or OEM
Description

Interactive Flat Panel 4K Panel Display 65 75 86 Android 3+32G Camera Mic For School Kids Video meeting Training

Applications:

Our interacative whiteboard flat panel display has widely used in school, office,video meeting, training,presentation,online teaching,etc.And our workable size is 65inch,75inch,86inch,etc. OEM and ODM available.We also have technical team to provide professionl service.

Advantages:

1. Latest touch solution, with android 9 or 11 optional

2. Supporting dual OS operation:Windows/Android/Linux/Mac.

3. Supporting wireless sharing,1 upto 9 screen at one time

4. with Powerful annotation software, available to QR share/cloud save annnotation file

5. Optional to be built in 4K camera and Mic.

6. Optional to be with Face recognization/NFC/Fingerprint recognization

Model TE-XP-65
Display type DLED
Resolution 3840*2160
Brightness 350cd/㎡
Contrast ratio 1200:1
Display area 1428.5*803.5 mm(64.53 inch)
Panel ratio 16:9
View angle 178°
Color 10bit,1.07 billion color
Video format PAL,NTSC,SECAM
Sound format D/K, B/G, I,M
CPU Quad core A55
Main frequency default 1.2G
Andriod version 9.0
Flash 16G/32G EMMC
RAM 2G/3 DDR4
VGA input resolution 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz
First touch response time <19ms
Input ports

Back IO input:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB 2.0,1*TOUCH-USB,1*RS232,1*TF,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth,1*OPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN)

Front IO input:1*HDMI(Max supporting 3840*2160/60Hz),1*TOUCH USB,3*USB
Output port Back IO OUTPUT:1*COXIAL,1*EARPHONE
Front keys 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,REC,A.BLUE,PC,ES,RATIO,HOME)
Short cut NO
Rated voltage AC(100-240)V～50/60HZ
Rated current 2.5A(including OPS)
Working temperature 0°C～45°C
Touch points Single/Two/Four/Six/Ten points
Touching mode Fingers or pen
Location technology Ifrared
Location accuracy <2mm
Location resolution 4096*4096/16384*16384/32768*32768
Continuous response time <8ms
Cursor speed >180 dot/second
Communication port of touch system USB
Operating system WINDOWS/LINUX/MAC /Android
Effective object size ≥Φ3mm
Touch times More than 60,000,000 times at one position
Accessory Touch pens x 2
HDMI cable(2M) x 1
Touch USB cable 1.5M x 1
Power supply cord(1.8M) x 1
Installation DVD x 1
Remote controller x 1
Warranty card x 1
Product size 1469.1*916.6x93.2mm
Packing size 1646x1074x240mm
N.W. Approx.38Kg(Plastic cover)
G.W. Approx.52kg
