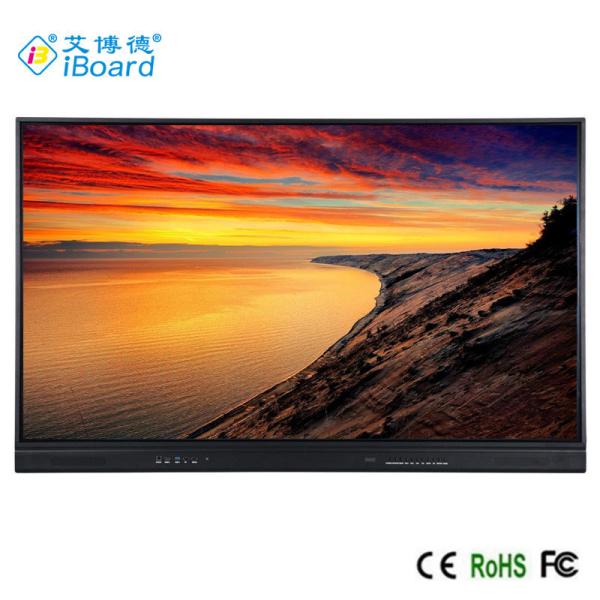

Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business
Specifications
Brand Name :
iBoard or OEM
Model Number :
YL5-86
Certification :
CE/FCC/ROHS
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
USD900 - USD1800/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 units/month
Delivery Time :
10-30 Working Days
Packaging Details :
Carton or wooden packaging, oem available
Material :
Aluminium Frame
Screen Type :
LED
Brightness :
350cd/m²
Touch Points :
10 points to 20 points
Support OPS :
One OPS Slot (Optional)
Lifetime :
50000 hrs
Interface :
USB2.0/3.0, HDMI etc.
Description

Interactive Flat Panel 86 inch IR Touch Smartboard 4K Display All-in-One PC Android8 for School Classroom

Specifications

Display
Screen Type TFT LED Display Ratio 16:9
Display Area 1895.04*1065.96mm(85.6 inch) View Angle 178°
Resolution 3840(H) x 2160(V) Response Time 6.5 ms
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 1200:1 Life Time 50,000 Hrs
Glass 4mm acid-etched tempered glass
TV SYSTEM
Connection N/A Sound System D/K, B/G, I, M
Video System PAL, NTSC, SECAM Channel N/A
Sound/SPeaker features
Speaker Type Built-In Speaker output 15W * 2
Audio Stereo Balance, Auto volume control, surround sound
android system
Android Version Android 11.0 GPU G52*8
CPU
CPU A73*4+A53*4
 RAM 2G/4G/8G
Dominant Frequency 2.28GHz ROM 16G/32G/64G
DISPLAY CONNECTION PORTS
Input Ports (Front) HDMI 1.4*1；USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1
Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1
TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Positioning Accuracy ≤3mm

OS and points support

(driver free)

Windows 7/8/10, 10 points

Android 4.0 and up, 10 points

Mac 10.1 to 11, 1 point

Linux ubuntu 14.04 ~18.04,, 10 points
Internet
Ethernet 802.3 10/100 Wifi IEEE 802.11 a/b/g/n/ac, 802.3, 802.3u
Bluetooth 4.2 or Later

TE-YL5-86

Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&BusinessAndroid 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&BusinessAndroid 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&BusinessAndroid 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&BusinessAndroid 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&BusinessAndroid 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business

Certificates

Our products meet the certification requirements of most of countries in the world and have complete certificates.

Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business

Exhibition:

Android 11 Smart Board 86 Inch, 16/32/64G Interactive Panel For Education&Business

FAQ:

1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
