Radiating Leaky Feeder Cable Clamp RSB 7 / 8 ” In Mountain Areas Hills Tunnels
Radiating Leaky Feeder Cable Clamp RSB 7 / 8 ” In Mountain Areas Hills Tunnels
Radiating Leaky Feeder Cable Clamp RSB 7 / 8 ” In Mountain Areas Hills Tunnels
Radiating Leaky Feeder Cable Clamp RSB 7 / 8 ” In Mountain Areas Hills Tunnels
Specifications
Brand Name :
zd
Model Number :
zd034
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100000 pcs per month
Delivery Time :
3-15 days
Packaging Details :
Plastic bag, Carton, Pallet
Certification :
ROHS
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, Western Union, MoneyGram
Size :
7/8 in
Compatible Diameter maximum :
29 mm | 1.14 in
Compatible Diameter minimum :
27 mm | 1.06 in
Includes :

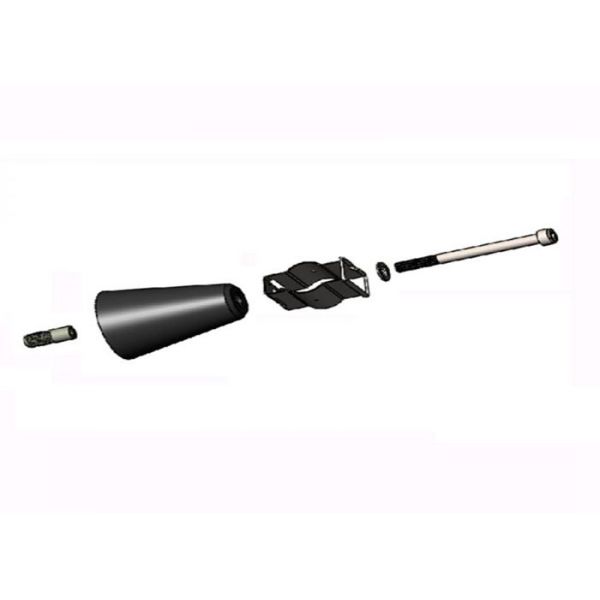

bolts , Leak base, RSB hanger ,threaded rod and washer
Operating Temperature :
-40 °C to +85 °C (-40 °F to +185 °F)
Cables per clamp :
1
Description

Feeder Clamp Radiating Leaky Feeder Clamp RSB 7/8” leaky cable clamp

Product description:

The radiating cable hanger or leaky clamp widely used in the area where communication antenna cannot work, especially in mountain areas, hills, tunnels, underground railway, underground building, shop mall and other places where there is not enough signal coverage supplied by mobile communication individual antenna. And the leaky clamps are designed for different tunnels installation and kinds of underground building systems. The material of these products is high standard stainless steel and high quality nylon plastics.

Product Details

  • The clamps are used for installing radiating cables and offer exceptional ease of use
  • The clamp is designed to secure 1 leaky cable
  • UV and corrosion resistant with SUS304
  • Capable to working in extreme temperature
  • Insert 1 cable hanger every 8-10m
  • Flammability Test Method: UL(2013)

Product Specifications

Product Classification

Product Type leaky type
Specification
Size 7/8 in
Compatible Diameter maximum 29 mm | 1.14 in
Compatible Diameter minimum 27 mm | 1.06 in
Includes bolts , Leak base, RSB hanger ,threaded rod and washer
Material of metal part Stainless steel 304
Material of plastic part PP/PA
Cables per clamp 1
Salt spray test 168 h
Surface treatment Passivated
Warranty 3 years
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance ≥720 hours
OEM Accepted
Application Telecom cable installation
Packaging & Delivery
Packaging Details Plastic bag, Carton, Pallet
Delivery Time 3-15 days

Radiating Leaky Feeder Cable Clamp RSB 7 / 8 ” In Mountain Areas Hills Tunnels

Radiating Leaky Feeder Cable Clamp RSB 7 / 8 ” In Mountain Areas Hills Tunnels
