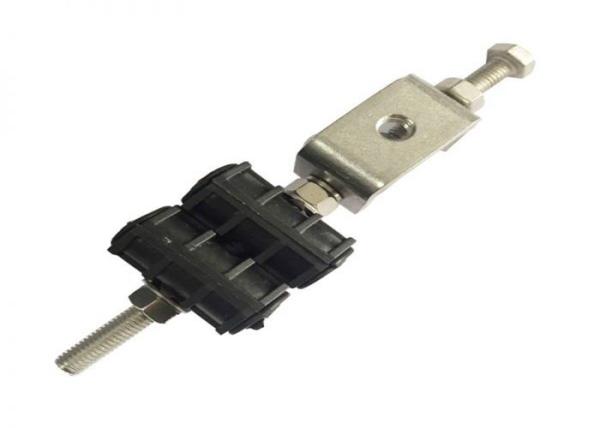

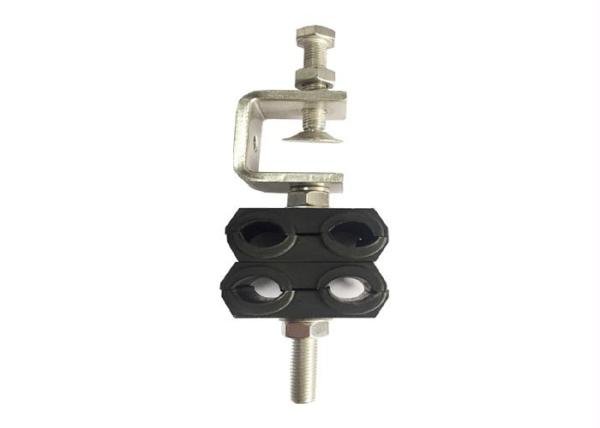

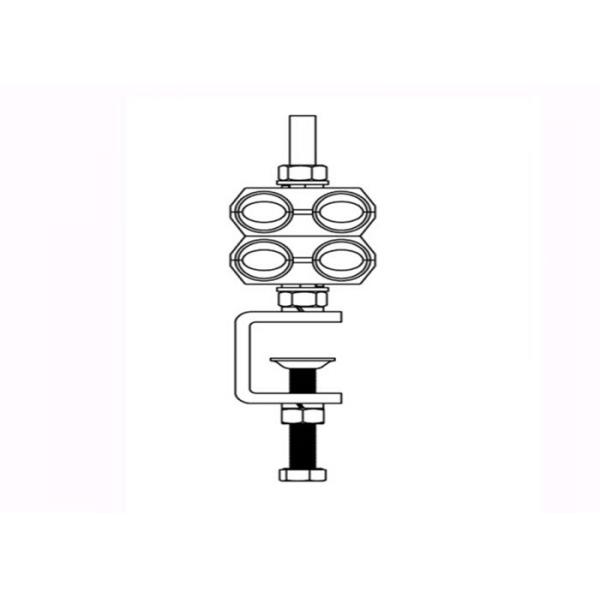

Underground Railway Double Hole Coaxial Cable Clamps Hold 4 X (9 - 14mm) Cables
Underground Railway Double Hole Coaxial Cable Clamps Hold 4 X (9 - 14mm) Cables
Underground Railway Double Hole Coaxial Cable Clamps Hold 4 X (9 - 14mm) Cables
Underground Railway Double Hole Coaxial Cable Clamps Hold 4 X (9 - 14mm) Cables
Underground Railway Double Hole Coaxial Cable Clamps Hold 4 X (9 - 14mm) Cables
Underground Railway Double Hole Coaxial Cable Clamps Hold 4 X (9 - 14mm) Cables
Specifications
Brand Name :
ZD
Model Number :
zd003
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100000 pcs per month
Delivery Time :
3-15 days
Packaging Details :
Plastic bag, Carton, Pallet
Certification :
Rohs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Size :
9-14mm
Warranty :
3 years
UV Resistance :
≥720 hours
Cables per clamp :
4
Material of plastic part :
PP/PA
Description

Feeder Clamp Through Type Feeder Clamp Cable clamp hold 4x(9-14mm) cables

Product Details

  • It is installed on cable ladder, rung, bracket, i-beam, profile such as towers, ladders and masts at telecom site
  • Without additional adapters, provide study, reliable, long-time support
  • Each block holds two runs of cable to reduce installation cost
  • Easy-to-install
  • Wind loaded
  • UV and corrosion resistant with SUS304/steel dacro bracket
  • Capable to working in extreme temperature
  • Recommend distance of clamps: 0.8~1.0m

Product Specifications

Product Classification
Product Type Double hole
Specification
Size 9-14mm
Compatible Diameter maximum 14 mm | 0.55 in
Compatible Diameter minimum 9 mm | 0.35 in

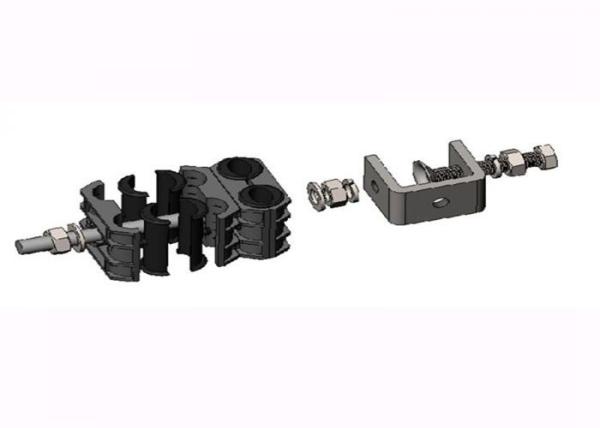

Includes Angle adapter, plastic clamp, threaded rod, nuts,washer and rubber inserts
Material of metal part Stainless steel 304
Material of plastic part PP/PA
Cables per clamp 4
Salt spray test 168 h
Surface treatment Passivated
Warranty 3 years
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance ≥720 hours
OEM Accepted
Application Telecom cable installation
Packaging & Delivery
Packaging Details Plastic bag, Carton, Pallet
Delivery Time 3-15 days

Underground Railway Double Hole Coaxial Cable Clamps Hold 4 X (9 - 14mm) Cables

Underground Railway Double Hole Coaxial Cable Clamps Hold 4 X (9 - 14mm) Cables
