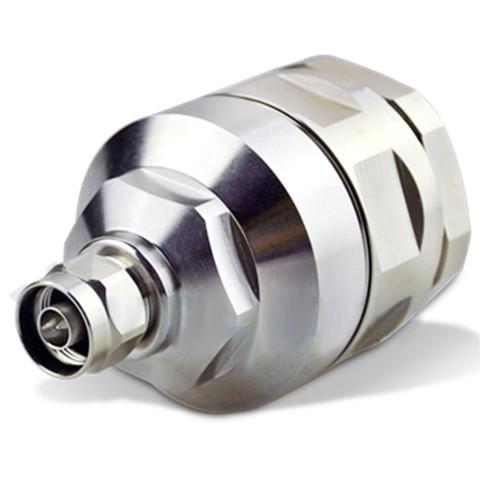

High Quality RF Coaxial Connector N male/ plug for 1-5/8 coaxial cable
High Quality RF Coaxial Connector N male/ plug for 1-5/8 coaxial cable
Specifications
Brand Name :
ZD
Model Number :
ZD-NM.158.RFC
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Characteristic Impedance :
50ohm
Type :
N
Typical Frequency Range :
DC-6GHZ
Intermodulation 3rd (PIM3) :
≤ -155dBc@2×20W
Weatherproof Rate :
IP67
Durability (Mating) :
≤500(cycles)
Description

High Quality RF Coaxial Connector N male/ plug for 1-5/8 coaxial cable

Product Description

ZD RF Connector has an operational frequency range of DC-6 GHz, offers excellent VSWR performance and Low Passive Intermodulation. This makes it ideally suited for use in cellular basestations, distributed antenna systems (DAS) and small cell applications.

RF Connector N male/ plug connector for 1-5/8 coaxial cable

Quick Details

Place of Origin:shenzhen, China (Mainland)
Model Number:ZD-CN-NM-CF158
Type:N
Application:RF
Gender:Male

Series N are threaded connector,medium and small power RF connector.there are 50ohm and 75 ohm about the Characteristic impedance, they are widely use in electronic instrument,communication equipment,internet system,microwave testing,cable assembly and Semiflexible and semirigid cable.

Technical Characteristics

Major Technical Characteristics
Temperature Range -55 degree to +155 dregree(PE Cable-40~+85 degree)
Vibration 100m/S2 (10 to 500 Hz)
Impedance 50 ohm
Frequency Range DC-6GHZ
Working Voltage 1000V r.m.s at sea level
Withstanding Voltage 2500V r.m.s at sea level
Center Contact Resistance ≤1Mohm
Outer Contact Resistance ≤1Mohm
Insulation Resistance ≥5000Mohm
Center conductor Retention Force ≤0.56N
Insertion Loss ≤0.24dB/6GHz
Voltage Standing Wave Ratio :
Straight ≤1.15/6GHz
Right Angle ≤1.25/6GHz
Coupling Nut Retention force 450N
Durability (Mating) ≤500(cycles)
Materials
Shell/Body Brass..................NEXCOTE
Insulator ..................Natural
Gasket Silicone.................Red
Retainer Ring SUS 304..................Natural
Contact Pin Brass......................Gold
Ferrule Copper......................NEXCOT
Suitable Cable
RG8, RG58, RG213, RG316, LMR200, LMR300, LMR400 ( More Option, please contact us)

Product Description Part No.
7/16 DIN Type DIN Female connector for 1/2’’ flexible RF cable ZD-CN-DF-CF12
DIN Female connector for 1/2’’ Super flexible RF cable ZD-CN-DF-CF12S
DIN Female connector for 1-1/4’’ flexible RF cable ZD-CN-DF-CF114
DIN Female connector for 1-5/8’’ flexible RF cable ZD-CN-DF-CF158
DIN Female Right Angle connector for 1/2’’ flexible RF cable ZD-CN-DFR-CF12
DIN Female Right Angle connector for 1/2’’ Super flexible RF cable ZD-CN-DFR-CF12S
DIN Male connector for 1/2’’ flexible RF cable ZD-CN-DM-CF12
DIN Male connector for 1/2’’ Super flexible RF cable ZD-CN-DM-CF12S
DIN Female connector for 7/8'' coaxial RF cable ZD-CN-DF-CF78
DIN Male connector for 7/8' coaxial RF cable ZD-CN-DM-CF78
DIN Male connector for 1-1/4’’ flexible RF cable ZD-CN-DM-CF114
N Type N Female connector for 1/2’’ flexible RF cable ZD-CN-NF-CF12
N Female connector for 1/2’’ Super flexible RF cable ZD-CN-NFCF12S
N Female Angle connector for 1/2’’ flexible RF cable ZD-CN-NFR-CF12
N Female Angle connector for 1/2’’ Super flexible RF cable ZD-CN-NFR-CF12S
N Male connector for 1/2’’ flexible RF cable ZD-CN-NM-CF12
N Male connector for 1/2’’ Super flexible RF cable ZD-CN-NM-CF12S
N Male Angle connector for 1/2’’ flexible RF cable ZD-CN-NMR-CF12
N Male Angle connector for 1/2’’ Super flexible RF cable ZD-CN-NMR-CF12S
4.3-10 Type 4.3-10 Female connector for 1/2’’ flexible RF cable ZD-CN-MNDF-CF12
4.3-10 Female connector for 7/8’’ flexible RF cable ZD-CN-MNDF-CF78
4.3-10 Female Right Angle connector for 1/2’’ flexible RF cable ZD-CN-MNDFR-CF12
4.3-10 Female Right Angle connector for 1/2’’ Super flexible RF cable ZD-CN-MNDFR-CF12S
4.3-10 Male connector for 1/2’’ flexible RF cable ZD-CN-MNDM-CF12
4.3-10 Male connector for 7/8’’ flexible RF cable ZD-CN-MNDM-CF78
4.3-10 Male Right Angle connector for 1/2’’ flexible RF cable ZD-CN-MNDMR-CF12
4.3-10 Male Right Angle connector for 1/2’’ Super flexible RF cable ZD-CN-MNDMR-CF12S
