Mini Din Type RF Coaxial Connector 4.3-10 Male for 1/2 flexible cable
Mini Din Type RF Coaxial Connector 4.3-10 Male for 1/2 flexible cable
Specifications
Brand Name :
ZD
Model Number :
ZD-CN-MNDM-CF12
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
nsulator Impedance :
PTFE
Insertion Loss :
≤0.1dB@3GHz
application :
1/2’’ flexible RF cable
VSWR :
≤1.1@-3.0GHz
Intermodulation 3rd (PIM3) :
≤ -155dBc@2×20W
Conductor Material :
Cooper
Description

Mini Din Type RF Coaxial Connector 4.3-10 Male for 1/2’’ flexible cable

Product Description

Model: ZD-CN-MNDM-CF12

Description:

4.3-10 Male connector for 1/2’’ flexible RF cable

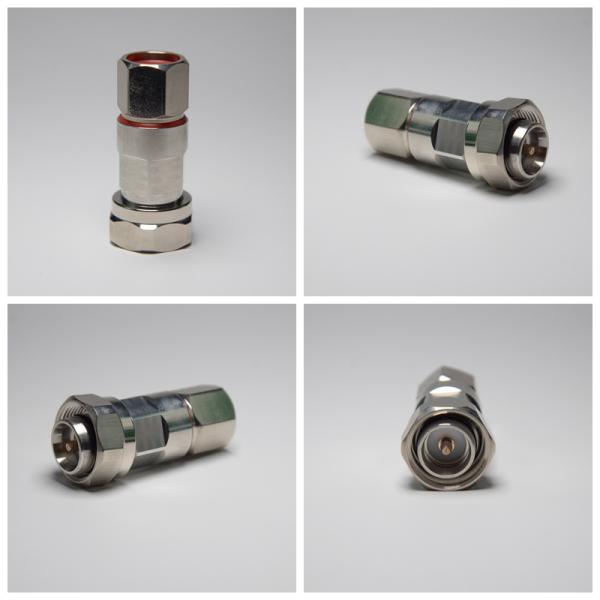

Mini Din Type RF Coaxial Connector 4.3-10 Male for 1/2

Specification

Material and Plating 　
Center contact Brass / Silver Plating
Insulator PTFE
Body & Outer Conductor Brass / alloy plated with tri-alloy
Gasket Silicon Rubber
Electrical Characteristics 　
Characteristics Impedance 50 Ohm
Frequency Range DC~3 GHz
Insulation Resistance ≥5000MΩ
Dielectric Strength ≥2500 V rms
Center contact resistance ≤1.0 mΩ
Outer contact resistance ≤1.0 mΩ
Insertion Loss ≤0.1dB@3GHz
VSWR ≤1.1@-3.0GHz
Temperature range -40~85℃
PIM dBc(2×20W) ≤-155 dBc(2×20W)
Waterproof IP67

1. We focus on RF Connector &Cable Assembly &Antenna.

2. We have a vigorous and creative R&D team with the fullest mastery of the core technology.

We commit ourselves to the development of high performance connector production, and

dedicate ourselves to achieving a leading position in connector innovation and production.

3. Our custom RF cable assemblies are built-in and shipped worldwide

4. RF cable assemblies can be produced with many different connector types and custom lengths

depending on your needs and applications

5. If you require a special RF Connector or RF Cable assembly configuration not found here,

you can create your own RF cable assembly configuration by calling our sales department.

Quick Details

Place of Origin:shenzhen, China (Mainland), Shenzhen
Brand Name:ZD
Model Number:ZD-CN-MNDM-CF12
Application:RF
Gender:Male
Conductor Material:Copper
Polarity:Standard
