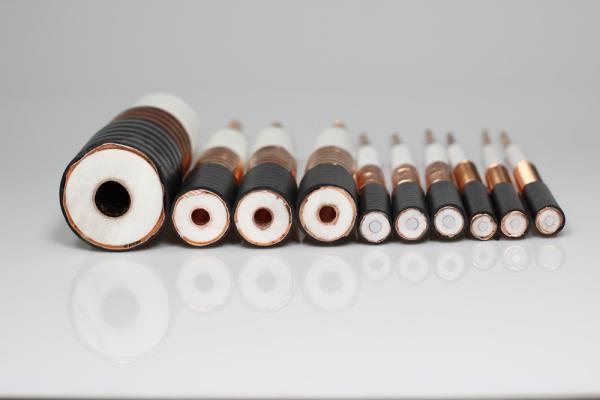

Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable
Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable
Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable
Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable
Specifications
Brand Name :
ZD
Model Number :
1/2 feeder cable
Certification :
CE RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/P, D/A, T/T, L/C, MoneyGram, Western Union
Supply Ability :
having stock
Packaging Details :
wooden drum
Number Of Bends, Minimum (Typical) :
20 (50)
Min. bending Radius (Repeated) :
35 mm
Min. bending Radius (Single) :
25 mm
cable weight :
≈ 171 kg/km
Tensile Strength :
750 N
Advantages :
low loss
Description

Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable

Feature

 Wide Frequency Range
 Low Attenuation
 High Power Rating
 High Reliability

Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable

Specification

Mechanical Specifications
Inner Conductor
Copper clad aluminium wire Ø 3.6mm
Dielectric
Foamed polyethylene (PE) Ø 9.0mm
Outer Conductor
Annularly corrugated copper tube Ø 12.2mm
Jacket
PE, Black, UV resistant, Halogen free Ø 13.4 mm
UV Resistance
GB/T 14049-093; EN 50289-4-17, Method A
Cable Weight
≈ 171 kg/km
Tensile Strength
750 N
Min. bending Radius (Single)
25 mm
Min. bending Radius (Repeated)
35 mm
Number Of Bends, Minimum (Typical)
20 (50)
Flat plate Crush Strength
15 N/mm
Recommended Hanger Spacing
0.8 m
Electrical Specifications
Impedance
50±1 ohm
Relative Velocity Of Propagation
83%
Capacitance
80 pF/m
Inductance
0.195 μH/m
Maximum Operating Frequency
10.1 GHz
Cut-off Frequency
13.1 GHz
Peak Power Rating
16 kW
Insulation Resistance
≥ 10 GΩ x km
DC Breakdown Voltage
2500V
Jacket Spark Test Voltage
5000 Vrms
Inner Conductor DC-resistance
≤ 2.75 Ω/km
Outer Conductor DC-resistance
≤ 3.69 Ω/km
Environmental Specifications
Installation Temperature
-25°C to +60°C
Operation Temperature
-40°C to +85°C
Storage Temperature
-70°C to +85°C
RoHs
Compliant
Attenuation, Ambient Temperature
20°C
Average Power, Ambient Temperature
40°C
Inner Conductor Temperature
100°C
Return Loss
800 to 1000MHz
≤-26dB
1700 to 1900MHz
≤-24dB
1900 to 2200MHz
≤-24dB
2200 to 2500MHz
≤-24dB
2500 to 3000MHz
≤-24dB
Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial CableWide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable
