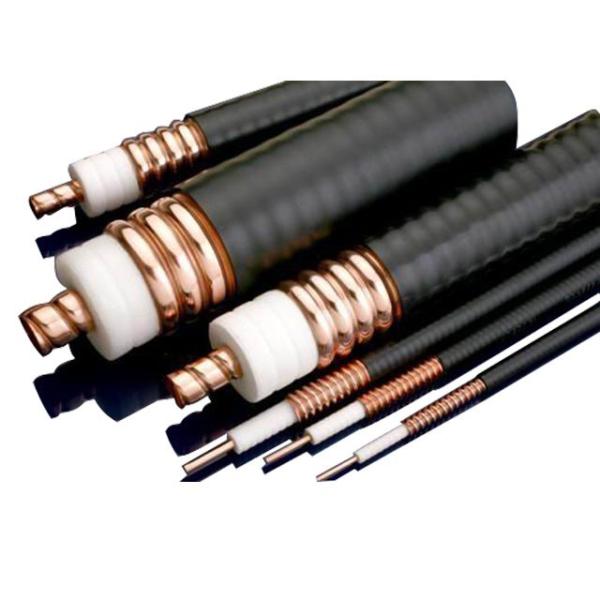

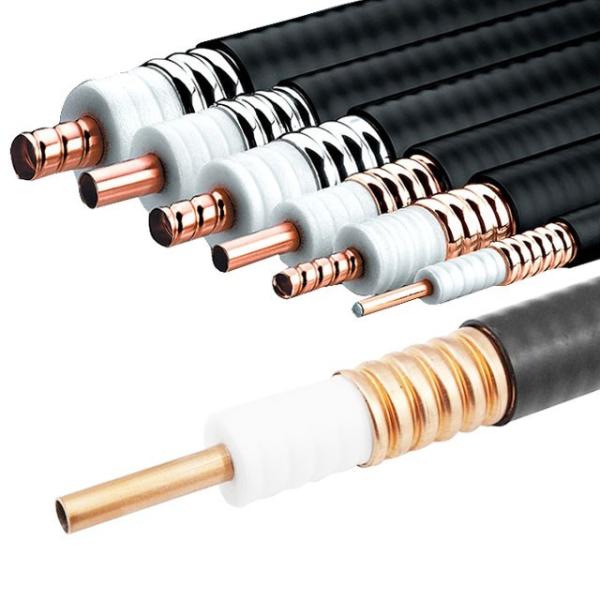

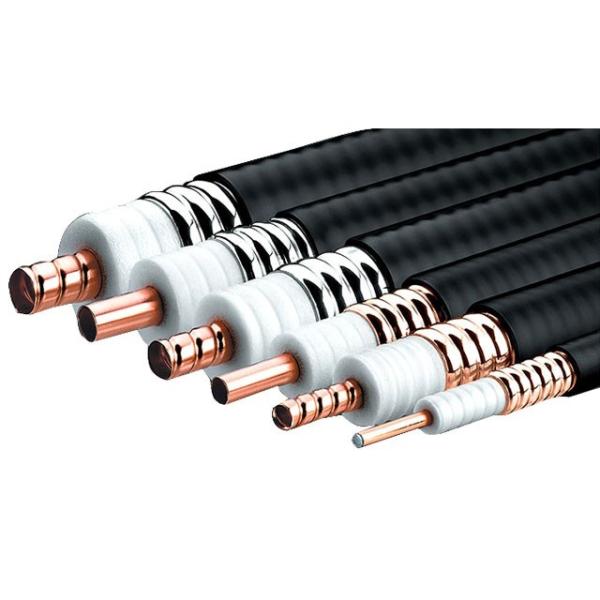

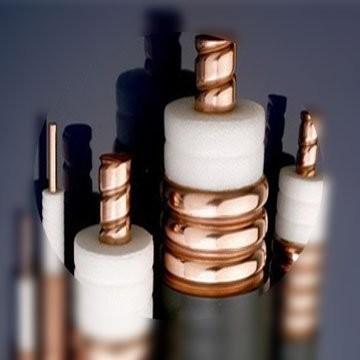

Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Micro Corrugated Copper Tube Coaxial Cable For Microwave Telecommunication
Specifications
Brand Name :
ZD
Model Number :
hs50-1/4
Certification :
CE RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/P, D/A, T/T, L/C, MoneyGram, Western Union
Supply Ability :
having stock
Packaging Details :
wooden drum
Impedance,ohm :
50
Capacitance,PF/m :
0.187
Inductance,μH/m :
75
Propagation velocity,% :
88
DC breakdown voltage,kV :
6.0
Peak power,kW :
91
Description

50Ohm corrugated 1/4" super Flexible Cable Feeder Cable Coaxial cable

Application Range:

Broadcast and television, microwave telecommunication, military use, aerospace, vessel or other circumstance where RF cable is needed.

Advantages:

Low attenuation, low standing wave, high shielding, damp-proof, gas free maintenance, flexible, high anti-tensile strength.

Type
Type No.
Standard cable
HCAHY-50-5
Fire-retardant cable
HCAHYZ-50-5
Construction
Inner
conductor
Material
CCA
Diameter(mm)
1.9±0.02
Insulation
Material
Foamed PE
Diameter(mm)
4.7±0.1
Outer
conductor
Material
Helical corrugated copper tube
Diameter(mm)
6.4±0.15
Jacket
Material
LLDPE or fire-retardant PE
Min.thinkness(mm)
＞0.4
Diameter(mm)
7.5±0.15
Mechnical Characteristics
Bending radius(mm)
Single bend
13
Repeated bend
25
Tensile strength(N)
600
Cable weight(kg/km)
75
Recommended temperature
Storage
-70~+85
Installation
-40~+60
Operating
-55~+85
Electrical Characteristics
Inner conductor DC resistance(Ω/km)
10.45
Outer conductor DC resistance(Ω/km)
7.02
Characteristic impedance(Ω)
50±1.5
Capacitance(p F/m)
79.5
Velocity(%)
83
Dielectric strength(KV)
2.0
Insulation resistance(MΩ/km)
＞1×104
Peak power rating(KW)
13.4
Peak voltage(V)
1200
Cut-off frequency(GHz)
25.0
Attenuation and Average power(Maximum attenuation value shall be 105% of the nominal attenuation value)
Frequency (MHz)
Attenuation (@20℃,d B/100m)
Average power(kw)
200
8.46
0.86
450
12.87
0.56
800
17.48
0.42
900
18.50
0.38
1000
19.70
0.37
1500
24.40
0.29
1800
26.99
0.27
2000
28.65
0.25
2200
30.39
0.23
2500
32.35
0.22
3000
35.80
0.20
VSWR
800MHz~1000MHz
1.18
1700MHz~2200MHz
1.20
2500MHz~3000MHz
1.20
