Amplified Omnidirectional Internet Outdoor Directional Antenna By N Female Connector GSM
Amplified Omnidirectional Internet Outdoor Directional Antenna By N Female Connector GSM
Specifications
Brand Name :
ZD
Model Number :
ZD-YA-01
Certification :
ISO9001,IEC,UL,CE,RoHS,TLC
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs/month
Delivery Time :
2 weeks
Frequency :
470-860MHz
Radiating Element Material :
Aluminum
VSWR :
≤1.7:1
Connector Type :
N Female
Max power :
50W
Lightning protection :
DC Ground
Description

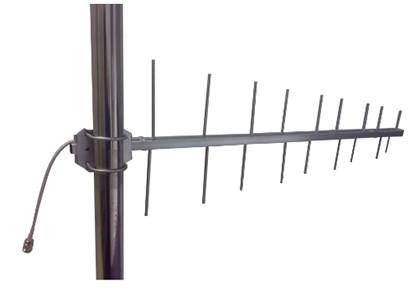

11db Outdoor Directional Yagi 470-860MHz GSM Antenna with N female connector

Applications

l 500MHz band

l Digital mobile TV system

l Remote sensing & telemetry system

l Client antenna

Features

l High gain, High F/B ratio

l Long-distance communication

l Strong anti-jamming ability

l High quality aluminum alloy material

l Strong adaptability of environment

l The connector with a pigtail

Electrical Specification
Frequency 470-860MHz
Polarization Vertical /Horizontal
Gain 10±1 dBi
VSWR ≤1.7:1
Horizontal beam-width 60°±5°
Vertical beam-width 50°±3°
Front-to-back ratio ≥15dB
Input Impedance 50Ω
Max power 50W
Lightning protection DC Ground
Mechanical Specification
Connector Type N Female
Dimensions(L*W*H) 940*320*65mm(37*12.6*2.6in)
Radiating Element Material Aluminum
Reflector Material Aluminum
Weight 0.78kg
Mounting Pole Φ30~55mm
Operating temperature -40℃~60℃
Wind velocity 200 km/h (survival)
