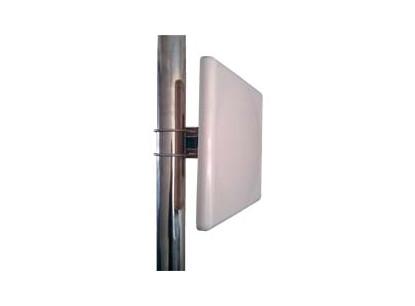

4g LTE External Rectangular Patch Antenna Indoor Outdoor 4900 - 5900 MHz 100w
4g LTE External Rectangular Patch Antenna Indoor Outdoor 4900 - 5900 MHz 100w
Specifications
Brand Name :
ZD
Model Number :
ZD-BSA-4959-15NF
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs per month
Delivery Time :
2 weeks
Polarization :
±90
Gain(dbi) :
15
Max power :
50w
Maximum input power (W) :
100w
Lighting Protection :
Direct Ground
Input Impedance :
50Ω
Description

4900-5900 MHz antenna 4g LTE directional patch panel external antenna indoor outdoor

Features:

  1. High gain and direction, can be used for External Panel Antenna Outdoor Directional AntennaWIFI/WIMAX internet and telecom signal coverage;
  2. Patch antenna @4900-5900MHZ can help the subscriber connectand available for WIFI/WIMAX frequency;
  3. Strong wind resistance, available for telecom equipment or internet equipment;
  4. Low VSWR can increase the signal transport efficiency, small and simple installation way easy to install.

Company Information

1.We have our own R&D team and have 17 R&D engineers,with independent R&D lab,can quickly provide upmarket product customerization services for customers.
2.We have 6 passive components production lines,150 employees,adopt advanced automatic screw machine,production capacity can up to 5000PCS/ per day.
3.Owning full set of available testing equipment to guarantee the quality of products.
4.Adopt advanced ATE testing system,owning full frequency of Intermodulation test equipment,perfect ERP management system and blameless process quality control system to promise the high qualification rate.
5.Our factory have more than 8 years production experience on antenna and passive components,have a rich product category and high cost-effective,is the leader in antenna and the passive communications industry in China.

If you have any questions regarding our products, including pricing, or to order, please contact us, by phone, email and one of our friendly staff will be happy to answer your query. We can arrange delivery throughout the world

Electrical Specification
Frequency 4900-5900MHz
Polarization ±90
Gain 15±1 dBi
VSWR ≤1.5:1
Horizontal beam-width 65°±5°
Vertical beam-width 16°±3°
Front-to-back ratio ≥22dB
Isolation ≥20dB
Input Impedance 50Ω
Max power 50W
Lightning protection DC Ground
Mechanical Specification
Connector Type 2*N Female
Dimensions(L*W*H) 223*123*25mm(8.8*4.8*1in)
Radiating Element Material Aluminum
Reflector Material Aluminum
Weight 0.5kg
Radom Material UABS
Radom Color White
Mounting Pole Φ30~50mm
Operating temperature -40℃~60℃
Wind velocity 200 km/h (survival)
