Steel Frame Feeder Cable Clamp 7 - 8 + 13 - 22mm Combined Easy Quick Fastening
Steel Frame Feeder Cable Clamp 7 - 8 + 13 - 22mm Combined Easy Quick Fastening
Steel Frame Feeder Cable Clamp 7 - 8 + 13 - 22mm Combined Easy Quick Fastening
Steel Frame Feeder Cable Clamp 7 - 8 + 13 - 22mm Combined Easy Quick Fastening
Specifications
Brand Name :
zd
Model Number :
zd026
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100000 pcs per month
Delivery Time :
3-15 days
Packaging Details :
Plastic bag, Carton, Pallet
Certification :
ROHS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Size :
7-8 mm, 13-22 mm
Application :
Telecom cable installation
OEM :
Accepted
UV Resistance :
≥720 hours
Operating Temperature :
-40 °C to +85 °C (-40 °F to +185 °F)
Warranty :
3 years
Description

Feeder Clamp Hook Type Feeder Clamp 7-8+13-22mm Combined steel frame cable clamp

Product Details

  • Self-locking cable clamps are the optimal solution for an easy and quick fastening to various supports of: coaxial cables, wave guides and fiber optic cables.
  • The cables are firmly secured, without danger of deformation, by calibrated saddles which hold them without crushing.
  • The installer can visually control the pressure exerted by the screw (pat.).
  • 6 cables can be fastened with the same clamp. The calibrated saddles, secured by a clip, can be inserted either frontally or laterally in the bow.
  • Simple and strong structure
  • Selected high quality materials
  • Secured components with easy mounting
  • Resistance to atmospheric factors
  • High resistance to temperature variations
  • Absolute safety for cables and installers
  • Easy and quick installation

Product Specifications

Product Classification
Product Type hook type
Specification
Size 7-8 mm, 13-22 mm
Compatible Diameter maximum 22 mm | 0.86 in
Compatible Diameter minimum 7 mm | 0.27 in

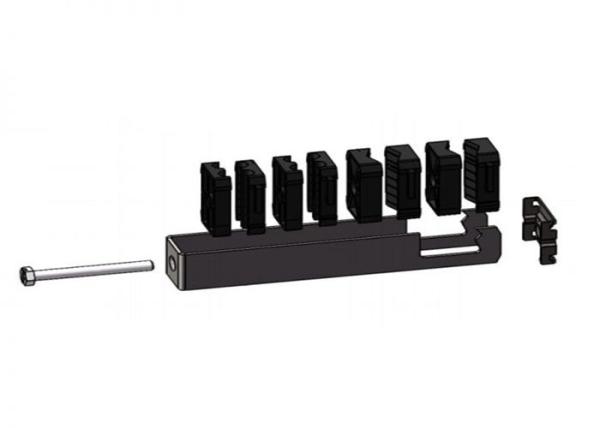

Includes plastic clamp, threaded rod, nuts and steel frame
Material of metal part Stainless steel 304
Material of plastic part PP/PA
Cables per clamp 6
Salt spray test 168 h
Surface treatment Passivated
Warranty 3 years
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance ≥720 hours
OEM Accepted
Application Telecom cable installation
Packaging & Delivery
Packaging Details Plastic bag, Carton, Pallet
Delivery Time 3-15 days

Steel Frame Feeder Cable Clamp 7 - 8 + 13 - 22mm Combined Easy Quick Fastening
