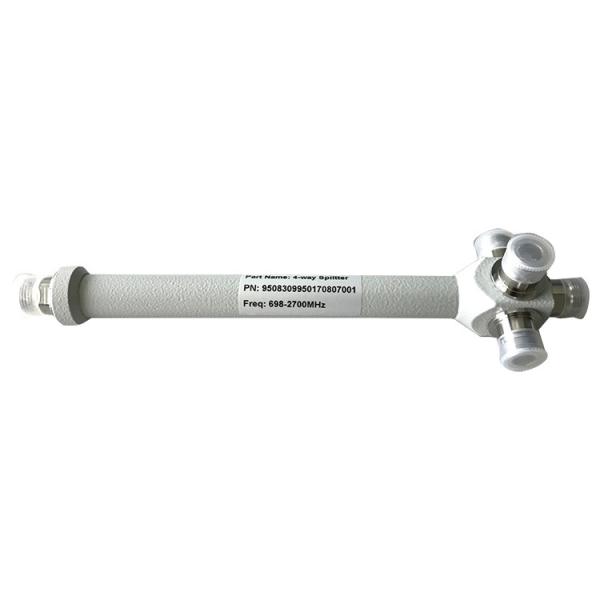

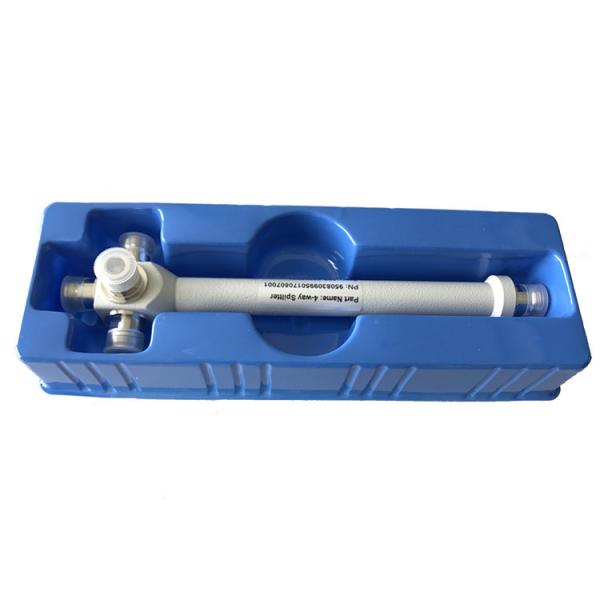

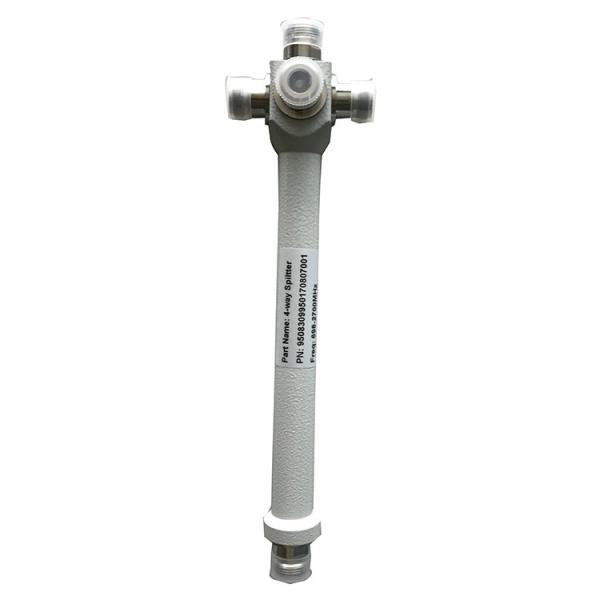

698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter
698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter
698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter
698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter
698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter
698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter
698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter
698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter
Specifications
Brand Name :
ZD
Model Number :
ZD-PSCG-727-200-04NF
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Frequency :
698-2700mhz
VSWR :
≤1.25:1
Application :
IBS DAS RF
PIM3 :
≤-150dBc@2x43dBm
Impedance :
50 Ohm
Connector :
N Female
color :
grey or customerized
shape :
round
Description

698-2700mhz Grey Round N Female 4 Way RF Power Divider Splitter

Power splitters are used in a wide variety of applications and can satisfy almost any requirement where a signal
needs to be distributed or combined.HTMICROWAVE offers 2-way,3-way and 4-way configurations fitted with
N,7/16 DIN-Female or SMA-Femal connectors at all ports.Indoor or Outdoor use.
This RF Splitter Series provide a low loss,same power split at all output ports while maintaining excellent amplitude
and phase balance.Mainly used in repeater or base station to split,also can be used in indoor distribution system.
Features of our products are high isolation,alternate connector configurations,rack mounting,high power combining
and weatherproofing.You can choose the best product solutions for your specific needs here.

Electrical Specifications:
Frequency Range800-2500MHz800-2700MHz698-2700MHz
Split Way2way3way4way2way3way4way2way3way4way
VSWR≤1.25:1≤1.25:1≤1.25:1
Insertion Loss(dB)≤3.3≤5.2≤6.3≤3.3≤5.2≤6.4≤3.3≤5.2≤6.5
In-band Ripple(dB)≤0.3≤0.4≤0.5≤0.3≤0.4≤0.5≤0.3≤0.4≤0.5
Average Power(W)200/300/500200/300/500200/300/500
3rd Order IMD(dBc)≤-120/-140/-150@2X43dBm≤-120/-140/-150@2X43dBm≤-120/-140/-150@2X43dBm
Impedance(Ω)505050
Connectors TypeN-FemaleN-FemaleN-Female
Operating Temp.(℃)-20~+55-20~+55-20~+55
ApplicationFor Indoor or Outdoor UseFor Indoor or Outdoor UseFor Indoor or Outdoor Use
FinishGrey PlatedGrey PlatedGrey Plated
