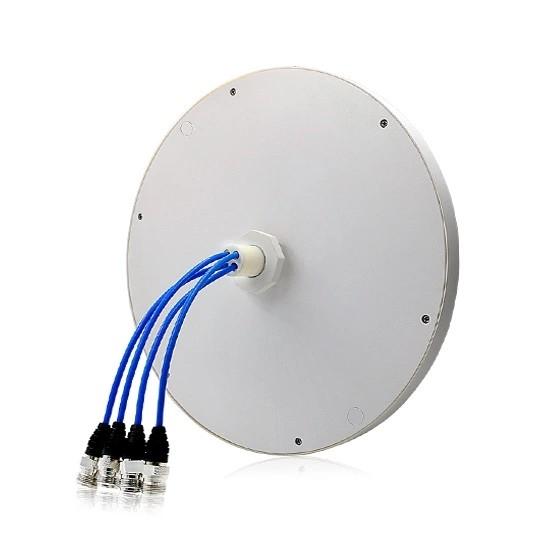

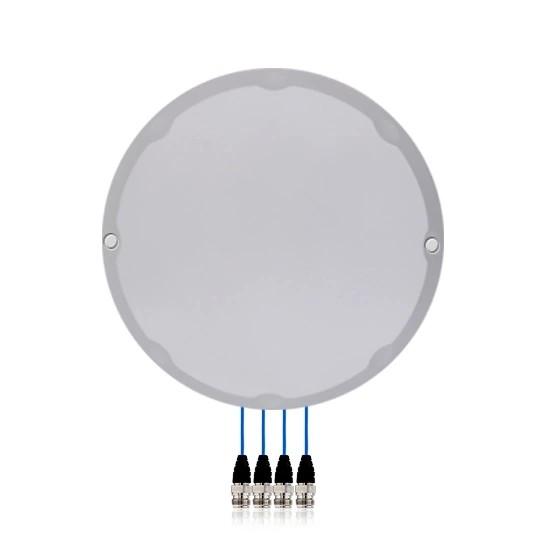

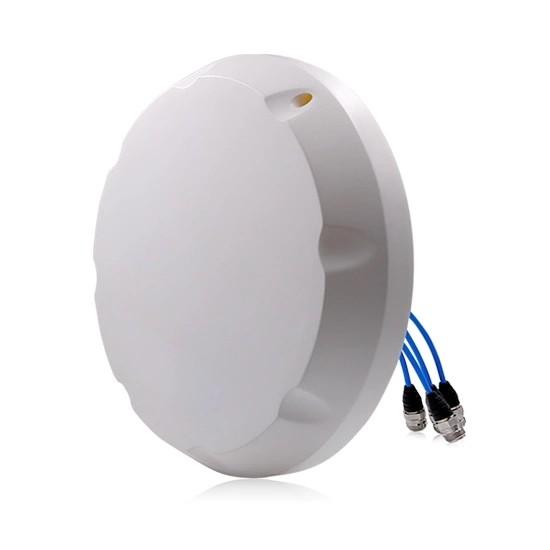

2G 3G 4G Lte 4 Port Omni Directional Ceiling Antenna MIMO Wideband 698 - 2700MHz
2G 3G 4G Lte 4 Port Omni Directional Ceiling Antenna MIMO Wideband 698 - 2700MHz
2G 3G 4G Lte 4 Port Omni Directional Ceiling Antenna MIMO Wideband 698 - 2700MHz
2G 3G 4G Lte 4 Port Omni Directional Ceiling Antenna MIMO Wideband 698 - 2700MHz
2G 3G 4G Lte 4 Port Omni Directional Ceiling Antenna MIMO Wideband 698 - 2700MHz
2G 3G 4G Lte 4 Port Omni Directional Ceiling Antenna MIMO Wideband 698 - 2700MHz
Specifications
Brand Name :
ZD
Model Number :
ZD-4P-MCA-727-2.5/5NF
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs one month
Frequency :
698-2700mHz
Radome material :
ABS(White)
Reflector material :
Aluminium
Antenna Weight(kg) :
1.5
Size(mm) :
φ300*50
Connector Type :
N-female
Description

698-2700MHz 4 Port MIMO Omni Directional Ceiling Antenna

Application:

1. GSM/CDMA/PCS/CDMA2000/WCDMA/TD-SCDMA/TD-LTE/FDD-LTE system.

2. 698-806/806-960/1710-2170/2300-2700MHz band.

3. Indoor signal coverage.

Features:

1. High gain,low PIM,,low VSWR.

2. Small size,beautiful appearance,,light weight.

3. DC ground,corrosion resistance,Anti-aging.

Specifications:

Electrical Specifications
Frequency Range(MHz) 698-806 806-960 1710-2170 2300-2700
Gain(dBi) 2.5 3 5 5
Polarization Vertical
Beam width Vertical(deg) 90 90 70 70
Isolation(dB) ≥13 ≥13 ≥20 ≥20
VSWR ≤2
PIM, 3rd Order (dBc) ≤-150@2*43dBm
Maximum input power(W) 50
Lightning protection DC Ground
Impedance(Ohm) 50
Mechanical Specification
Connector Type N-female
Connector position Bottom with cable
Size(mm) φ300*50
Cable length(mm) 300
Antenna Weight(kg) 1.5
Rated wind velocity(m/s) 36.9
Operational Temperature(oC) -40~+55
Reflector material Aluminium
Radome material ABS(White)
