698 - 2700MHz 7/16 Din Female 20dB Coaxial RF Directional Coupler
698 - 2700MHz 7/16 Din Female 20dB Coaxial RF Directional Coupler
Specifications
Brand Name :
ZD
Model Number :
ZD-DC-727-200-20DF
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs one month
Packaging Details :
Standard exporting cartons or as customer required
Delivery Time :
3-15 days
Connector :
DIN-female
Material: Cavity :
Aluminum silver-plated
Environment :
Outdoor
Intermodulation :
< -150dBc @ 2 x 43dBm
Frequency :
698-2700MHz
Impedance :
50Ω
Description

698 - 2700MHz 7/16 Din Female 20dB Coaxial RF Directional Coupler

Features

● Low Insertion Loss
● High power handing
● Low PIM Low VSWR

● DIN-Female connecters

Packaging & Delivery

Packaging Details: Standard exporting cartons or as customer required

Delivery Time: 1-4 weeks after getting advanced payment

Specification
Frequency
698-2700MHz
Specifications
20dB
Attenuation
±1.5
Insertion loss
<0.3
VSWR
>1.25
Isolation
>50
Power handling
500 W
Impedance
50 Ohm
Intermodulation
< -150dBc @ 2 x 43dBm
Operating temperature
-40°C to +75°C
Storage temperature
-40°C to +85°C
Colour
Black / gray
Relative Humidity
5% - 95%
Applications
IP65
Connectors type
DIN-Female
Weight
0.58Kg

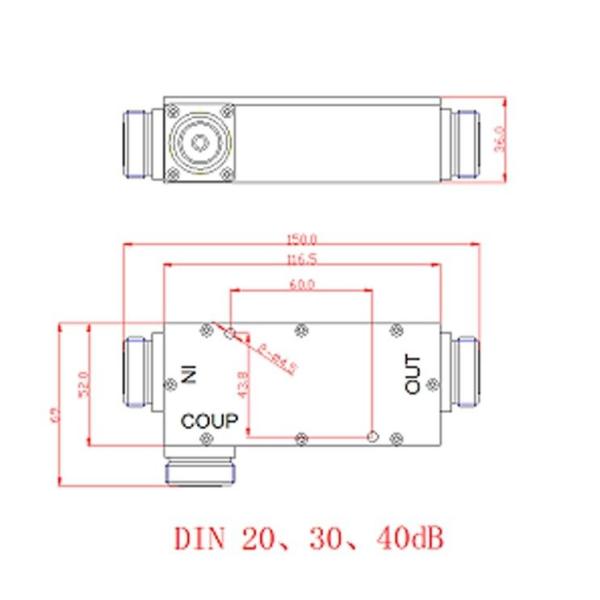

Outer Dimension
150*69*36mm
