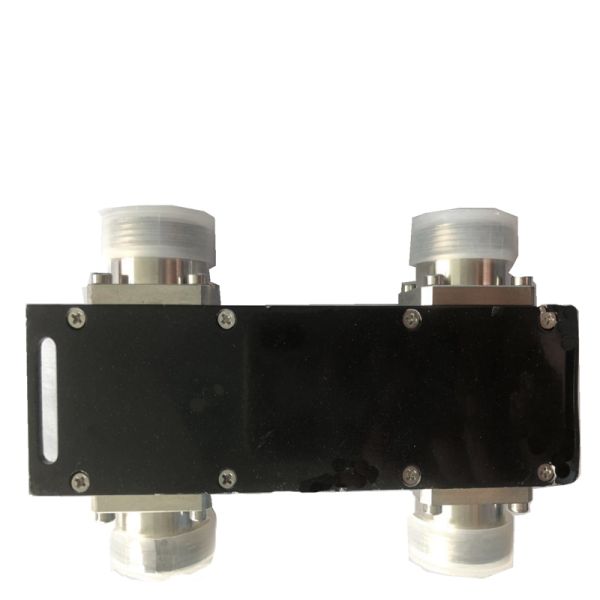

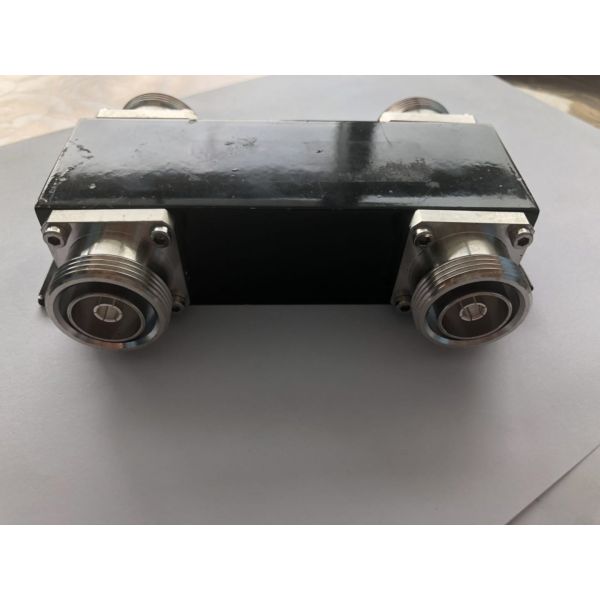

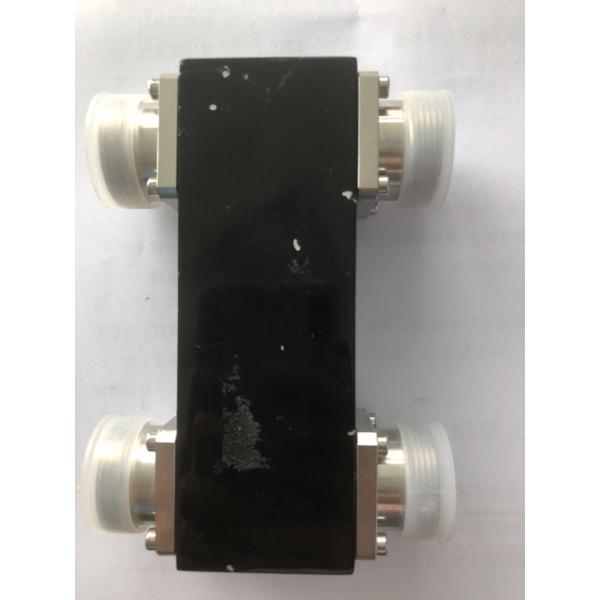

Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler
Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler
Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler
Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler
Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler
Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler
Specifications
Brand Name :
ZD
Model Number :
ZD-HC-825-200-2:2DF
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs one month
Packaging Details :
Standard exporting cartons or as customer required
Delivery Time :
3-15 days
Connector :
DIN/N-female
Material: Cavity :
Aluminum silver-plated
Environment :
Outdoor
Frequency Range :
800-2500MHz
PIM (IM3) :
<-155dBc @2×43dBm
Connectors Type :
DIN-Female
Description

Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler

Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems


DIN type 3dB Hybrid Coupler Series-800-2500/800-2700/698-2700MHz,2 in 2 out

Electrical Specifications:
Frequency Range 800-2500MHz 800-2700MHz 698-2700MHz
VSWR ≤1.2:1 ≤1.25:1 ≤1.25:1
Insertion Loss(dB) ≤3.5 ≤3.5 ≤3.5
In-band Ripple(dB) ≤0.5 ≤0.5 ≤0.6
Isolation(dB) ≥25 ≥25 ≥25
Average Power(W) 200/300/500 200/300/500 200/300/500
3rd Order IMD(dBc) ≤-120/-140/-150@2X43dBm ≤-120/-140/-150@2X43dBm ≤-120/-140/-150@2X43dBm
Impedance(Ω) 50 50 50
Connectors Type DIN-Female DIN-Female DIN-Female
Operating Temp.(℃) -20~+55 -20~+55 -20~+55
Application For Indoor or Outdoor Use For Indoor or Outdoor Use For Indoor or Outdoor Use
Finish Black Plated Black Plated Black Plated

Passive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid couplerPassive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid couplerPassive Components 800-2500MHz,200W, DIN-F,3db 2 in 2 out 3db RF hybrid coupler
