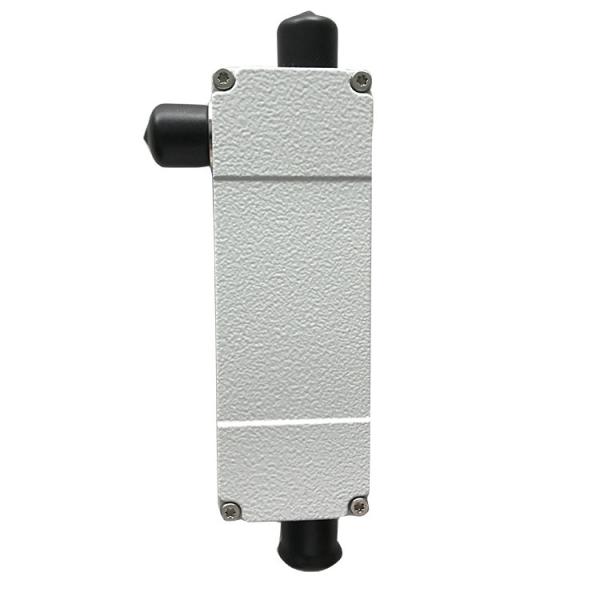

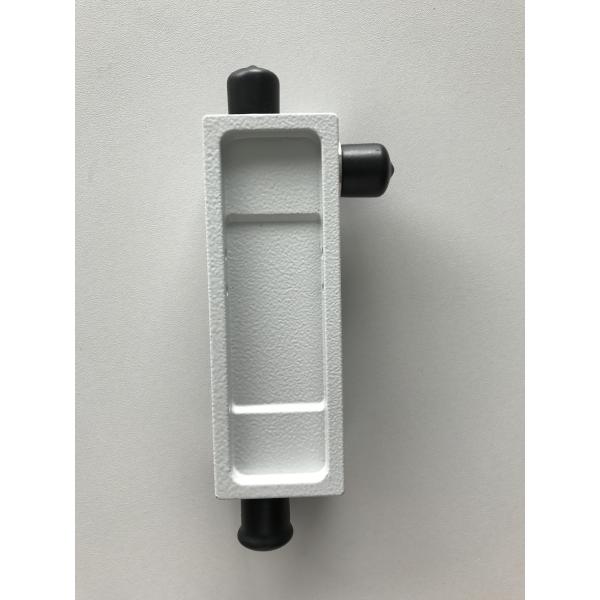

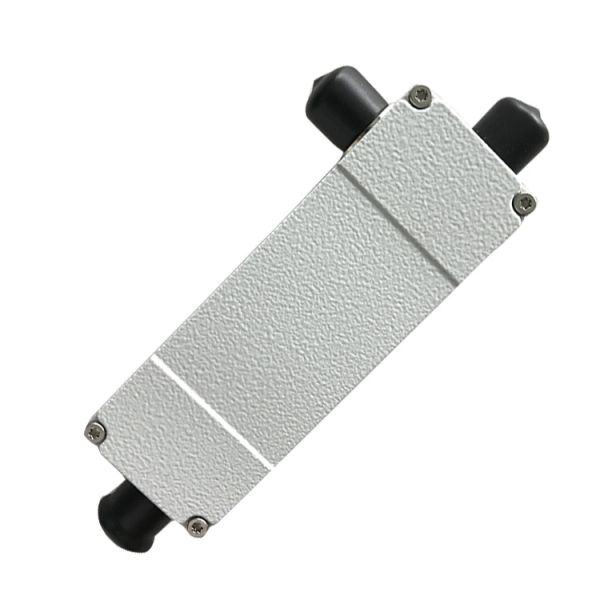

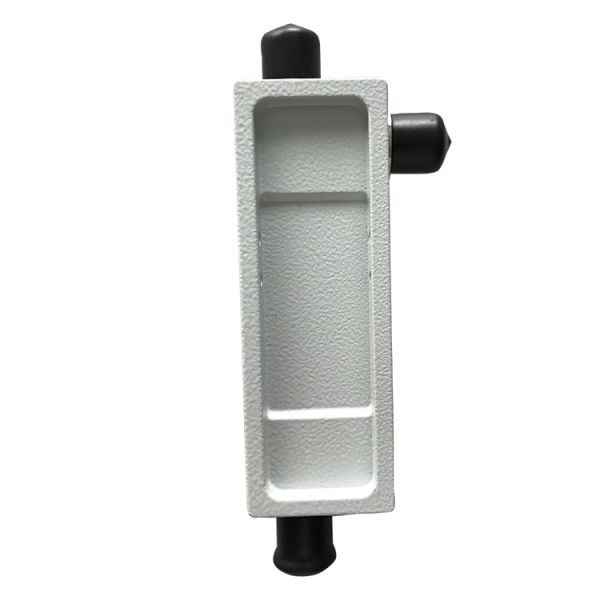

High Power grey color N Female 5db Coaxial RF Directional Coupler Wide Frequency Telecom 698-2700Mhz
High Power grey color N Female 5db Coaxial RF Directional Coupler Wide Frequency Telecom 698-2700Mhz
Specifications
Brand Name :
ZD
Model Number :
ZD-DCG-727-200-05F
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
Standard exporting cartons or as customer required
Delivery Time :
3-15 days
Frequency Range :
698-2700MHz
3rd Order IMD(dBc) :
≤-120/-140/-150@2X43dBm
Attenuation(698-2700) :
±0.8
Connectors Type :
DIN or N-Female
Impedance(Ω) :
50
Average Power(W) :
≤200
Description

High Power grey color N Female 5db Coaxial RF Directional Coupler Wide Frequency Telecom 698-2700Mhz

Product description

Directional couplers are used in a wide variety of applications and can satisfy almost any requirement for sampling incident and reflected microwave power conveniently and accurately with mininal disturbance to the transmission line. Directional couplers are mainly used in mobile communication and broadcast systems, or as a measuring device for coupling out signals for monitoring they are the key components in in-building systems. The lightweit design allows easy attachment to a wall using the supplied bracket.

Packaging & Delivery

Packaging Details: Box package

Delivery Time: Shipped in 10-15 days after paymentHigh Power grey color N Female 5db Coaxial RF Directional Coupler Wide Frequency Telecom 698-2700MhzHigh Power grey color N Female 5db Coaxial RF Directional Coupler Wide Frequency Telecom 698-2700MhzHigh Power grey color N Female 5db Coaxial RF Directional Coupler Wide Frequency Telecom 698-2700Mhz

Electrical Specifications:
Coupling(dB) 5 6 7 8 10 12 15 20 25 30 35 40
Attenuation(698-2700) ±0.8 ±1 ±1.2 ±1.2 ±1.2 ±1.5
Insertion Loss(dB) ≤2.1 ≤1.65 ≤1.3 ≤1.1 ≤0.75 ≤0.6 ≤0.4 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Frequency Range 698-2700MHz
VSWR ≤1.22
Directivity(dB) ≥20 ≥18
Average Power(W) ≤200
3rd Order IMD(dBc) ≤-120/-140/-150@2X43dBm
Impedance(Ω) 50
Connectors Type DIN or N-Female
Operating Temperature(℃) -20~+55
Application For Indoor or Outdoor Use
Finish Black Plated
