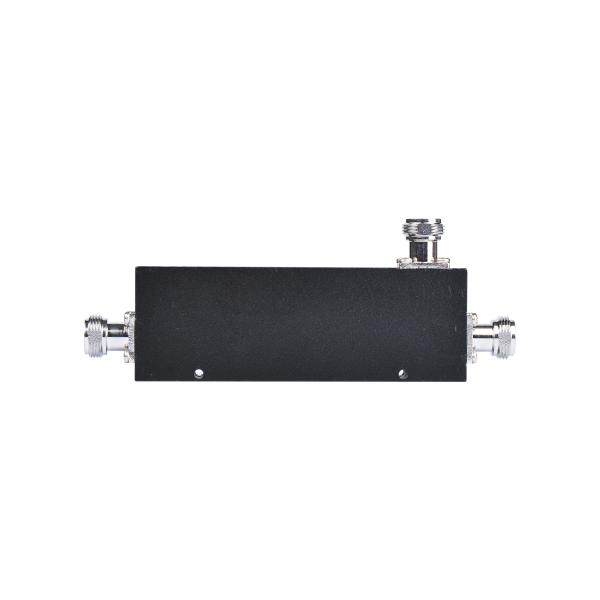

300-500MHz N Female 5/6/7/10/15/20/30/40dB Coaxial RF Directional Coupler
300-500MHz N Female 5/6/7/10/15/20/30/40dB Coaxial RF Directional Coupler
Specifications
Brand Name :
ZD
Model Number :
ZD-DC-300/500-NF
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
shipped in 25days afterpayment
Packaging Details :
Standard Packing
Frequency :
300-500MHz
V.S.W.R :
≤ 1.25
Connector :
N/Female
Impedance :
50Ω
Power :
200W Average
Annotation :
Indoor/Outdoor Use
Description

300-500MHz N Female 5/6/7/10/15/20/30/40dB Coaxial RF Directional Coupler


Feature
l Wide Frequency Range
l Excellent Coupling Flatness
l High Directivity / Isolation
l Cavity structure, High power handing
l Low Insertion Loss, Low VSWR

Specification

Part No.ZD-DC-300/500-NF
Coupling(dB)56710 15203040
In-band Ripple(dB)±0.8±0.8±0.8±1.0 ±1.0±1.0±1.0±1.0
VSWR≤1.25
Insertion Loss(dB)≤2.0≤1.6≤1.35≤0.7 ≤0.4≤0.3≤0.2≤0.2
Isolation(dB)≥25≥26≥27≥30 ≥35≥40≥45≥50
PIM3(dBc)≤-150@ + 43dBmx2
Impedance(Ω)50
Power Rating(W)200
ConnectorN-F
ApplicationOutdoor, IP65
Temperature Range(°C)-30~+55


300-500MHz N Female 5/6/7/10/15/20/30/40dB Coaxial RF Directional Coupler
About US
ZD Telecom was newly established in Sep. 2009 by its founder who had been working in one of the earliest companies in the wireless/RF industry of China for more than 10 years of R&D and management after graduation from the best in China of“ University of Electronic Science & Technology of China”,with a back up of a group of veteran engineers cherishing the value of “professional(attitude) & excellent(products)”.

We are true manufacturer with a facilities of 2000㎡ and 150 heads of working force, not any of trading or solution provider companies, specializing in products of coverage/enhancement/optimization for wireless network and previously have been working as a role of OEM for some other big names of telecom equipment suppliers. We now step forward to the up front and devote to adheres to the business strategy of “customer oriented and continuous improvement”, and closely keeping to the principle of customer satisfaction, quality first, competitive price, fast delivery and service in individual place.
