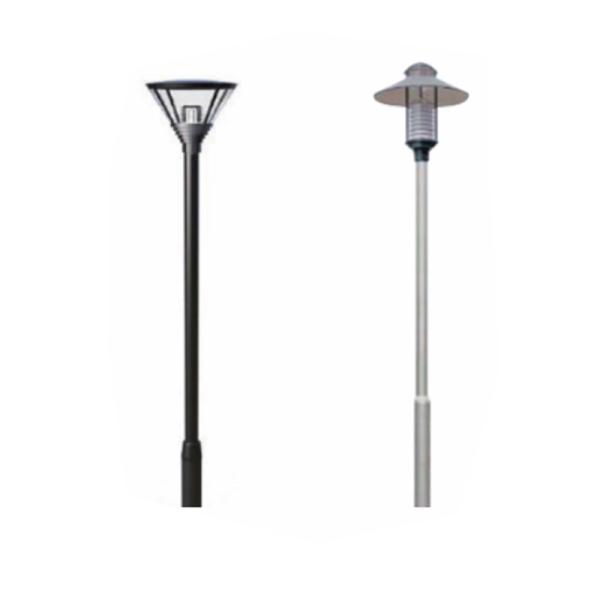

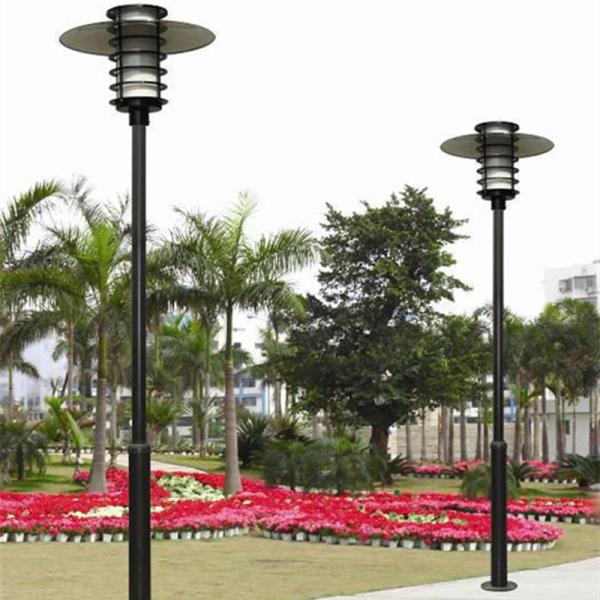

Embellished Antenna outdoor for Road lamp street lighting 800-2500MHz
Embellished Antenna outdoor for Road lamp street lighting 800-2500MHz
Embellished Antenna outdoor for Road lamp street lighting 800-2500MHz
Embellished Antenna outdoor for Road lamp street lighting 800-2500MHz
Specifications
Brand Name :
ZD
Model Number :
ZD-SLA-825-6/13NF
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs one month
Delivery Time :
3-15 days
Packaging Details :
Standard exporting cartons or as customer required
Frequency range(MHz) :
800-2500
Gain(dBi) :
6-8/13
Connector :
N-F
Input Impedance(Ω) :
50
Lighting Protection :
DC Ground
Operating Temperature(°) :
-40~+60
Description

Popular style 800-2500MHz Street Light Antenna outdoor

Application
1) Long distance Signal Transmission
2) Wireless Bridge
3) Widely used for residential area and square

Good Performance and Running characteristic

Electrical parameters
Frequency range(MHz) 824-960/1710-2500 824-960/1710-2500
Gain(dBi) 6-8 13
VSWR ≤1.5 ≤1.5
Polarization V
Electrical Head Angle(°) 9~15 9~15
Input Impedance(Ω) 50
Horizontal Beamwidth (°) 360 360
Vertical Beamwidth (°) 36-22/23-16 36-22/23-16
Input Power per Port(W) 50
Connector N-Female
Lighting Protection DC Ground
Mechanical parameter
Antenna Dimensions(mm) 76*1900 76*1850
All Dimention(mm) 3080-3100 3050-3080
Cover Material Fiberglass
Weight(kg) 5.2 5.2
Installation Embed to cage installation
Rated Wind Velocity(m/s) 60
Operating Temperature(°) -40~+60
