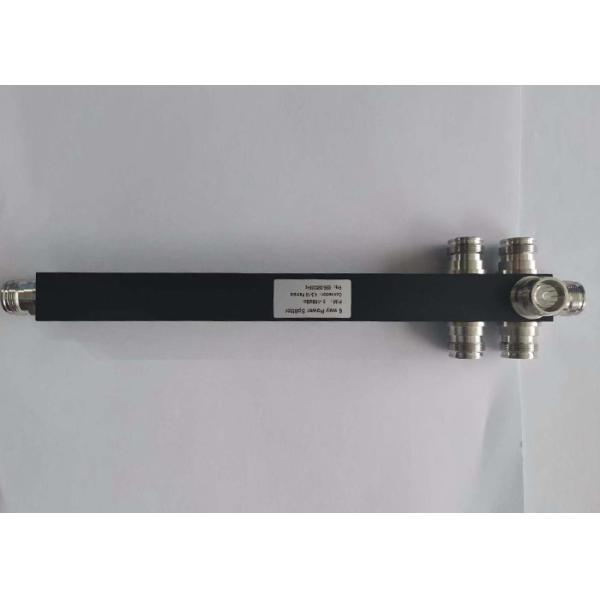

698-3800MHz Black Square 4.3-10 Mini Din Female 6 Way Power Divider Splitter
698-3800MHz Black Square 4.3-10 Mini Din Female 6 Way Power Divider Splitter
Specifications
Brand Name :
ZD
Model Number :
ZD-PSF-738-300-06MF
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Packaging Details :
Standard packing
Frequency Range(MHz) :
698-3800
VSWR :
＜1.25
Insertion Loss :
≤3.5dB
PIM3 :
＜-150@2×+43dBm
Impedance :
50 Ohm
Connector :
4.3-10-F
color :
Black
shape :
square
Description

698-3800MHz Black Square 4.3-10 Mini Din Female 6 Way Power Divider Splitter

Product Introduction

Power Divider Antena (also power splitters and, when used in reverse, power combiners) are passive devices used in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit.Power dividers are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined.HTmicrowave offers 2-way,3-way and 4-way configurations fitted with N,7/16 DIN-Female or SMA-Femal connectors at all ports.Indoor or Outdoor use.This RF Splitter Series provide a low loss,same power split at all output ports while maintaining excellent amplitude and phase balance.Mainly used in repeater or base station to split,also can be used in indoor distribution system.Features of our products are high isolation,alternate connector configurations,rack mounting,high power combining and weatherproofing.You can choose the best product solutions for your specific needs here.

Electrical Specifications:

Power Divider Splitter
Frequency Range 698~960MHz 1427-3800MHz
Split Way 2way 3way 4way 6-way 2way 3way 4way 6-way
VSWR ≤1.25 ≤1.25
Insertion Loss(dB) ＜3.5 ＜5.5 ＜7 ＜9 ＜3.5 ＜5.5 ＜7 ＜9
Power Handling(W) 300 300
PIM(dBc) ＜-150@2×+43dBm ＜-150@2×+43dBm
Impedance(Ω) 50 50
Connectors 4.3-10-F 4.3-10-F
Operating Temp.(℃) -25~+65 -25~+65
Application Outdoor,IP65 Outdoor,IP65
Colour Black Black

Feature:

1. Wide Frequency band for 2G/3G/4G, DCS/GSM/WCDMA/PCS/UMTS and LTE solutions

2. Low PIM Passive Intermodulations

3. Low Insertion Loss & VSWR

4. Indoor & Outdoor Applications, IP65 Waterproof

5. Long Quiality Warranty: 1 Year

698-3800MHz Black Square 4.3-10 Mini Din Female 6 Way Power Divider Splitter
